JEST TV UNIT
THERE IS A TV
Designed By Tanju Ozgin

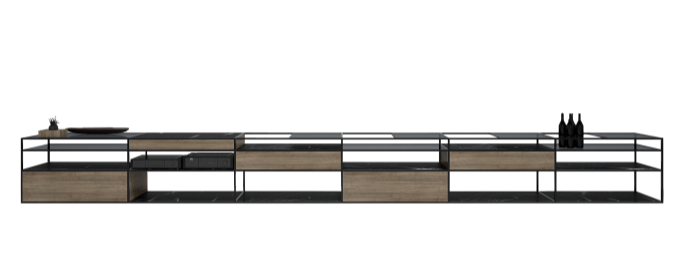

Jest has a unique architectural statement with partitioned structure, which is a storage and display area. Jest TV unit is a functional product as an entertainment unit or a sideboard that facilitate your daily life and decorative objects.
It has a unique architectural statement with partitioned structure, which is a storage and display area. In Jest TV design, the perfect harmony of wood and metal emerges.
With its elegant appearance and rhythmic shelves Jest, can be used both in private and corporate spaces. The metal structure that forms the body is combined with marble, glass and veneer shelves to become a multipurpose storage unit. Due to flexibility in the array, the TV unit can vary as sideboard and/or storage units
INFORMATION
ENVIRONMENT
Indoor
MATERIAL
- Metal - Marble - Glass -Veneer
DOWNLOADS
↓ Data Sheet
↓ 2D-Files.zip
↓ 3D-Files.zip

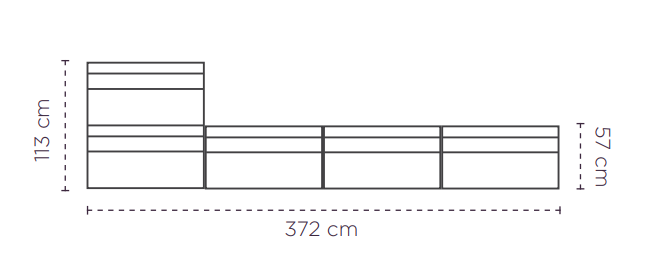

DIMENSIONS
13 Size available
DIMENSION - FRAME
| Modules | 1 short module | 2 short module | 3 short module | 4 short module | 5 short module | 1 long module | 1 short module | 2 short module | 3 short module | 2 long module | 2 short module | 3 short module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cbm (m3) | 0,36 | 0,71 | 1,05 | 1,78 | 1,37 | 0,69 | 1,36 | 2,00 | 2,66 | 1,36 | 2,35 | 3,26 |
| Weight (kg) | 18 | 18 | 18 | 18 | 18 | 23 | 23 | 23 | 23 | 23 | 23 | 23 |
DIMENSION - DRAWER
| BIG DRAWERS | BIG SIZE | MIDDLE SIZE | SMALL SIZE | HALF GLASS SHELF 447x517 | SHELF 897x517 |
|---|---|---|---|---|---|
| Cbm (m3) | 0,22 | 0,18 | 0,10 | 0,19 | 0,37 |
| Weight (kg | 16 | 14 | 12 | 7 | 14 |
MATERIAL
MATERIALS - FRAME - METAL
Jest-TV is produced from 15x15mm square metal profile. Profiles are cut and welded together.
MATERIALS - DRAWER - VENEER
The wooden box made from veneer is pressed to the 12mm MDF. It is varnished by matte polyurethane lac. Concealed push-pull rail is used for drawers.
DRAWER MATERIALS - LACQUER
Lacquer box is made from 12mm MDF. it is covered with polyurethane primer filler and sandpapered. After having a Flat and smooth surface, polyurethane matte painting is applied and left for chemical hardening. Concealed push-pull rail is used for drawers.
SHELF MATERIALS - GLASS
- 8mm glass edges are beveled after cutting.
- Options: Clear, Smoky, Black Painted, White Painted, Sandy Clear
SHELF MATERIALS - MARBLE OPTIONS
8mm Marble is used as top-shelf. Edges are bevelled:
- Toros Black Marble
- Italian Carrara White Marble
