Sedus Stoll AG

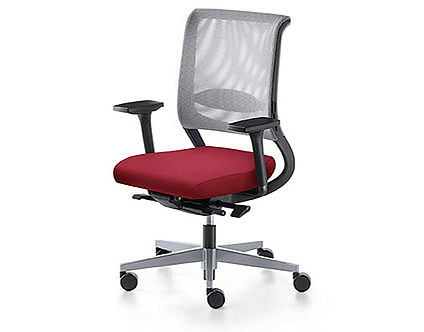

Sedus Netwin Swivel Chair

NETWIN SWIVEL CHAIR

Sedus Netwin Swivel Chair

NETWIN SWIVEL CHAIR

Designed BY Michael Kläsener(Sedus Design Team)

Everything about netwin speaks of excellence – the design, the finish, the ergonomics.

And at a price that is attractive to customers who are new to the Sedus range of seating furniture. At the same time, netwin fits smoothly into any surroundings, both visually and functionally.

Netwin owes its name to the double mesh membrane in the backrest, which radiates an abundance of lightness whilst also providing an impressive level of comfort.

Sedus Netwin Swivel Chair

Improved ergonomics for relaxed and efficient working.

features

ADJUSTABLE ARMRESTS

With height adjustment or 4D adjustment used too many times for altering height, depth and width

Sedus Netwin Swivel Chair

PARTICULARLY PRACTICAL FOR MULTI-USER WORK-STATIONS

The patented spring force quick adjustment is simply activated with a handle

Sedus Netwin Swivel Chair

SUITABLE SEAT SIZE

The seat cushion can be pushed forwards or backwards, in order to provide just the right amount of support for the legs of the individual and thus ensure ergonomically correct sitting

Sedus Netwin Swivel Chair

THE RIGHT HOLD

Not too hard, not too soft: The backrest pressure can be adjusted according to bodyweight. Thus, the backrest offers good support without dominating

Sedus Netwin Swivel Chair

INTUITIVE ADJUSTMENT

The controls are intuitive to use, conveniently positioned, clearly marked and functionally formed, in order to make individual adaptation particularly easy

Sedus Netwin Swivel Chair

INFORMATION

WARRANTY

5 years

USER WEIGHT

Recommended for user weights up to 110 kg

MODEL COLOUR

Black

WEIGHT

14.88 kg


MATERIAL

- Metal(Aluminium+Steel): 29.1%
- Plastic: 56.3%
- Other Material: 14.6%

Sedus Netwin Swivel Chair
Sedus Netwin Swivel Chair

DIMENSIONS

- Height: 400-520cm
- Width: 470cm

SEAT DIMENSIONS

- Seat Width: 380-440cm
- Seat Height: 200-300cm

RECYCLABLE MATERIAL

RECYCLABLE CONTENTKG%
Recycling content (post-consumer)2.9419.60
Recycling of materials5.2434.95
Thermal recycling9.7665.05

SEAT

- Anatomically shaped seating surface with pelvis support, seat hollow and rounded front edge of seat
- Shaped foam (polyurethane foam)
- Upholstery thickness 50 mm, width 470 mm, depth 400 mm
- Optional sliding seat with seat depth 380 - 440 mm

BASE

-  Basic base made of plastic (polyamide, glass-fibre reinforced), black, castors with 50 mm diameter
-  Optional aluminium base, powder-coated, black, white aluminium or polished aluminium, castors with 65 mm diameter
-  Hard or soft castors

SEAT HEIGHT-ADJUSTMENT

- Gaslift with mechanical depth-springing: reinforced cushioning of the body‘s weight even in the lowest seat position, height adjustment 400 - 520 mm
- Optional gaslift for infinitely variable height adjustment 400 - 520 mm
- Optional gaslift for counter design with footring

BACKREST

- Black plastic frame made of fibreglass-reinforced polyamide, covered with woven-knit membrane, air and moisture permeable, which guarantees an always perfect reshaping of the double net
- Lumbar adjustment mechanism (height adjustment 70 mm) integrated in the backrest frame and double membrane; automatic depth adaptation due to weight-dependent sinking of the body into the double membrane

ARMRESTS

- Height-adjustable plastic armrests (3611) in black, height adjustment 100 mm (200 - 300 mm), clear width 470 - 490 mm
- Optionally available 4D adjustable armrests in black with Softtouch pads, aluminium support in black (3414) or polished (3484), height adjustment: 100 mm (185 - 285 mm), inside width 450 – 500 mm with parallel armrests, inside width 360 – 510 mm by swivelling the pads (distance between armrest front edges)

STANDARDS/ CERTIFICATES

-  GS label by TÜV Rheinland LGA Products GmbH / DIN EN 1335
- Ergonomics Certificate of TÜV Rheinland LGA Products GmbH
- Tested for harmful substances by TÜV Rheinland LGA Products GmbH
- QUALITY OFFICE quality seal
- GREENGUARD certified
- AGR quality seal - Healthy Backs Campaign
- Awarded BLAUER ENGEL
- If product design award 2007

OPTIONSSTANDARDOPTIONAL
BackrestHeight-adjustable lumbar support
Quick backrest pressure adjustment
No optional
ArmrestsHeight-adjustable plastic armrestsWithout armrests
4-D armrests with soft-touch covers
Seat mechanism“Similar” mechanism“Similar” mechanism with seat tilt adjustment
Sliding seat
Seat height-adjustmentGaslift with mechanical depth-springing
Gas lift mechanism
BasePlastic baseAluminium base, powder-coated black,Aluminium base, powder-coated white aluminium,Aluminium base, polished
Specification
Hard castors for soft floors

Soft castors for hard floors

THE PERFECT ERGONOMICS REDUCES PRESSURE AND FREES YOUR MIND

Sedus netwin combines the transparent lightness of the mesh look with the comfort of a fully upholstered chair. The one-piece, generously proportioned backrest frame provides an elegant solution. The double membrane, which is made from patented high-tech fabric, is elaborately framed. This technically and visually impressive design ensures high sitting comfort and optimal distribution of weight for users of all sizes.

Sedus Netwin Swivel Chair

DYNAMIC SITTING

With its instant adjustment of spring force, the Sedus “Similar” mechanism holds and supports your back whichever way you move, and at the same time prevents the annoying “shirt-pulling” effect. The extreme opening angle of the backrest of up to 32° enables various comfortable sitting positions, reclining almost to a lying position. Even in the lowest sitting position, the bodyweight is absorbed by the gas lift mechanism for height adjustment with mechanical depth springing, thus reducing stress on the back.

Sedus Netwin Swivel Chair

COLLECTION

Sedus Netwin Swivel Chair
Polished Aluminium Base
Sedus Netwin Swivel Chair
White Aluminium Base
Sedus Netwin Swivel Chair
Without Armrest Plastic Base
Sedus Netwin Swivel Chair
Variety of Combination
Sedus Netwin Swivel Chair
Variety of Combination
Sedus Netwin Swivel Chair
140 Different Seat Colors and Variety of Combination
Sedus Netwin Swivel Chair
140 Different Seat Colors and Variety of Combination
Sedus Netwin Swivel Chair
140 Different Seat Colors and Variety of Combination

FEATURES

- Similar mechanism with quick-action tension control
- Gaslift with mechanical depth-springing
- Plastic base
- Backrest with membrane cover
- Height-adjustable plastic armrests
- Height-adjustable lumbar support
- Upholstery fabric Atlantic ·
- 10-year availability of spare parts
- 5-year guarantee (see Sedus Warranty Terms)

PRODUCTION

- Covers not glued into place
- CFC-free foams
- Galvanisation with chrome III
- Use of certified upholstery fabrics in accordance with OEKO-TEX Standard 100
- Produced using 100 % green electricity
- Produced in accordance with EMAS III Environmental management
- Produced in accordance with DIN ISO 14001 Environmental management
