Lombardo, S.r.l.

Lombardo Ago Applique U&D Wall Light

AGO APPLIQUE U&D WALL LIGHT

Lombardo Ago Applique U&D Wall Light

AGO APPLIQUE U&D WALL LIGHT

Designed By Michele Pellegrini

Heat tempered and silk-screen printed glass. Polycarbonate base and techno polymer wall fixing bracket. Including IP68 quick gel connectors for wiring

Lombardo Ago Applique U&D Wall Light
Lombardo Ago Applique U&D Wall Light

Suitable for wall installation, also for outdoor use. Body made of EN-6026 anodized aluminum, highly resistant to oxidation thanks to anodizing treatment.A4 stainless steel nuts and bolts. LED AC Direct, phase cut dimmable.

INFORMATION

COLORS

- Grey Anodized Alluminum
- Black Anodized Alluminum
- Brown Anodized Alluminum

Lombardo Ago Applique U&D Wall Light
Grey Anodized
Lombardo Ago Applique U&D Wall Light
Black Anodized
Lombardo Ago Applique U&D Wall Light
Brown Anodized
Lombardo Ago Applique U&D Wall Light

DIMENSIONS

- Back Height: 95cm
- Front Height: 134cm
- Diameter: 50cm
- Length: 74cm

COLOR TEMPERATURE

- 4000K
- 3000K, lm -5%
- 2700K, lm -5%

OPTICS

Diff. 25° 40° 65°

DIFFUSER TYPE

Serigraphed glass

ENERGY PERFORMANCE

A++

LAMP TYPE

LED

WATT

 10

CRI

>80

LUMENS

 1200

BIOLOGICAL RISK

RG0

INSULATION CLASS

CL.I

TYPE OF PROTECTION

IP 66

POWER SUPPLY

 220 - 240 v

REAL LUMEN

996

RESISTANCE BREAKAGE

IK 07 2J xx5

CERTIFICATION

CE

PIECE PER PACKAGE

4 pezzo

PRODUCTION

Made in Italy

PRODUCT CODE

LL126204

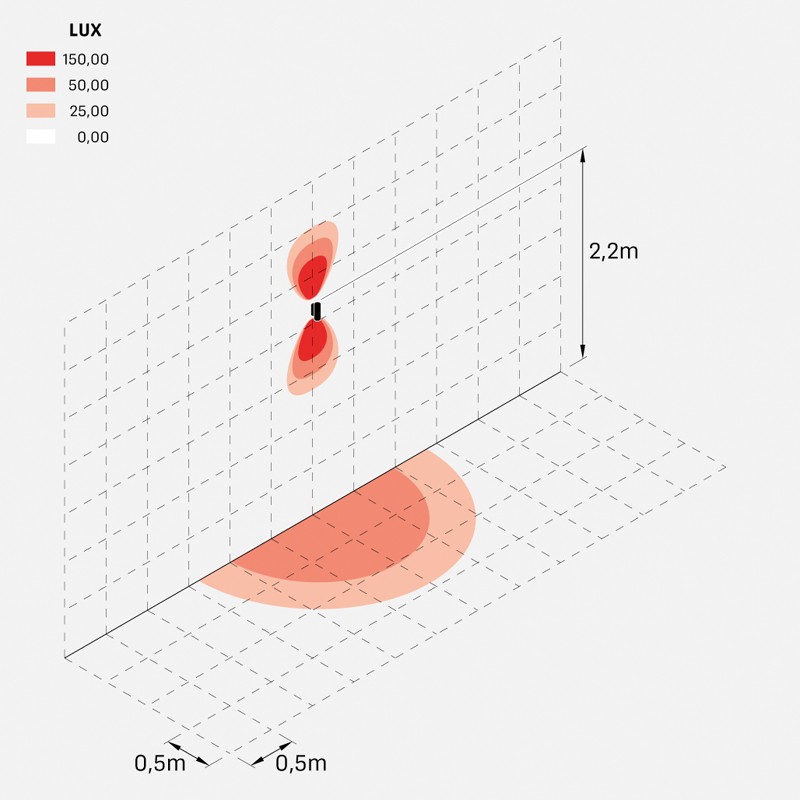

LIGHTING SIMULATIONS

Lombardo Ago Applique U&D Wall Light
Lombardo Ago Applique U&D Wall Light
Lombardo Ago Applique U&D Wall Light
Lombardo Ago Applique U&D Wall Light
