RAY BOLLARD II

SgLighting Ray Bollard II

RAY BOLLARD II

Designed By Christian Hvidt

Ray Bollard II is designed as a long-term solution for paths, parks or landscapes, and combines energy savings, durability and precise light distribution that gives safe, glare-free environments.

Simple design blends in with all surroundings. The light is directed where it is needed without glare and without air pollution. IK10 vandal-resistant and IP54.

SgLighting Ray Bollard II

INFORMATION

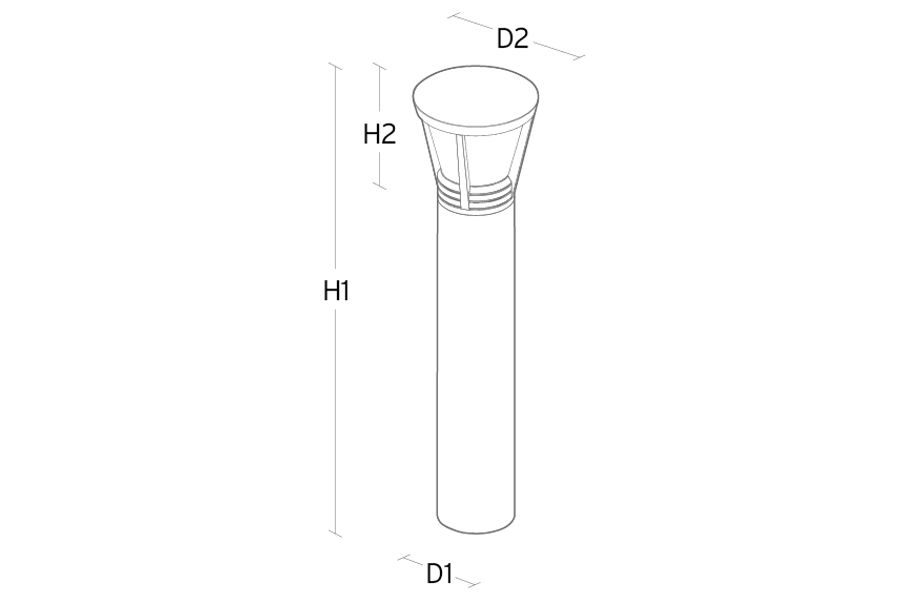

DIMENSIONS

- Diameter : 260 cm
- Weight: 12.7

SgLighting Ray Bollard II

DIMMING

- Luminaire class: Class II
- Ingress protection rating: IP54
- Vandal class: IK10
- Ta nominel: Ta=25°C

SgLighting Ray Bollard II

COLOR

Grey

LIGHT TECHNIC

- Version: Asymmetric
- Type of light source: LED
- Wattage: 6W
- System wattage: 6W
- Luminous flux: 490lm
- Efficacy: 82 lm/W
- Voltage: 230V
- Colour temperature: 3000K
- Colour rendering (CRI): Ra>70
- MacAdams factor: SDCM: 4
- Lifetime: L80/B10>100,000
- Light distribution: Asymmetric
- Optic: Lens

ENERGY APPROVAL

- Energy class: A++
- Approval: CE

OPTICS

- PMMA Polymethyl
- Methacrylat

WARRANTY

10 Years/5 Years

PACKAGE DIMENSIONS

900 x 260 x 900

ARTICAL CODE

8246094380

EAN

5703821177290

MOUNTING CONNECTIONS

- Mounting/Connection Mounting: Onto surfaces with flange
- Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85
