LAKESHORE SERIES BENCHES
LAKESHORE SERIES BENCHES
The Lakeshore Series Benches are the perfect blend of metal and wood, delivering a unique look to your site. Lakeshore Benches can be specified to use Ipe hardwood or recycled plastic wood (polywood).
There are many different options and styles available for download below.
INFORMATION
MATERIALS
- Seat slats are offered in Ipe hardwood or Recycled Plastic lumber
- End units are steel bar
- 1 5/16″ support tubes at top and bottom
MATERIAL LIST
BACKED STANDARD ARM BENCH
- Seat Straps - Ipe Wood Slats
BACKED ROUNDED ARM BENCH
- Surface Mount Plates 1/4" x 1 1/2" Stainless
BACKED MOUNT BENCH
- Seat Straps - Ipe Wood Slats
- Supports - 2 3/8" Steel Tubing with
3/8" x 3" Steel Flat Bar
- Mounting Plate - 8" x 5/16" Thick Steel Plate
- Mounted with Six 1/2" x 4-5" Stainless Steel
Anchor Bolts (Customer Supplied)
MODELS
BACKED STANDARD ARM BENCH
- Ls-001-6’ Backed Standard Arm Bench
-Ls-005- 8’ Backed Standard Arm Bench
DIMENSION
- 6′ (LS-001): 26″x34″x72″
- 8′ (LS-005): 26″x34″x96″
BACKED ROUNDED ARM BENCH
- Ls-001-6’ Backed Standard Arm Bench
DIMENSIONS
- 6′ (LS-002): 26″x34″x72″
- 8’ (LS-006): 26″x34″x96″
BACKLESS BENCH
- LS-003- 6’ Backless Bench
- LS-007- 8’ Backless Bench
DIMENSIONS

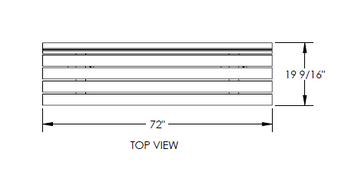

- 6’ (LS-003): 26″x24″x72″
- 8’ (LS-007): 26″x24″x96″
BACKED MOUNT BENCH
LS-004- 6’ Backed Mounted Bench
DIMENSIONS
6’ (LS-004): 26″x34″x72″
