Palmer Hamilton, LLC

Palmer Hamilton Booths

BOOTHS

Palmer Hamilton Booths

BOOTHS

Mobile booths, fixed booths, banquettes and convertible bench tables to create your dining, lounge or social space.

HIVE BOOTHS

Hive modular furniture is designed to create flexible spaces for dining, collaboration, communication and concentration. A versatile system to configure upholstered booth and banquette systems in many ways.

Palmer Hamilton Booths
Palmer Hamilton Booths

BANQUETTES

Create private or semi-private dining spaces with Hive furnishings or Chariot™ booths. Create a unique design to flow with your environment

CONVERTIBLES

The 30 series convertible benches/tables transform from a single-sided table to a comfortable bench to a full-size cafeteria table. Great for cafeteria's, classrooms or auditoriums.

Palmer Hamilton Booths

INFORMATION

CHARIOT™ MOBILE/FIXED BOOTHS

- The need for dining spaces to serve multiple roles requires dining furniture to be more mobile, flexible, easy to reconfigure and store. Existing furnishings do not accommodate that very well, that is until today. Introducing a revolutionary mobile, fold-able booth system called CHARIOT™. The mobile CHARIOT™ Go Bench features a seat that folds up and built-in casters allow the whole bench to be wheeled away for easy reconfiguration or storage.
- The CHARIOT™: Go Table features built-in casters that when stationary is rigid and does not move—the casters are activated by picking up the end of the table allowing it to be easily moved. The CHARIOT™ tops feature an antimicrobial, antifungal and highly durable urethane “SMARTedge” that will not allow liquids to gather or seep into the seam between the laminate and the edge. - Available in fixed, folding and flip-top versions. U.S. Pat. No. 9,370,265 B2

FIBER GLASS COLOR OPTIONS - STANDARD

- Obsidian - Gunmetal - Lapis - Cappuccino - Dusk - Steel Grey

Palmer Hamilton Booths

DIMENSIONS OF MOBILE BOOTH AND FIXED BOOTH

MOBILE BOOTHPRODUCT DIMSPRODUCT WEIGHT
SHIPPING DIMSSHIPPING WEIGHTFREIGHT CLASS
42”43.25”W x 24”D X38”H130 lbs54”W x 48”L x 44”H445 lbs125
48”49.5”W x 24”D X38”H144 lbs64”W x 42”L x 44”H450 lbs125
60”61.25”W x 24”D X38”H174 lbs64”W x 42”L x 44”H540 lbs125
FIXED BOOTHPRODUCT DIMSPRODUCT WEIGHTSHIPPING DIMSSHIPPING WEIGHTFREIGHT CLASS
42”43.25”W x 66.5”D X38.5”H362 lbs89”W x 64”L x 32”H885 lbs100
48”49.5”W x 66.5”D X38.5”H382 lbs89”W x 64”L x 32”H924 lbs100
60”61.25”W x 66.5”D X38.5”H422 lbs90”W x 64”L x 32”H1004 lbs100
Booth Mover27”W x 64:L x48”H200 lbs---
Palmer Hamilton Booths
Palmer Hamilton Booths

DOWNLOADS

↓ Product Brochure
↓ Product Specs

CHARIOT TM GO BOOTH

CONSTRUCTIONS

- Seat and back constructed of molded polystone fiberglass
- Upholstered seat and back optional. Upholstered back required 2 year of fabric without a pattern and 2 ½ yards of fabric with a pattern, Upholstered seat requires 3 yards of fabric without a pattern and 3 ½ yards with a pattern. Construction – ½” plywood.
- Laminated back construction – ¾ “ particle board. Total thickness is 5/8”.
- Laminated option- When choosing your laminate color from the 2016 Wilsonart TM brochure, please note that Palmer Hamilton pricing reflects non-premium Wilsonart TM laminates ending in “-38” and “-60”.

Palmer Hamilton Booths

FEATURES

- SmartEdge - SmartEdge is a “gorilla though” poured urethane edge that is not only rugged, but 60%of the material consist of renewable bio-based resource. SmartEdge has antimicrobial additive which include antibacterial and antifungal properties. Black is standard. Other colors available at an upcharge (SmartEdge standrd on Aero tables with Chariot TM set.)
- EdgeGuard TM - Sprayed-on polyuria edge treatment that provides superior resistance to moisture, eliminates unsanitary food traps, and is extremely tamper-resistant. Edges stay sealed, preventing peeling and chipping. Durable for many years of use. Black is standard. Other colors available at an upcharge. (EdgeGuard TM standard on booth’s laminated back panel.)
- Gas spring assist mechanism- ease of folding operation with a controlled open rate. No rub from bench to back when folded or stored.

Palmer Hamilton Booths

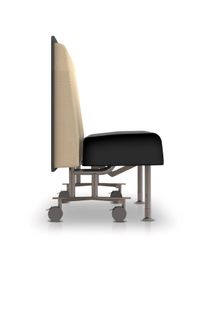

Go Booth
Palmer Hamilton Booths
Go Booth

SPECIFICATIONS CHARIOT TM GO BOOTH

- Frame – 1-1/4” OD 14Ga tube structure in black or metallic silver.
- Casters - 3” diameter with lock.
- Weight capacity 500 lbs. per bench.
- Available lengths – 42”,48” and 60”
- Seat height – 18”
- Seat depth – 17 5/8 ”
- Total depth – 24”
- Seat back height
– 38”- Folded depth
– 16”- Available in single or set.

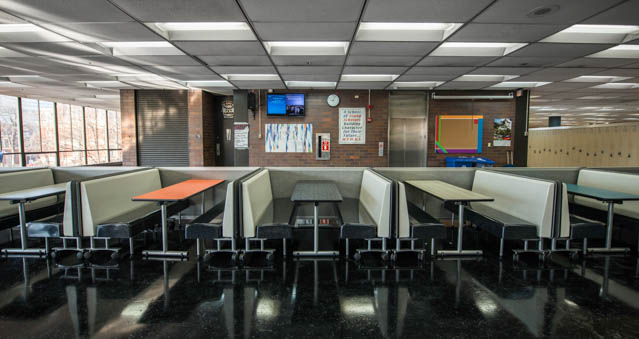

CHARIOT TM FIXED BOOTH

CONSTRUCTION

- Seat and back constructed of molded polystone fiberglass
- Upholstered seat and back optional. Upholstered back required 2 year of fabric without a pattern and 2 ½ yards of fabric with a pattern, Upholstered seat requires 3 yards of fabric without a pattern and 3 ½ yards with a pattern. Construction – ½” plywood.
- Laminated back construction – ¾ “ particle board. Total thickness is 5/8”.
- Laminated option- When choosing your laminate color from the 2016 Wilsonart TM brochure, please note that Palmer Hamilton pricing reflects non-premium Wilsonart TM laminates ending in “-38” and “-60”.

FEATURES

- EdgeGuard TM - Sprayed-on polyuria edge treatment that provides superior resistance to moisture, eliminates unsanitary food traps, and is extremely tamper-resistant.
- Edges stay sealed, preventing peeling and chipping. Durable for many years of use. Black is standard. Other colors available at an upcharge. (EdgeGuard TM standard on booth’s laminated back panel.)

Palmer Hamilton Booths
Fixed Booth

SPECIFICATIONS

- Frame - 14Ga structural tube in black or metallic silver
- Legs and footing – 14Ga Steel.
- Available lengths – 42”,48” and 60”
- Seat height – 18”
- Seat depth –17 5/8 ”
- Total Depth – 42FB: 43.25” x 66.5”, 48FB: 49.50” x 66.50”, 60FB: 61.25’” x 66.50”
- Seat back height – 38.50”
- Available in single or set.
