INOX-BOX

INOX-BOX

The Inox-Box programme is a storage system designed for work areas which require a space for storing personal belongings.

Dynamobel Inox-box
Dynamobel Inox-box

With a clean-cut aesthetic which brings personality to the range, these lockers possess the necessary balance between functionality and classic design for them to last over time, facilitating their integration into any environment.

These characteristics result in a practical, modern, unique end product. The possibility of combining different modules into a single assembly without visible joins, opening up multiple options, means that the Inox-box programme is ideal for those seeking storage space without overlooking aesthetics.

INFORMATION

STRUCTURE

Single side and rear shell made of folded, 0.8-mm thick, DCOA sheet steel per UNE-EN 10130 without visible joints.

Dynamobel Inox-box

BASE

Assembly consisting of a top sheet of stainless-steel and a sheet of 0.8-mm thick, painted steel underneath with interior reinforcement welded to the steel in order to house the rod and screw the shell. 1, 2, 3 or 4 modules can be joined together to form a single piece. Levellers operated from inside the storage unit.

Dynamobel Inox-box
Dynamobel Inox-box

FRONT

Folded, 0.8-mm thick, sheet steel. With stainless-steel hinges fi xed to the rod. The steel is degreased, washed and phosphated before being coated with epoxy powder and then polymerised. This powder coating complies with the current reaction to fi re standard UNE 23827-90.

Dynamobel Inox-box

TOP

Assembly consisting of a top sheet of stainless-steel and a sheet of 0.8-mm thick, painted steel underneath with rubber foam inside to dampen noise and provide greater strength. 1, 2, 3 or 4 modules can be joined together to form a single piece Fitted on the front and rear, separating the modules, is an assembly consisting of a stainless-steel inner rod and outer tube with a diameter of 20 mm that are screwed to the base and housed in the top of the upper module.

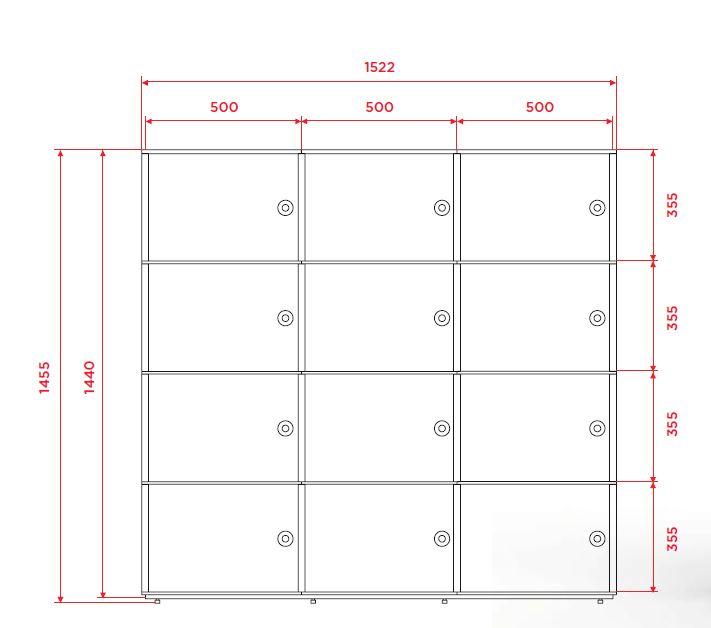

DIMENSIONS

- Height  : 1440 cm
- Total Height: 1455 cm
- Width : 1522 cm

Dynamobel Inox-box

WIDTH OF DRAWER

 500 cm

Dynamobel Inox-box

GALLERY

Dynamobel Inox-box
Dynamobel Inox-box
Dynamobel Inox-box
Dynamobel Inox-box
Dynamobel Inox-box
Dynamobel Inox-box
Dynamobel Inox-box
Dynamobel Inox-box
Dynamobel Inox-box

CONSTRUCTION

RANGE

- Minimum Assembly
- Maximum Assembly with blind skirting

Dynamobel Inox-box
MINIMUM ASSEMBLY
Dynamobel Inox-box
MINIMUM ASSEMBLY WITH BLIND SKIRTING

CONSTRUCTION (FOR A 9X5 ASSEMBLY)

- The modular expansion of Inox-Box is unlimited. When there are more than 4 columns, the assembly should be ordered using the criteria of start, extension or end modules, bearing in mind that there are skirting units for 2, 3 or 4 columns. - Combinations of more than 16 modules need to be assembled at destination (due to mobility issues).
