Loupi

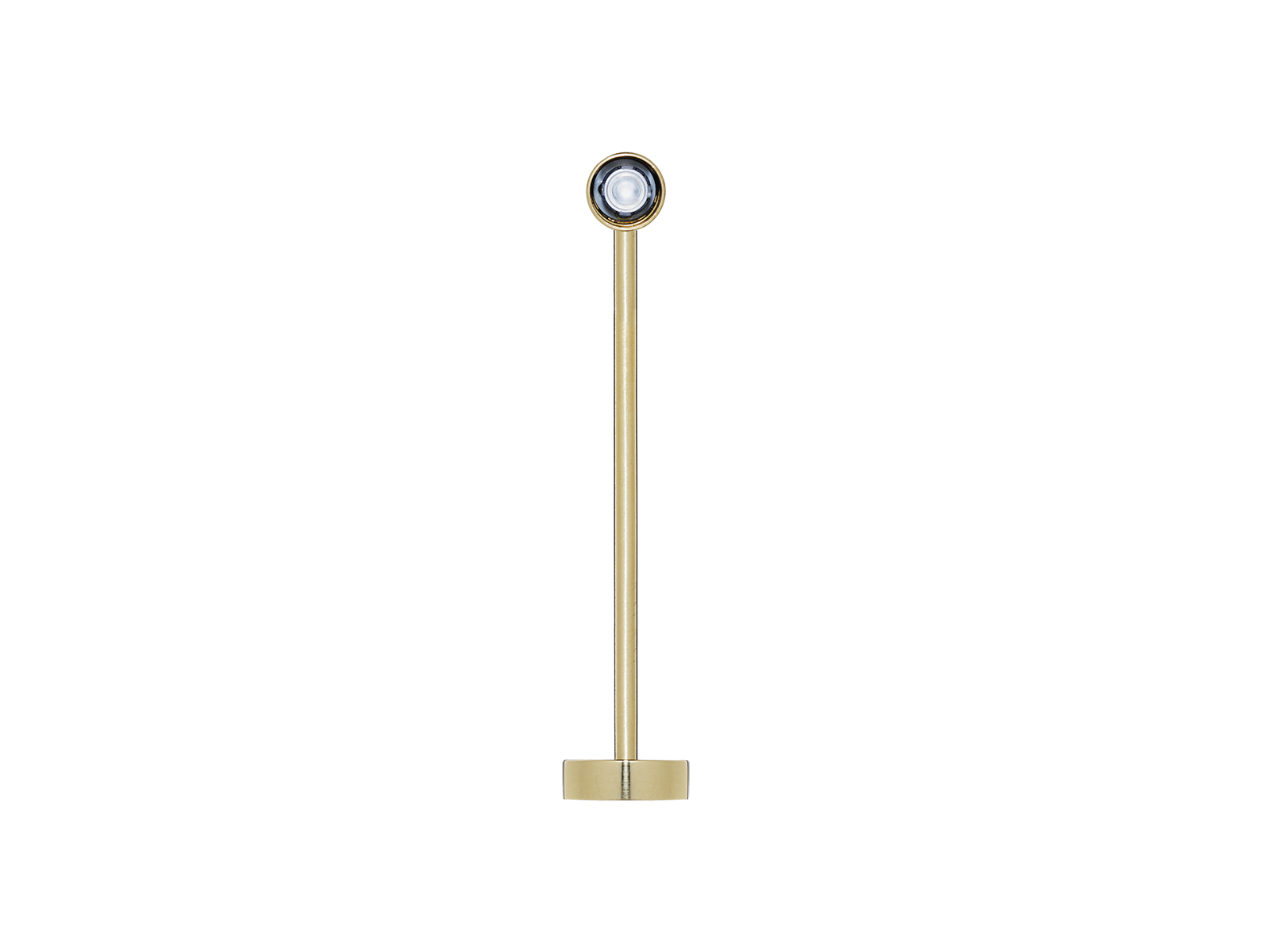

Loupi Micro Mast Spot Light

MICRO MAST  SPOT LIGHT

Loupi Micro Mast Spot Light

MICRO MAST SPOT LIGHT

This articulated mast spot is designed for precision lighting, and draws on our extensive miniaturization expertise. Its excellent performance and small, sleek design make it very easy to fit in shop windows, display units, and other small spaces.

INFORMATION

MECHANICAL

- Mast: diameter 5mm, standard height and Made-to-measure heights on request (Max: 400mm).
- Orientation: horizontal 320 ° & vertical 120 °.
- Horizontal locking adjustment by tightening screw cover.
- Operating temperature: -5 ° + 40 °.
- ROHS components.
- Interior use only.

Loupi Micro Mast Spot Light
Loupi Micro Mast Spot Light

OPTICAL

- Luminous flux according to Bining: 150 lumens.
- Color temperature: 2400 K to 5000 K.
- Service Range: 70% of nominal flux after 25,000 hours.
- Color Rendering Index: CRI 80 or CRI 90.
- PMMA acrylic lens, efficiency ~ 90%.
- Available degrees: 16 °, 24 °, 40 ° & Elliptic.

ELECTRICAL

- Constant current supply: 500 mA.
- Supply connection: Polarized output connectors.
- Power consumption to 1.5W max, excluding supply.
- Electrical Classification: Class III SELV device.

DOWNLOADS

↓ Technical Sheet
↓ Catalog

SPECIFICATION

- Electrolytic treatments possible.
- 3 year warranty.

DIMENSIONS

- Height: max 400mm
- Base: 26mm

Loupi Micro Mast Spot Light

COLORS

Loupi Micro Mast Spot Light
