Quinette Gallay Renaissance Moliere-Dos-Rond Theatre Seats
MOLIERE DOS ROND THEATRE SEATS
MOLIERE DOS ROND THEATRE SEATS
Molière forms part of our ‘acoustic’ range of concert and theatre seats, for venues that demand excellent acoustics and a high end finish.
Molière balances technical performance and design, with the gorgeous wood elements working in harmony to create a sophisticated aesthetic. This page shows the round backed version. The square back version, with its many variations can be seen on its own page.
INFORMATION

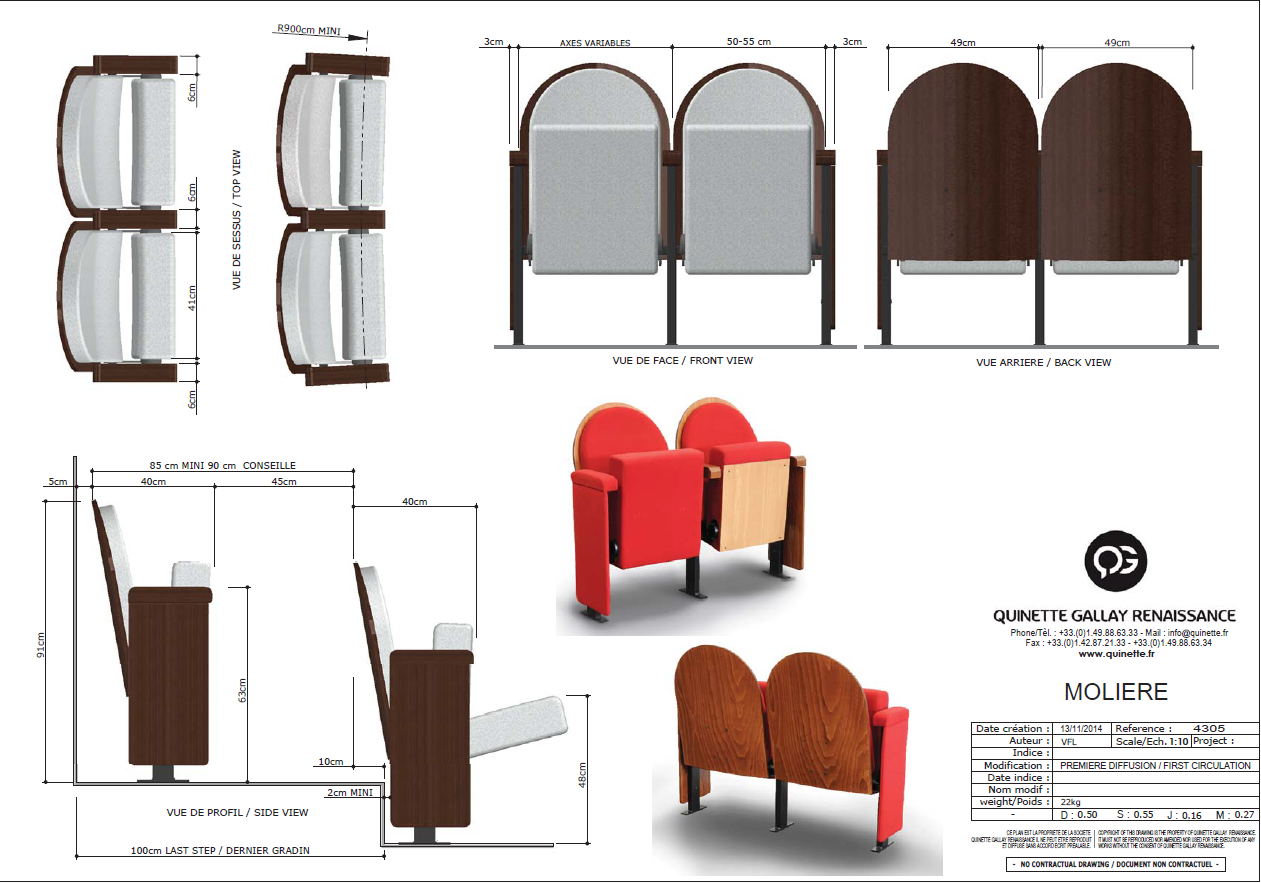

DIMENSIONS
Chair on lateral pedestals, with automatic tipping-up seat assembled in rows, with sharing armrest.
- Centre to centre : 50 cm to 55 cm
- Backrest height measured with flat floor: 91 cm
- Depth in closed position: 40 cm
OPTIONS
- Embroidered seat numbering on backrest or seat pan (font Roman block, 25 mm high), other fonts available upon request. - Embroidered end of row lettering (font Roman medium, 50 mm high) or aluminium plates (font Optima Medium, 25 mm Height), centred and screwed on the varnished end of row side panels (1 letter or figure in black, champagne or aluminium colour). Other options upon request. - Decorative stitches. - Wooden back shell fully covering the upholstery. - Upholstered backrest without varnished wooden shell. - Plywood seat shell, 9 mm thick, rotary cut, beech veneer, vertical grain, finished with 2 layers of polyurethane varnish on faces and edges. - Upholstered armrest and/or end of row. - Various wood veneers and stain available upon request. - Pedestals adapted to slope and counter slope (maximum 15% slope). - Removable seats in groups of two or individually. - Quick-release floor fastening. - End of row aisle lighting. - Metal parts colour can be customized (based on RAL range of colour) upon demand and quantity. - Acoustic perforation in the seat shell.
PARTS OF CHAIR
BACKREST
- Width: 49 cm
- Fully upholstered ergonomically
designed with good lumbar support
- Plywood curved structure, 13.5 mm
thick, moulded by high frequency press, overflowing the upholstered
element. Inside the back is a
screwed plastic case, to allow fitting
on foot.
- Panels in rotary cut, beech veneer,
vertical grain, finished with 2 layers
of polyurethane varnish, on faces
and edges.
- CMHR polyurethane foam, density
25 to 30 kg/m3 glued on a plywood
structure.
SEAT PAN
- Width: 41cm
- CMHR polyurethane foam, density 50 to 55 kg/m3, moulded onto a
metal support.
- Seat tipping by means concealed in
boxes, on either side of the seat and
assembled on the pedestal.
- Fully upholstered with rigid inner fire
retardant structure with metal insert
integrated during moulding process
ARMREST
- Width: 6 cm.
- Solid beech armrest, stained and
double coated polyurethane varnish.
- End of row shells in plywood and
solid wood, stained and double
coated polyurethane varnish
PEDESTAL
- Quinette Gallay “Bilboquet” tipping system, allowing swift and tool-less removal of seat. - Lateral pedestals shared by two chairs supporting a cradle that receives the backrest and seat pan. - Two fastening floor anchors per pedestal and simple assembly of the pedestal by four screws. - Black satin finish paint RAL 9005 corrosion protection 400 hours salt fog. - No adjustment nor maintenance required. - Floor fixings: On concrete, 60 mm minimum on thickness, 2 plugs and bolts 8-50 per foot. - On wood: 38 mm minimum on thickness, 4 bolts 7-50 per foot.
UPHOLSTERY
- For back and seat, fabric with 5mm CMHR foam backing, finished with netting 15g/m² - Seat cover is removable by mean of zip for ease of maintenance. - Removable stapled back covers
