Fantin Srl Frame Tall Units
FRAME TALL UNITS
FRAME TALL UNITS
Designed By Salvatore Indriolo, 2020
The tall Frame units come in two different heights and they can be fitted with doors and appliances. Endless composition options are available. There are no fewer than 47 different finishes on offer in the breathtaking colour palette, so the products can be customized to suit any setting.
INFORMATION
DOORS
Inset in the frame, made of bent and filled sheet metal. Door thickness: 20 mm (0.79").
DIMENSIONS
- Depth: 67 cm
- Height: 153 to 213 cm
- Width: 67 to 128 cm
DOWNLOADS
↓ Technical Specifications
↓ 2D Dxf
↓ 3D 3Ds
↓ Finishes (12MB)
↓ Catalogue (25MB)
DRAWERS
With fronts inset in the frame, made of bent and filled sheet metal. Drawer front thickness: 20 mm (0.79"). Metal handles with a coating in a colour to match the drawer fronts. Drawers with Hettich runners and built-in stabilization and soft-close systems. Capacity: 40 kg (88.18 lb).
FRAME
Made of 35 x 35 mm (1.38" x 1.38") square tubes. Concealed adjustable feet.
TOP
Made of Fenix with a thickness of 12 mm (0.47") or AISI 304 stainless steel filler panel with a thickness of 4 mm (0.16") with satin or Vintage finish (with exclusive Barazza manual processing). Also available with integrated 500 x 400 x 219 mm (19.69" x 15.75" x 8.62") sink.
MATERIAL
Metal
USE
For indoor use
MATERIAL AND FINISH AND CARE
METAL
Non-toxic powder coating for interior use, with no heavy metals. Cured in an oven at 190°C, following degreasing and phosphating. Guaranteed minimum thickness of 50 microns. Minimum resistance to salt spray of 200 hours (in accordance with the ASTM B117 standard). Some finishes are suitable for direct contact with food as required by Italian Law Decree D.M. 21/03/73 and subsequent updates. Before the coating is added, it is possible to assess whether to give the products a special treatment to make them more resistant to wear and exposure to the elements. There is a surcharge for this treatment. Requests for other RAL finishes can be considered.
METAL ESSENTIAL
METAL DESIGN
CLEANING
Clean with a soft damp cloth and dry properly with a soft cloth. For stubborn stains, use a soft cloth, dampened with a small amount of non-abrasive detergent. Use a damp cloth to remove any residue, then dry properly with a soft cloth. If deeper cleaning is required, use specific products for metal surfaces.
CARE
- Avoid the use of abrasive sponges / steel wool, products containing abrasive creams or powdered detergents - Avoid the use of acetone, trichloroethylene, ammonia, alcohol, other alcohol-based products or any that are abrasive - Prevent water, wine, coffee, oil and other liquids from forming a deposit by drying up spills immediately with a soft cloth or absorbent paper.
MODELS AND IT DIAMENSION

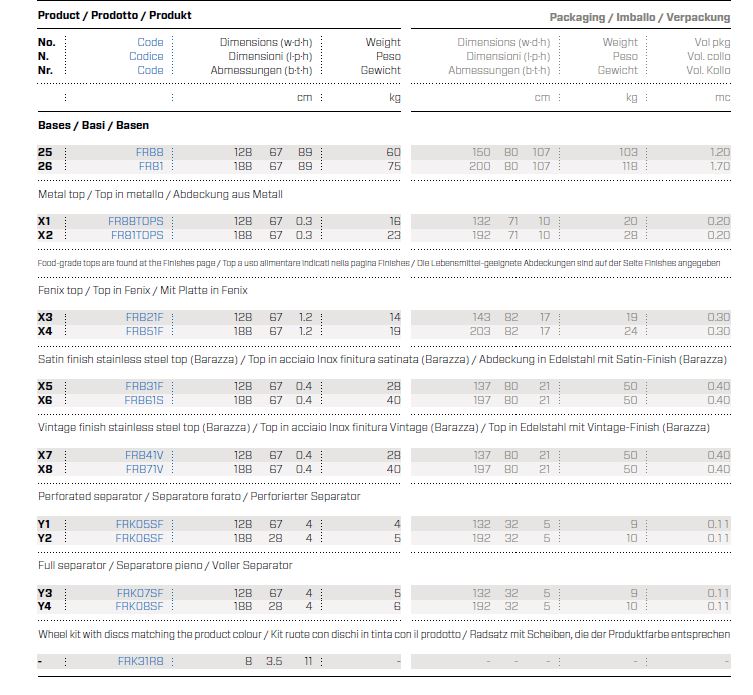

DIMENSIONS
- General Dimensions
- Packaging Dimensions
