TWO TIER BIKE RACK

TurvecSolutions Two Tier Bike Rack

TWO TIER BIKE RACK

Turvec’s space-saving and cyclist-friendly 2ParkUp two-tier bike rack is designed to securely house all bike types.

Suitable for internal and external spaces, the modular two-tier cycle rack can accommodate any number of parking spaces.

TurvecSolutions Two Tier Bike Rack

INFORMATION

CERTIFICATION

- Fietsparkeur
- Tested to 20,000 movements with and without a bicycle

BRAND

TurvecSolutions

FEATURES

- Galvanised with powder coated gas spring housing
- Gas-assisted lifting as standard
- Upper-tier is tested to 20,000 movements with and without a bicycle
- 375mm high-low spacing for high density bicycle parking
- Secure wheel and frame locking points

SPECIFICATIONS

- Capacity: 4 bicycle minimum
- Min. Ceiling: 2600mm (8’6.4”)
- Lead Time: 8 weeks
- Certified: FietsParKeur

DIMENSIONS

- Height requirement: 2600mm
- Depth, single-sided: 1900mm
- Depth, double-sided: 2900mm
- Loading distance: 1800mm-2000mm
- Spacing: 375mm & 400mm

TurvecSolutions Two Tier Bike Rack

FINISH

- Galvanised steel
- Powder coated gas-spring housing

WARRANTY

- 10 years for structural components
- 2 years for gas-spring

FIXING

Surface mounted with adjustable feet

OPTIONS

Powder coating frame and trays

MATERIAL

-Steel frame and trays -High quality industrial gas-spring -Aluminium gas-spring housing -Rubber protective forks on lower tier  -Plastic feet -PE-HM 500 Plastic guider ensures smooth and quiet running of upper tiers

TurvecSolutions Two Tier Bike Rack

INSTALLATION AND QUALITY TESTING

The 2ParkUp two-tier bike rack is delivered in kit form for easy, on-site installation. We recommend that Turvec are contracted to complete installation to ensure correct assembly and uphold product warranties. Our two-tier racks are supplied with adjustable legs and feet, meaning 2ParkUp bike rack can be installed on a slight gradient and retain a level upper tier for the safe loading of bicycles.

Depending on the length of the 2ParkUp double-tier bike rack, we recommend fixing the rack into the substrate. However, for large installations fixing is not required due to the weight of the system. Following the completion of the installation, we test every two-tier bike rack space to ensure it is functioning properly before handover.

DEATIL

-Hot-dip galvanised to BS EN ISO 1461:2009.a. -Priced per parking space. -All racks are gas-assisted for safety, usability and noise reduction. -The gas strut has been tested to 20,000 movements with and without a bicycle. -Bicycle detection systems available. -Our unique lower-tier locking system is designed to prevent head injuries when cyclists are securing their bike into the lower tier of the racks. -Can incorporate electronic charging points within the locking bar. -Rubber protective sleeves prevent bicycle frame scratching. -TFL London Cycling Design Standards compliant. -Fietsparkeur certified. -Secured by Design compliant. -BREEAM compliant. -Any RAL colour.

PROJECT PLANNING

We happily provide a full project planning service for all of our secure bike parking solutions, to save you time and hassle. We also offer a peer review service of existing layouts and produce new layout drawings, optimising the capacity and functionality of a bicycle store. Alternatively, we can provide dwg, Revit files and offer comment on a completed design.

- Ensure 2000mm loading distances in front of 2ParkUp racks
- 2600mm is the minimum height clearance for a two-tier bike rack
- Modules fix together, ensuring spacing is consistent on longer runs of bike racks
- Two-tier bike shelters available

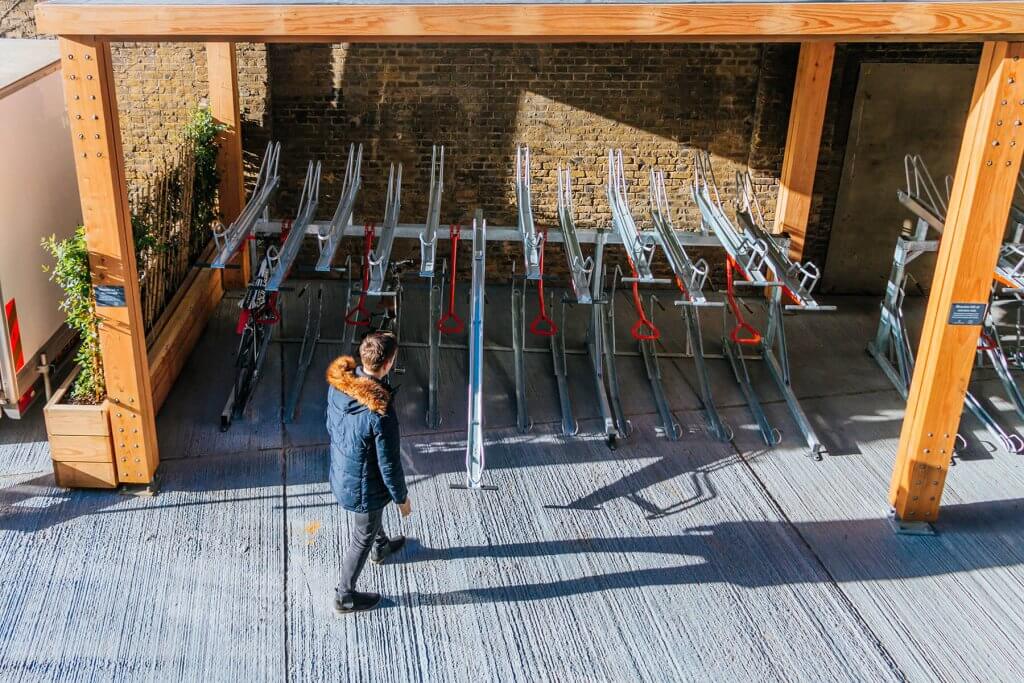

GALLERY

TurvecSolutions Two Tier Bike Rack
TurvecSolutions Two Tier Bike Rack
TurvecSolutions Two Tier Bike Rack
TurvecSolutions Two Tier Bike Rack
