SYSTEM M SHELF

SYSTEM M SHELF

Designed By Thomas Merkel, 2011

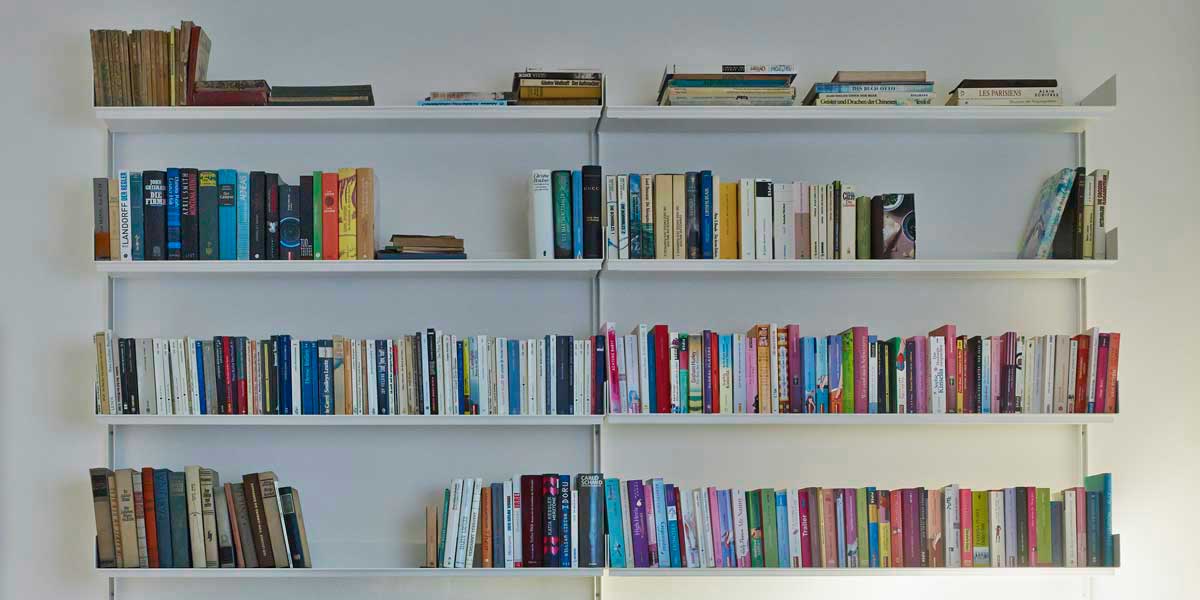

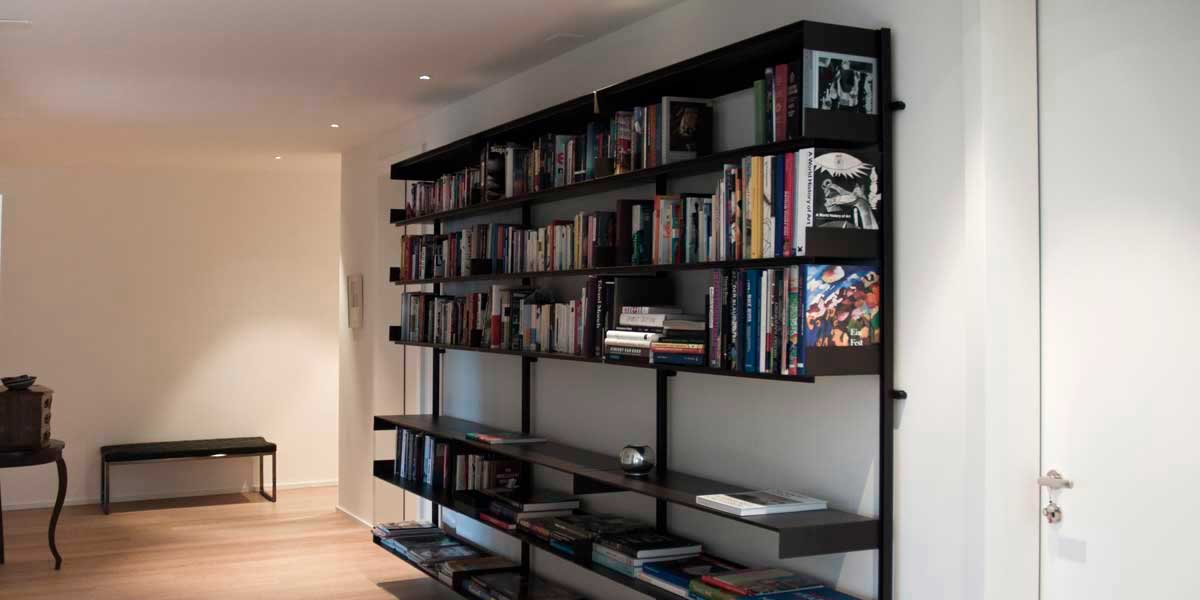

System M Shelf is a modular system of vertical wall profiles in various lengths which allow the mounting of shelves, corpora, panels and tables in any position. The grid dimensions are 80 and 120 cm.

SystemmoebelPlus System M Shelf
SystemmoebelPlus System M Shelf

The suspension is carried out by bottom supports which can be inserted from the front into the profile and placed in the grid of 4 cm. The grid is inside the profiles and almost invisible.

Numerous elements are available for mounting, usually even with different depths to allow configurations according to individual requirements. The interior fittings of the corpora can be provided with various applications for private use as well as for use in the office.

SystemmoebelPlus System M Shelf
SystemmoebelPlus System M Shelf

All accessories can later easily be added. In addition to being able to mount the vertical wall profiles directly onto the wall, the shelf can also be mounted in front of the wall sup- ported on the floor. Then most loads will be discharged to the ground. We call it ground-based wall mounting.

INFORMATION

MATERIAL

- All elements are made of 2 mm powder-coated sheet steel.
- The profiles have a smooth surface and all other elements have a fine textured surface.

SystemmoebelPlus System M Shelf

INTERIOR

The interior of the carcasses and the matching accessories are finished in traffic black RAL 9017 fine structure.

DESIGNER

Thomas Merkel, 2011

CONFIGURATION OF SYSTEM M

Plan your own System M online. Whether it's a bookshelf for your home or a file shelf for the office, a sideboard for the living room wall or a free-standing piece of furniture for the conference room: System M is easy to plan and calculate with the configurator.

COLORS

- Traffic White RAL 9016
- Traffic Grey A RAL 7042
- Traffic Grey B RAL 7043
- Traffic Black RAL 9017

DIMENSONS

SYSTEM M SHELF(3 Shelf)

2 x Vertical wall profile 184 cm
1 x Panel 1 file level 80 x 40 cm
3 x Shelves 80 x 24 cm
1 x Ending and writing shelf 80 x 24 cm
1 x Table 80 x 80 cm

SystemmoebelPlus System M Shelf

SYSTEM M SHELF(6 Shelf)

2 x Vertical wall profiles 184 cm
6 x Shelves 80 x 24 cm
1 x Ending and writing shelf 80 x 24 cm

SystemmoebelPlus System M Shelf

SYSTEM M SHELF(4 Shelf)

4 x Vertical wall profile 184 cm
1 x Panel 1 file level 80 x 40 cm
4 x Shelves 80 x 24 cm
3 x Shelves 80 x 32 cm
2 x Shelves 120 x 24 cm
2 x Shelves 120 x 32 cm
1 x Corpus with hinged door 1 file level 120 cm
1 x Corpus with drawer 1 file level 80 cm
2 x Inserts for drawers for hanging files
1 x Table 80 x 80 cm

SystemmoebelPlus System M Shelf

SYSTEM M SHELF(4 Shelf)

4 x Vertical wall profiles 224 cm
4 x C-profiles for ground-based wall mounting 244 cm
4 x Set of 3 wall holders for C-profile
21 x Shelves 120 x 32 cm

SystemmoebelPlus System M Shelf

4 X 3 SHELF

4 x Vertical wall profile 184 cm
1 x Panel 1 file level 80 x 40 cm
4 x Shelves 80 x 24 cm
3 x Shelves 80 x 32 cm
2 x Shelves 120 x 24 cm
2 x Shelves 120 x 32 cm
1 x Corpus with hinged door 1 file level 120 cm
1 x Corpus with drawer 1 file level 80 cm
2 x Inserts for drawers for hanging files
1 x Table 80 x 80 cm

SystemmoebelPlus System M Shelf

4 X 4 SHELF

3 x Vertical wall profiles 124 cm
4 x Shelves 80 x 24 cm
4 x Shelves 120 x 24 cm
1 x Ending and writing shelf 80 x 24 cm
1 x Ending and writing shelf 120 x 24 cm

SystemmoebelPlus System M Shelf
