Lam Runner
RUNNER

RUNNER
Designed By Lucci e Orlandini
System of Seat and Table

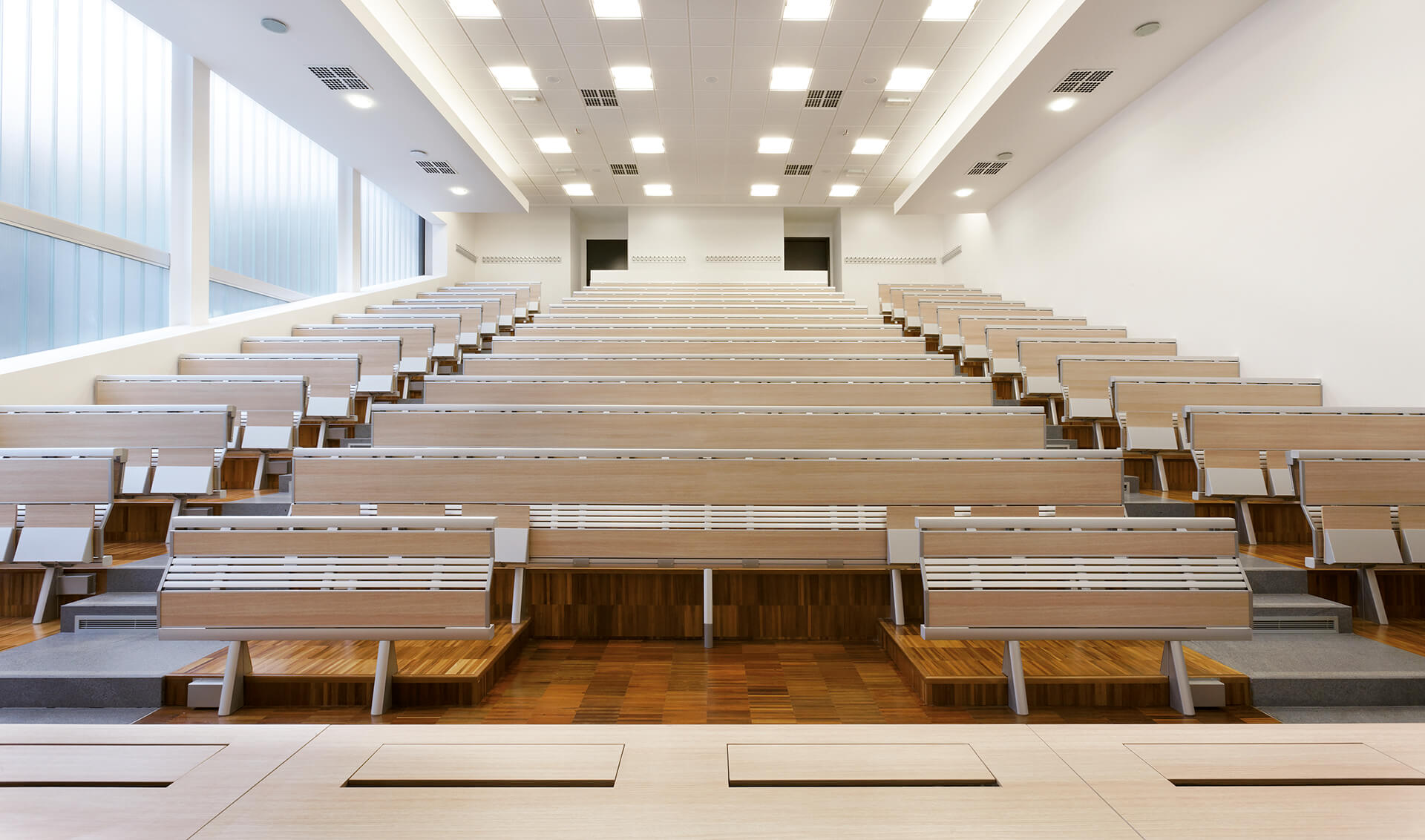

Integrated and continuous system of seats and tables that can be arranged in a straight line or curved composition, on large steps or on sloped flooring. Adjustable centre to centre distance: minimum 51 cm.
The bearing structure and backrest are made of horizontal bars in extruded aluminium. All complementary elements (uprights, tables, seats, feet) are fixed to the extruded components through couplings that require no drilling beforehand or a fixed distance modular set-up.
Runner can be installed with the innovative Floor Technology system, for telescopic fold-away movement of the study desks (only for straight rows).
FEATURES
MAXIMUM FREEDON OF COMPONENT
Extruded anodised aluminium load-bearing structures, with ribbing and channels to fix complementary elements (uprights, seats, writing tablets, supports), without the need for drilling or any predefined modularity, to guarantee maximum freedom of composition when making up the structure, even during installation. Installation in straight or curved rows, on steps or on inclined floors (the centre to centre distance between seats can be adjusted).
BACKREST AND SEAT
Continuous backrest version made of slats and extruded, anodised aluminium sections, with the upper and lower part in bi-laminated or veneered MDF panels. Single backrest version in beech plywood. Both versions are also available padded and covered with fabric or eco-leather. Tip-up seat with automatic cushioned return and finish coordinated with the backrest.
INFORMATION
MODEL TYPE
- Front row desk with tip-up or fixed writing table.
- Intermediate row desk with tip-up or fixed writing table and tip-up seat.
- End row desk with tip-up seat.
UPRIGHTS
In pressed structural steel sheet, covered with semi-matt silver scratchproof epoxy-polyester powder paint and equipped at the ends with plates which connect to the beams and support the seat rotation components. The front of the uprights is provided with a patented connection system for fitting the backrest components.
DOWNLOADS
↓ Specifications
↓ Dimensions
↓ 2D Dwg
ACCESSORIES
- Inter-row bar for installations that are not fastened to the floor.
- Electrification and data line predisposition (socket on demand).
- Row identification element. Seat numbering element.
FEET
In pressed steel sheet, set up for floor fixing and complete with closing guard in anodized extruded aluminium.
BEAM
In anodized extruded aluminium. Upper beam with a rounded trapezoidal section provided with special internal ribbing and external grooves which enable the uprights and writing tables to be positioned and fixed. Lower beam with a rounded square section provided with special internal ribbing and external grooves which enable then uprights and feet to be positioned and fixed.
