Lledo Emergency Anti-panic Lighting

EMERGENCY ANTI-PANIC LIGHTING

Lledo Emergency Anti-panic Lighting

EMERGENCY ANTI-PANIC LIGHTING

Complete range of luminaires for emergency lighting and signaling of evacuation and escape routes

FEATURES

HIGH EFFICIENCY

Reduction of the number and the size of the batteries, which represents a significant environmental improvement. The charge is tiered, which increases accumulators lifespan, limits the power consumption of the recharge and reduces the charging time.

EFFECTIVENESS WITH DISCRETION

The LED technology allows the dimensions of the emergency to be minimal, going unnoticed. Energy consumption is very low and emergencies are very effective. Thanks to LED technology we have a great control of the light beam, taking the light where we need it. For an anti-panic lighting, at 3 meters high, more than 12 meters can be separated.

Lledo Emergency Anti-panic Lighting
Lledo Emergency Anti-panic Lighting

SIMPLICITY IS EVERYTHING

The design of the luminaires is very discreet. Right angles and direct lines are used for a better adaptation to the artificial ceiling. When being embedded, the volume of the emergency is prevented from stealing space from the room, helping to adapt it. It has been optimized to facilitate assembly and thus reduce installation times and costs.

INFORMATION

IP RATING

IP20 IK04

LUMEN FLUX

135 lm

INSTALLATION

- Installation: recessed-mounted
- One hour autonomy

POWER

2 W

CEILING CUT

65 mm

MATERIAL

Made of die-cast aluminium

RECHARGE TIME

12 hours

UNE-EN

60.598.2.22

CERTIFICATION

AENOR

PRODUCT CODE

MCA 4190 White

DOWNLOADS

↓ Data Sheet
↓ Assembly

AVAILABLITY

On request permanent models available

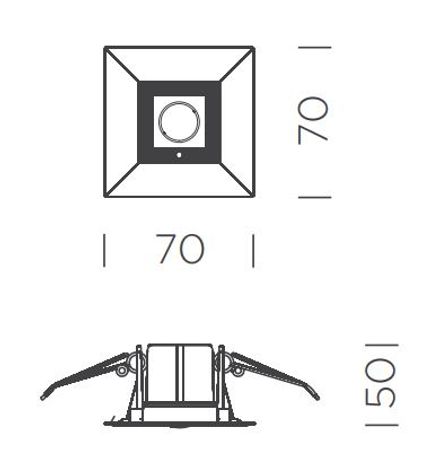

DIMENSIONS

- Height: 70cm
- Width: 70cm, 50cm
- Weigth: 0,60kg

Lledo Emergency Anti-panic Lighting

BATTERY

The battery charging is tiered, which saves energy and expands the battery life.
