Sectodesign Owalo 7020 Table Lamp
OWALO 7020 TABLE LAMP
OWALO 7020 TABLE LAMP
Owalo 7020 table lamp: Functionally Slim

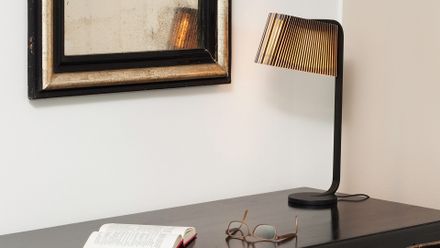

Owalo 7020 is a sleek table lamp that works really well by the bed as well as on the window sill thanks to its thin frame.
INFORMATION
VOLTAGE
100-240v 50/60hz
DIMMING
Non-dimmable
TYPE
Table Lamp
FINISHING
Black Cable + Structure Painted White/ Black Frame
CLASSIFICATION
Ingress Protection IP20, IEC Protection Class II, CE marking
DOWNLOADS
↓ Data Sheet
↓ Catalogue
MATERIAL
Form pressed birch slats, fine textured powder coated steel stand, acrylic diffuser
LIGHT SOURCE
- A Built-in Led
- 7 W, 2850 k
- 630 lm & CRI 85
CABLE
- 300 cm
- Plastic Cable
- Switch And Transformer On The Cable
DIMENSIONS
- Height : 50 cm
- Width : 7 cm
- Depth : 30 cm
- Base : 13 cm
- Weight : 2,4 kg
MAINTENANCE
Wipe dust regularly. To remove fresh stains wipe with a slightly damp cloth.
DALI
Attachable to dali systems with a separate dali-compatible trailing edge (phase cut off) type dimmer, but not dimmable. Due to great variation in dali systems, secto design does not supply dali-dimmers. Please contact your local electrician.
TECHNOLOGY
Handmade of pefc-certified form pressed birch in finland by highly skilled craftsmen. Uses the latest led-technology.
LIGHT DISTRIBUTION
Light distribution curve of Owalo 7020. Polar curve of the angular Luminous Intesity distribution at two perpendicular C planes.
OPENING INSTRUCTIONS
-Step 1 : Lift up the lamp body from the package by holding it from the sheltering structure around it.
-Step 2 : Remove the top sheltering element and the bottom part of the package.
-Step 3 : Plug in the lamp cord.
FINISHES
- Natural birch
- White laminated
- Black laminated
- Walnut veneer
