Salice Waste Bin Systems - Pull-Out Units

WASTE BIN SYSTEMS - PULL-OUT UNITS

Salice Waste Bin Systems - Pull-Out Units

WASTE BIN SYSTEMS

Storage unit width 450 mm.

Kit composed by Shelf runners, premounted on a steel support, fully assembled Lineabox drawer, bin-holder frame and bins.

- Lenght of the runners 500 mm
- Adjustable steel support
- Height of the Lineabox metal side 180 mm

Salice Waste Bin Systems - Pull-Out Units

The waste bin systems provide an aesthetically attractive and extremely effective handling of waste.

Both the Lineabox drawer and the waste bins are supplied in preassembled kits. Their assembly is easy, rapid and intuitive. This operation is tool free.

The sliding movement of the drawer is fluid and progressive, thanks to Shelf full-extension runners, premounted on a specially-designed frame.

Salice Waste Bin Systems - Pull-Out Units

INFORMATION

APPLICATIONS

Kitchens

BRAND

Salice

USE

Pull-out units

BIN-HOLDER FRAME

Titanium

LINEABOX DRAWER

Fully assembled

RUNNERS SUPPORT

Grey

SCREWS FOR WOODEN FRONTAL

ø 4 x 35 mm

2 SHELF RUNNERS

65559, 500 mm length, premounted on a steel support

WASTE BINS

Charcoal

CAPACITY

24 litres

CHARACTERISTICS

- Supplied in preassembled kits
- Easy installation
- Tool-free operation
- Fluid movement

LINEABOX SIDES

- Stainless steel
- Champagne
- Titanium
- White

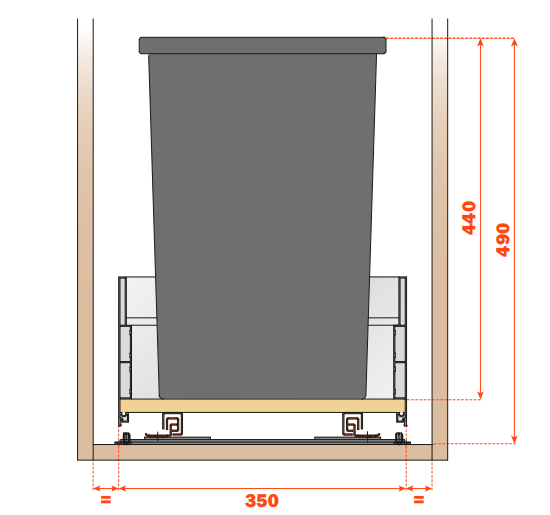

DIMENSIONS WITH SHELF FULL-EXTENSION RUNNERS

- Height 1 :  490
- Height 2 : 440
- Width : 350

Salice Waste Bin Systems - Pull-Out Units

FRAME

Steel bin-holder

WASTE BINS

2 plastic bins

TECHNICAL FEATURES

- Depth adjustment with the runner fixing clips
- Sideways, vertical and tilt adjustment on the runners support

Salice Waste Bin Systems - Pull-Out Units

STORAGE UNIT WIDTH 450 MM

Single kit

AKWBAX105000450 : White
AKWBAX605000450 : Titanium
AKWBAXC05000450 : Champagne
AKWBAXI05000450 : Stainless steel

ACCESSORIES

Salice Waste Bin Systems - Pull-Out Units
AMSRX33
Reinforcing supports for the bottom of the drawer
Salice Waste Bin Systems - Pull-Out Units
SCXX83H9
Cover cap with silk-screen printed logo
Salice Waste Bin Systems - Pull-Out Units
SCCX83H9
Cover cap with embossed logo
