Salice Waste Bin Systems

WASTE BIN SYSTEMS

WASTE BIN SYSTEMS 600 MM

The waste bin systems provide an aesthetically attractive and extremely effective handling of waste.

Both the Lineabox drawer and the waste bins are supplied in preassembled kits. Their assembly is easy, rapid and intuitive. This operation is tool free.

Salice Waste Bin Systems
Salice Waste Bin Systems
Salice Waste Bin Systems

The sliding movement of the drawer is fluid and progressive, thanks to Shelf full-extension runners, premounted on a specially-designed frame.

INFORMATION

STORAGE UNIT WIDTH

600 mm

USE

Pull-out units

APPLICATIONS

Kitchens

SUPPORT

Adjustable steel support

HEIGHT OF THE LINEABOX METAL SIDE

180 mm

TECHNICAL FEATURES

-Depth adjustment with the runner fixing clips -Sideways, vertical and tilt adjustment on the runners support

CHARACTERISTICS

-Supplied in preassembled kits -Easy Installation -Tool-free Operation -Fluid Movement

KIT COMPOSITION

-Kit Composed By Shelf Runners -Premounted on A Steel Support -Fully Assembled Lineabox Drawer -Bin-holder Frame and Bins

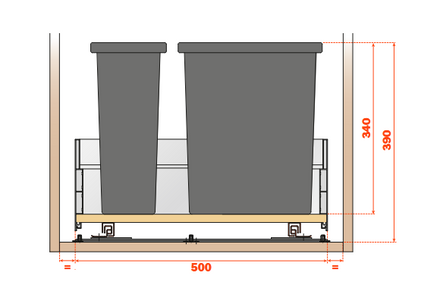

DIMENSION

Length of The Runners : 500 mm

Salice Waste Bin Systems

FINISHES

- Bin-holder frame: Titanium
- Waste bins: Charcoal
- Plastic glove box: Charcoal
- Runners support: Grey
- Lineabox sides: Stainless steel, Champagne, Titanium, White

KIT CONSISTS OF

- 2 Shelf runners 65559, 500 mm length, premounted on a steel support
- Screws for wooden frontal ø 4 x 35 mm
- Fully assembled Lineabox drawer
- Steel bin-holder frame
- 2 plastic waste bins - capacity 18 litres, 1 waste bin - capacity 12 litres
- 1 plastic glove box

VERSIONS-STORAGE UNIT WIDTH 600 MM- SINGLE KIT

- AKWBAX105000600 : White
- AKWBAX605000600 : Titanium
- AKWBAXC05000600 : Champagne
- AKWBAXI05000600 : Stainless steel

Salice Waste Bin Systems

ACCESSORIES

Salice Waste Bin Systems

SCCX83H9

Cover cap with embossed logo

Salice Waste Bin Systems

SCXX83H9

Cover cap with silk-screen printed logo

Salice Waste Bin Systems

AMSRX33

Reinforcing supports for the bottom of the drawer
