Salice Pull-Out Units Waste Bin Systems

PULL-OUT UNITS WASTE BIN SYSTEMS

Salice Pull-Out Units Waste Bin Systems

PULL-OUT UNITS WASTE BIN SYSTEMS

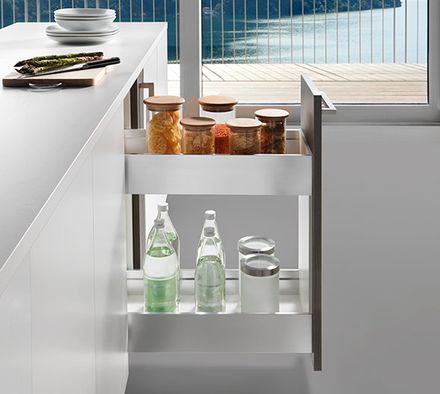

Fluid, silent and progressive sliding movement

Completely preassembled, easy and intuitive to mount, they transform even the smallest spaces into useful containers for bottles and spice jars.

INFORMATION

WIDTH

300 mm

LENGTH OF RUNNERS

500 mm

SYSTEM

Integrated Smove System

FINISHES

Lineabox sides: Stainless steel, Champagne, Titanium, White

Salice Pull-Out Units Waste Bin Systems
Salice Pull-Out Units Waste Bin Systems

TECHNICAL FEATURES

- Depth, vertical and sideways adjustment with the runner fixing clips
- For cabinets with side thickness min. 15 mm max. 19 mm

KIT CONSISTS OF

- 2 Futura runners 6555, full-extension, 500 mm length, to be fixed to the right side or the leftside of the cabinet
- 1 Shelf runner 65559, 500 mm length, to be fixed to the bottom of the cabinet
- Screws for wooden frontal ø 4 x 35 mm
- 2 fully assembled Lineabox drawers, premounted on a frame

CHARACTERISTICS

Supplied in preassembled kits, easy installation, tool-free operation, fluid movement

DIMENSIONS WITH FUTURA AND SHELF FULL-EXTENSION RUNNERS

Salice Pull-Out Units Waste Bin Systems
Salice Pull-Out Units Waste Bin Systems

VERSIONS

- AKEEDX105000300 : White
- AKEEDX605000300 : Titanium
- AKEEDXC05000300 : Champagne
- AKEEDXI05000300 : Stainless steel

PRODUCTION

Made in Italy

USE

Pull-out units

APPLICATIONS

Kitchens

ACCESSORIES

Salice Pull-Out Units Waste Bin Systems
SCCX83H9
Cover cap with embossed logo
Salice Pull-Out Units Waste Bin Systems
SCXX83H9
Cover cap with silk-screen printed logo
