Vibia Lighting, Ltd.

Vibia Pin Lamps

PIN LAMPS

PIN LAMPS - WALL

Designed By Ichiro Iwasaki

The  collection is an Ichiro Iwasaki design.

Vibia Pin Lamps
Vibia Pin Lamps
Vibia Pin Lamps

The collection of wall lights is characterised by its providing both indirect ambient and a focused reading light, which can be installed in rooms where it can contribute to create comfortable reading conditions as well as in circulation areas where several fittings can be configured to provide indirect lighting, like a light mural.

Vibia offer many options for the sconces within this collection, seven in total. All feature a LED light source while users can choose between four finishes; black, white, cream and green.

Vibia Pin Lamps
Vibia Pin Lamps
Vibia Pin Lamps

FLOOR

The collection is a daring lighting proposal from Japanese designer Ichiro Iwasaki for Vibia.

Concepts such as continuity and comfort are explored with this new collection that brings together wall, floor and table lamps.

The Pin collection is characterised by its delicate design and subtle, functional and minimalist expression while also being classic and contemporary.

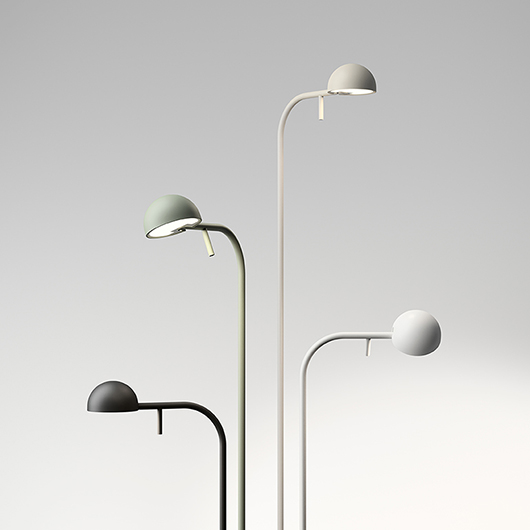

The Pin floor lamps are ideal for reading lamps and can be integrated within any ambience in either traditional or more contemporary decors. The LED source is exquisitely integrated within the Pin lamps.

Vibia Pin Lamps
Vibia Pin Lamps

TABLE

The Japanese designer Ichiro Iwasaki has created the for Vibia.

The Pin collection is conceived as a new interpretation of the ambient reading light.

Vibia produces two models to choose from, one with a short arm and another with a longer arm. Perfect for use in home offices or the work place.

Vibia Pin Lamps
Vibia Pin Lamps
Vibia Pin Lamps

Available in a choice of matt colours; white, black, cream and green. The LED technology is perfectly integrated within the adjustable head of this collection.

INFORMATION

TABLE LAMP MODEL NO

- 1650
- 1655

FLOOR LAMP MODEL NO

- 1660
- 1665
- 1670

Vibia Pin Lamps
Vibia Pin Lamps

WALL LAMP MODEL NO

-1675 -1680 -1685 -1686 -1690 -1692 - 1694

INSTALLATION TYPE

Surface Canopy

SHADE

Polycarbonate Diffuser

Vibia Pin Lamps

ELECTRICAL CHARACTERISTICS

1 × LED 4,48W 350mA

TECHNICAL CHARACTERISTICS

Switch On The Wall Plate

FIXTURE

192.18 lm 42.71 lm/W

Vibia Pin Lamps
Vibia Pin Lamps

LED

2700K CRI >90 452.95 lm 100.66 lm/W

DRIVER INCLUDED

CC - Constant Current 350 mA 100~240V 50/60Hz

EFFICIENCY

31.88 lm/W

COORDINATION SYSTEM

CG

Vibia Pin Lamps
Vibia Pin Lamps

TOTAL FLUX

192.18 lm

MAXIMUM VALUE

80.54 cd

PHYSICAL CHARACTERISTICS

- 1 Box 0.193x0.161x0.148 m.
- Vol 0.0045 m3
- Gross weight 0.9 kg
- Net weight 0.4 kg

MATERIALS

- Rods : Steel
- Head : Aluminium
- Diffuser : Polycarbonate
- Base : Zamak

COLORS

- 04 Black NCS 9000N
- 58 Cream NCS S 2005-Y20R
- 62 Green NCS S 3010-G20
- 93 WhiteBNCS S 0502-Y

TECHNICAL DESIGN

Vibia Pin Lamps
Wall
Vibia Pin Lamps
Floor
Vibia Pin Lamps
Table

LIGHT ROTATION

Vibia Pin Lamps
Wall
Vibia Pin Lamps
Floor
Vibia Pin Lamps
Table

LIGHT DISTRIBUTION

Vibia Pin Lamps
Wall
Vibia Pin Lamps
Floor
Vibia Pin Lamps
Table
