BYSTED GARDEN BOLLARD OUTDOOR LIGHT

Louis Poulsen Bysted Garden Bollard Outdoor Light

BYSTED GARDEN BOLLARD - OUTDOOR LIGHT

Designed By Peter Bysted

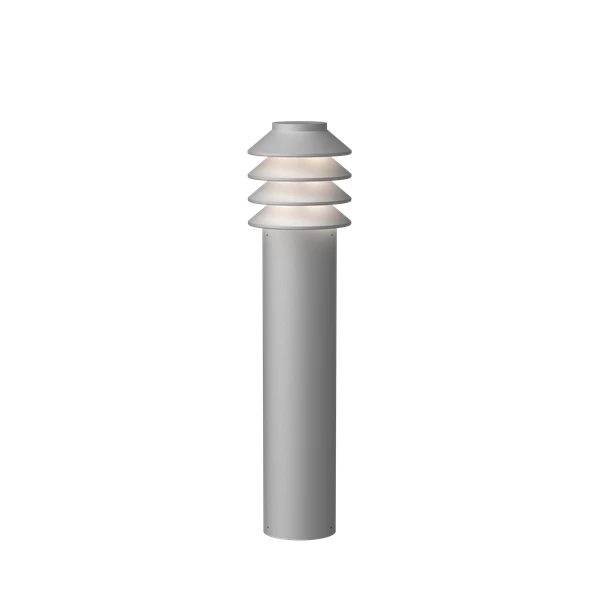

The fixture has a round symmetrical design with four rings reflecting the light in a soft downward direction.

The rings have a soft glow while their white underside achieve optimal light reflection and produce a characteristic symmetric light pattern on the ground.

Louis Poulsen Bysted Garden Bollard Outdoor Light

BYSTED GARDEN

Bysted Garden is a downscaled version of the iconic Bysted bollard, which won Peter Bysted second prize in a contest organised by Louis Poulsen for the illumination of neighbourhoods with listed buildings, nearly 50 years ago.

Louis Poulsen Bysted Garden Bollard Outdoor Light

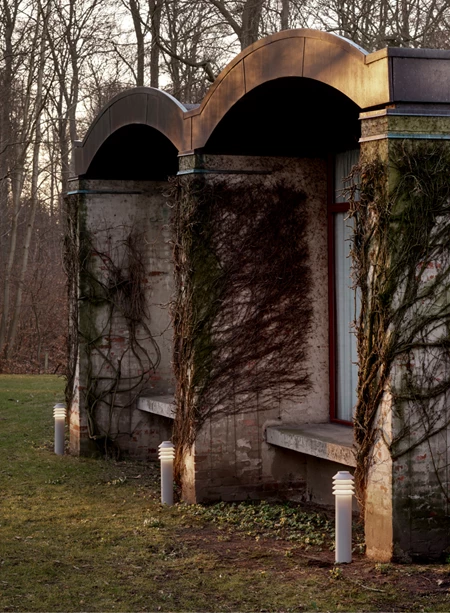

Bysted Garden truly stands out both individually and in installations with multiple units, where it creates an attractive and pleasant atmosphere.

Louis Poulsen Bysted Garden Bollard Outdoor Light

The downscaled design is based on the same concept as the original Bysted bollard with four rings that redirect the light downwards, while glowing at night and giving the product individuality and character.

Louis Poulsen Bysted Garden Bollard Outdoor Light

Bysted Garden is available in a corten colour finish or aluminium finish as standard. The fixture has been developed in durable cast aluminium that will not patinate over time.

Louis Poulsen Bysted Garden Bollard Outdoor Light

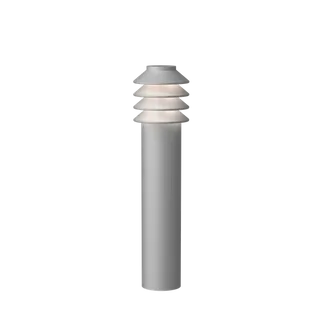

Available in two different heights, Bysted Garden allows for a wide range of installations from entrance areas to planter boxes around the terrace.

designer

Louis Poulsen Bysted Garden Bollard Outdoor Light

PETER BYSTED

Peter Bysted graduated as an architect and industrial designer from The Aarhus School of Architecture in 1978.

Three years prior, in a contest arranged by Louis Poulsen concerning the illumination of quarters worthy of preservation, he won second prize with ‘Bysted’, a bollard made from corten steel, suggesting his interest in lighting design even then.

While a student he was also very interested in graphic design and it was the combination of these two fields that would later characterise his design – and communicational firm Bysted A/S, established in Copenhagen in 1987.

In the 20 years that followed, Peter Bysted built one of Denmark’s biggest and most successful design firms. In 2007 Bysted A/S was sold to Intellecta AB and in the following two years Peter Bysted held the position of vice-chancellor of The Danish Design School. He subsequently established ICONO A/S, a multi-disciplinary consultancy firm with design as its focal point.

Besides designing light fixtures, the work of Peter Bysted ranges from designing visual identity programmes to companies such as Falck, Nykredit, Nilfisk Advance and DONG Energy to designing and implementing larger expo projects, most recently the Nordic Pavilion at EXPO 2005 in Japan, preceded by EXPO 2000 in Hannover.

‘Rubbie’ was originally designed for the Danish EXPO pavilion in Hannover in 2000 and was later developed further, becoming a Louis Poulsen standard product with an LED light source.

About the product, Peter Bysted says: ‘The goal was to create something more than just a bollard. Besides its primary function, I wanted to add personality and warmth as well as giving it a human aspect and let it play the part of street furniture.

The rubber surface and the rounded top tempt pedestrians to take a little rest, and the effective, glare-free illumination contributes towards a feeling of safety within the urban space. In March 2011, “Rubbie” won the prestigious Lighting Design Award.

information

BRAND

Louis Poulsen

PRODUCT TYPE

Bollard Light

COLLECTION

Bysted

USE

Outdoor

LIGHT SOURCE

Light source LED 4000K

MATERIAL

-Diffuser : PC
-Top : Cast aluminium
-Reflector part : Cast aluminium
-Post : Extruded aluminium.
-Base plate, spike and anchor : Cast aluminium.

DESIGNER

Peter Bysted

INFORMATION

-Spike : Uses standard cables and connectors which are supplied. Plug and play.
-Anchor/Base : Use installation cable for legal fixed installation. Adapter requires installation by certified electrician if used with anchor or base.
-The adapter is positioned externally from the fixture and can run up to 4 bollards. Maximum distance to last bollard is 30m.

Louis Poulsen Bysted Garden Bollard Outdoor Light

COLORS

- Aluminium
- Corten

Louis Poulsen Bysted Garden Bollard Outdoor Light
Corten
Louis Poulsen Bysted Garden Bollard Outdoor Light
Aluminium

WEIGHT

- Long : 4.6 kg
- Short : 4.0 kg

DIMENSIONS

- Long : 132 x 534 x 132 Max
- Short : 132 x 254 x 132 Max

ENVIRONMENTAL PRODUCT SPECIFICATION

This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.

CLASS

-Ingress Protection W/spike : Ip 65
-Ingress Protection W/anchor : Ip 65  (Head), Ip44 (Anchor) Ingress
-Protection W/base Plate : Ip 65 (Head), Ip44 (Baseplate) Electric Shock Protection Iii Ik06

FINISH

- Aluminium Coloured
- Corten Coloured
- Textured Surface
- Powder Coated

MOUNTING

The adapter is positioned externally from the bollard and can run up to 4 bollards. Maximum distance to last bollard is 30m. Post dia. Ø95mm. Mounting with spike unit: (Plug and Play). Put the spike into the ground. Let the enclosed cables run over the ground. The bollard is connected to adapter using standard plugs delivered with the fixture. Mounting with anchor unit: (Certified electrician). Fixed in concrete. Use installation tubes for inground installation, with enclosed cables running inside, for legal fixed installation. Requires installation by certified electrician. Mounting with baseplate: (Certified electrician). For surface mounting. Use installation tube for inground installation, with enclosed cables running inside, for legal fixed installation. Requires installation by certified electrician.

Louis Poulsen Bysted Garden Bollard Outdoor Light

MOUNTING INSTRUCTIONS

Louis Poulsen Bysted Garden Bollard Outdoor Light

POLE WITH ANCHOR UNIT

Fixed in concrete. Use installation cable. Installed by certified installer.

Louis Poulsen Bysted Garden Bollard Outdoor Light

POLE WITH BASEPLATE

For surface mounting. Use installation cable. Installed by certified installer.

Louis Poulsen Bysted Garden Bollard Outdoor Light

POLE WITH SPIKE UNIT

The bollard is connected to adapter using standard plugs delivered with the fixture. Length of enclosed cables: 5m. Put the spike into the ground and let the enclosed cables run over the ground. Plug and play.
