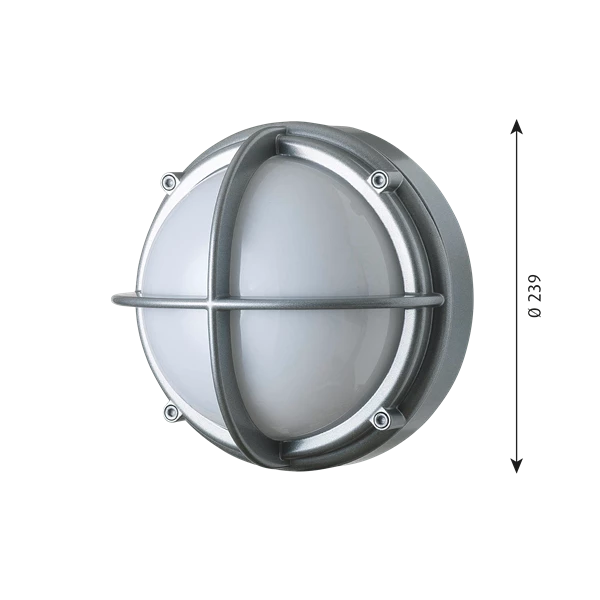

SKOT WALL - PENDANT LIGHT

SKOT WALL - PENDANT LIGHT

The fixture is available with two types of distribution: symmetric or half shaded.

Louis Poulsen Skot Wall - Pendant Light
Louis Poulsen Skot Wall - Pendant Light
Louis Poulsen Skot Wall - Pendant Light

The half shaded is only recommended for wall mounting. The opal diffuser creates a soft light distribution. For higher efficiency the clear version can be selected.

Louis Poulsen Skot Wall - Pendant Light
Louis Poulsen Skot Wall - Pendant Light

INFORMATION

USE

Exterior artificial lighting

TYPES OF LIGHTING

LED

CHARACTERISTICS

-Exterior lighting -Choice of light source and finish -Various designs available

APPLICATIONS

- Residential
- Public Hotel
- Cultural
- Educational
- Retail

DIMENSIONS

- Height : 155 mm
- Width  : 239 mm
- Length : 239 mm
- Weight : 3.0 kg

Louis Poulsen Skot Wall - Pendant Light
Louis Poulsen Skot Wall - Pendant Light

COLOUR

Aluminium colour

MATERIALS

-Diffuser: Injection moulded clear polycarbonate or injection moulded opal polycarbonate.-Base/cross guard: Die cast aluminium.

FINISHES

Aluminium coloured or graphite with textured surface, powder coated.

MOUNTING

-Terminal strip: 1x5x6mm². Cable access: 6 rear and 3 push-out blanks on each side, Ø19mm. -Looping: Approved, max. 4x2.5mm².

INNOVATION

The innovation of the LED technology is constant. The specifications mentioned are based on present technology.

ENVIRONMENTAL PRODUCT SPECIFICATION

This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.

CLASS

Ingress protection IP66. Electric shock protection II w/o ground. IK10.

LIGHT SOURCE

Light source LED 3000K 6.5W , Lumen: 522

THE STORY BEHIND THE PRODUCT

The Skot light was developed in the early 1900s by LK (Lauritz Knudsen). It was originally developed for ships and maritime areas, but it has also become popular in other environments where its compact and sturdy design has appeal. The LED version was launched in 2012.

LIGHT DISTRIBUTION DIAGRAMS

Louis Poulsen Skot Wall - Pendant Light

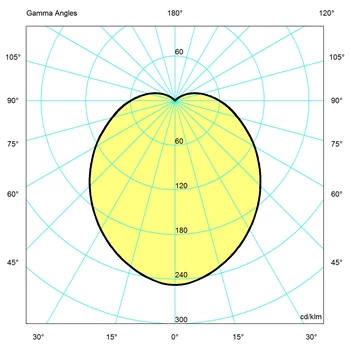

Polar
Louis Poulsen Skot Wall - Pendant Light
Cartesian
Louis Poulsen Skot Wall - Pendant Light

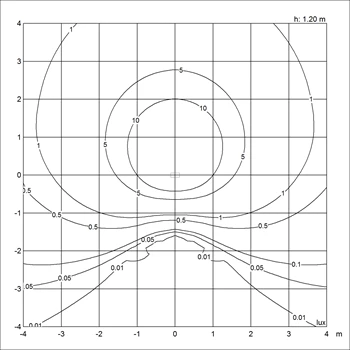

Isolux
Louis Poulsen Skot Wall - Pendant Light
Polar
Louis Poulsen Skot Wall - Pendant Light
Cartesian
Louis Poulsen Skot Wall - Pendant Light
Isolux
