Louis Poulsen Ripls Wall Light

RIPLS - DIFFUSED LIGHT

RIPLS - DIFFUSED LIGHT

The fixture emits diffused light. The front consist of a concave clear front with ripples like rings in water. The ripples refract light in the front creating a subtle change of appearance depending on viewing angle.

Louis Poulsen Ripls Wall Light
Louis Poulsen Ripls Wall Light

The concave form outlines the refraction creating a higher intensity light towards the center fading off towards the edges. A diffuser offset sits deep in the fixture creating a sense of depth in the front.

A slim housing creates the appearance of a floating disk while perforations in the opaque housing allows indirect light to create a halo around the fixture.

Louis Poulsen Ripls Wall Light
Louis Poulsen Ripls Wall Light

DESIGNER

Louis Poulsen Ripls Wall Light

JAKOB WAGNER

The designer behind Ripls is Jakob Wagner. Jakob Wagner was born in Copenhagen in 1963, and over the years has been responsible for a wide range of recognised products spanning professional designs for the medical and sports worlds as well as products for the home.

Jakob Wagner’s simple yet sophisticated work expresses the essence of a product in a minimalist, poetic and playful way.

His design process is detailed, and considers all aspects of the user experience, which results in timeless and harmonious designs. And it is precisely these properties that characterise Ripls. Jakob Wagner’s simple yet sophisticated work expresses the essence of a product in a minimalist, poetic and playful way.

His design process is detailed, and considers all aspects of the user experience, which results in timeless and harmonious designs. And it is precisely these properties that characterise Ripls.

Jakob Wagner says: “At first glance, you are struck by the simplicity of the design, and you can even have 50 of these lamps installed in a single room. On closer inspection, you discover that the lamp also casts light against the wall, which has the effect of almost pulling the lamp away from it. If you study the lamp further, you will see how the wave pattern causes the light to create ‘ripples in the water’.

INFORMATION

USE

- Artificial Wall
- Ceiling Lighting

SIZES

Ingress protection IP20. Electric shock protection I.

CHARACTERISTICS

-Diffused lighting, both wall and ceiling mounting -Durable PC housing -Indirect light component

MATERIALS

-Rear housing: Injection molded polycarbonate. -Diffuser: Opalescent PMMA. Clear front: Clear UV resistant polycarbonate.

Louis Poulsen Ripls Wall Light

APPLICATIONS

- Residential
- Hotel
- Cultural
- Retail

DIMENSIONS

- Height : 80 mm
- Width  :  310 - 500 mm
- Length : 310 - 500 mm
- Weight : 4.0 kg, 3.5 kg

Louis Poulsen Ripls Wall Light
Louis Poulsen Ripls Wall Light

LIGHT SOURCE

LED

FINISHES

White opal diffuser and clear reflective front. Satin matt white.

MOUNTING

-Terminal strip : 1x5x2.5mm2. Cable access: 2 rear, Ø19mm or side mounting. -Prepared for looping : Approved, max. 5x1.5mm2.

DETAIL

Please contact Louis Poulsen for Switch-DIM, Wireless bluetooth control, other colour temperatures, Kelvin adjustable or LED replacement kit.

ENVIRONMENTAL PRODUCT SPECIFICATION

This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.

CLASS

Ingress protection IP20. Electric shock protection I.

LIGHT SOURCE

Light source LED 3000K 13W
Lumen: 1060

THE STORY BEHIND THE PRODUCT

The Skot light was developed in the early 1900s by LK (Lauritz Knudsen). It was originally developed for ships and maritime areas, but it has also become popular in other environments where its compact and sturdy design has appeal. The LED version was launched in 2012.The desire was to create a lamp which was discrete – yet also an experience. From a distance, the opal-shaped lamp resembles an illuminating frisbee. On walking past the lamp, you discover how the lamp catches the light and creates its own refractions.

Like circular ripples in the water when you cast a stone into a glassy forest lake. The effect is almost magical. It leaves you with a desire to feel and touch it to understand. Because even though LP Ripls appears light and simple on the face of it, it remains elusive and hard to fathom.

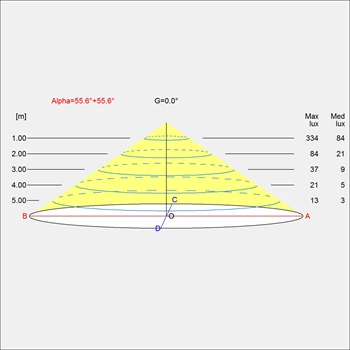

LIGHT DISTRIBUTION DIAGRAMS

Louis Poulsen Ripls Wall Light
Polar
Louis Poulsen Ripls Wall Light
Cartesian
Louis Poulsen Ripls Wall Light
Isolux
