Bartco Lighting BCR100 1-3/8” LED Closet Rod Fixture with Remote Driver

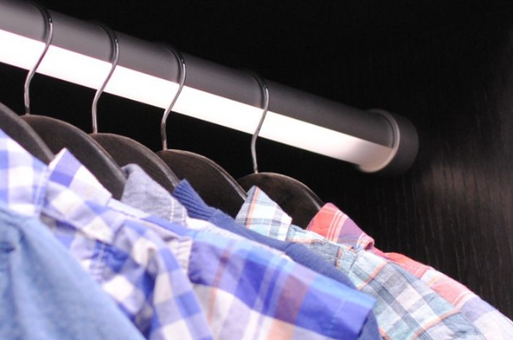

The BCR100 is a 1-3/8” O.D. extruded aluminum LED luminaire designed for installation as an illuminated closet rod.
Light diffused through a frosted acrylic lens is directed downward onto hanging clothes and into the closet space.
The slender fixture housing is secured to walls or millwork with clean, machined aluminum mounting cups. For longer lengths, fixed and adjustable intermediate supports are available.
INFORMATION
USE
Interior Lighting
MATERIAL
Aluminum
MANUFACTURER
Bartco Lighting
LEAD TIME
Built to order: 2-4 Weeks
SKU
BCR100
APPLICATIONS
-Residential
-Hospitality
NOMINAL LENGTH
4'
OUTPUT
Regular
SECTION
SIDE
WATTS/FT
5.6
LUMENS/FT
480
LUMINAIRE LUMENS
1819
DRIVER
-ND: non-dimming [Dimming] - D: 0-10V, 1% -HES: Lutron EcoSystem, soft-on/fade-to-black, 1% -H2: Lutron Hi-lume 2-wire forward phase, 1%, (120V ONLY) -E5: Lutron EcoSystem 5-Series, 5% -EL: eldoLED ECOdrive, 0-10V, 1%
LED
3500K
EFFICACY (LPW)
87
INSIDE CLEAR DIMENSION
- 23-15/16 – 34-7/8” (2 LED boards)
- 34-15/16 – 45-7/8” (3 LED boards)
- 45-15/16 – 56-7/8” (4 LED boards)
- 56-15/16 – 67-7/8” (5 LED boards)
- 67-15/16 – 78-7/8” (6 LED boards)
- 78-15/16 – 89-7/8” (7 LED boards)
- 89-15/16 – 96” (8 LED boards)
TEMPERATURE
- 27: 2700K-90+ CRI
- 30: 3000K-90+ CRI
- 35: 3500K-90+ CRI
- 40: 4000K-90+ CRI
FINISH
-AW: architectural white (semi-matte) -WH: white (semi-gloss) -BL: black (semi-matte) -MB: matte black -ESS: environmental satin silver -BZ: bronze -PR: primer -CF: consult factory for custom finish -SA: satin anodize (may require additional lead time)
LEDS AVAILABLE
LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical
FIXTURE
-Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and sheet aluminum end caps -Fixture mounts to closet walls with machined aluminum cup-style holders -Fixtures wired with 10’ low voltage leads -Fixture housings cut to length in 1/16” increments based on 11” length LED board modules
CERTIFICATION
- CUL Listed, CA Title-24
- Assembled in the USA
CHARACTERISTICS
- Customizable size/color/light temperature/driver
- LED technology
SPECIFICATIONS
- Available for closet openings of 2’ – 8’ nominal
- Included standard remote 120-277V driver offered with 0-10V dimming or non-dim.
- Standard output is 480 lumens per foot
- Life: 50,000 hours L70
- Limited five year warranty
- UL and C-UL listed for storage spaces
- Fixed length or adjustable intermediate supports required for fixture lengths over 34-15/16” with 33 lbs. capacity for every 36” of length between supports
