Reggiani Yori Channel - Spotlight

YORI CHANNEL - SPOTLIGHT

Reggiani  Yori Channel - Spotlight

YORI CHANNEL - SPOTLIGHT

The Yori Channel projector is built into a bespoke designed aluminium rail for surface installation or recessed trimless mounting.

The highly compact mounting rail means the projector discreetly blends into its surroundings

The lighting bodies of Yori Channel incorporate the standout features of the Yori range such as retracted optics, advanced technology lenses and optics, plus a wide range of accessories.

INFORMATION

APPLICATIONS

- Commercial
- Corporate

FINISH

- Ebossed Matt White
- Embossed Matt Black

BRAND

Reggiani

PRODUCTION

Made in UAE

TYPE OF LIGHT

LED

OPTIC

Adjustable optic

USE

Mounting rail for interior lighting

CHARACTERISTICS

Bespoke design, highly compact, recessed optics, adjustable.

EXTREMELY ADJUSTABLE ANGLE OF PROJECTION

- Horizontal : 356°
- Vertical : 90°

Reggiani  Yori Channel - Spotlight

SIZES

- Ø43mm
- Ø60mm
- Ø75mm
- Ø95mm

FEATURES

- Available for trimless duct and surface mounting
- Luminous flux up to 5090lm and CRI > 90
- Integrated plastic no-dazzle screen
- Recessed optics for improved visual comfort
- Interchangeable optical system (IOS)
- Can be equipped with IR, UV, selective food and coloured dichroic filters
- Can be equipped with a no-dazzle honeycomb grille and cross grille
- Available in the special WARM DIMM version for adjusting the colour temperature from 1700K to 3000K

TECHNICAL DRAWINGS

Reggiani  Yori Channel - Spotlight
Ø 43 mm
Reggiani  Yori Channel - Spotlight
Ø 60 mm
Reggiani  Yori Channel - Spotlight

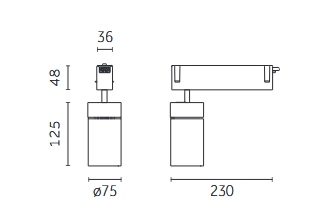

Ø 75 mm
Reggiani  Yori Channel - Spotlight
Ø 95 mm
