Louispoulsen Bollard Outer light

BOLLARD OUTER LIGHT

Louispoulsen Bollard Outer light

BOLLARD OUTER LIGHT

 Waterfront Dan Borgen Hasløv

The fixture emits 100% glare-free downward light. The light distribution is symmetric and soft.

The four supports create an comfortable symmetric light pattern at ground level.

Louispoulsen Bollard Outer light

INFORMATION

LIGHT SOURCE

- Lumen: 570
- Light Source Led 3000k 28w

PRODUCT TYPE

Waterfront Light

CLASS

- Ingress Protection Ip65
- Electric Shock Protection
- W. Ground -Ii W/o Ground. Ik10.

MATERIALS

-Housing: Die cast aluminium
-Top: Die cast aluminium
-Post: Extruded aluminium
-Base plate: Die cast aluminium
-Enclosure: Injection moulded clear polycarbonate

Louispoulsen Bollard Outer light

PRODUCTION

Made By Italy

BRAND

Louispoulsen

Louispoulsen Bollard Outer light

SIZES AND WEIGHTS

- Width : 265mm
- Height : 865mm
- Length : 265mm
-  Max : 19.3 Kg

FINISH

Aluminium coloured with textured surface or
graphite with textured surface, powder coated

ENVIRONMENTAL PRODUCT SPECIFICATION

This product is compliant with the requirements contained in the european directives, rohs directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.

Louispoulsen Bollard Outer light

MOUNTING

-In-ground Struts: Yes
-Looping: Approved -Max 5x2.5mm²
-Driver Positioning: In Fixture Head. Max
-Terminal Block Positioning: In Fixture Head
-Installation Cable: 1 Or 2x5x2,5mm² Or Depending On Installation Box
-Post f/in-ground installation: Height excluding fixture head: 1195mm, including 600mm below ground.
-Bollard With Base Plate For Surface Mounting: Height Excluding Fixture Head: 595mm. Post Diameter 210mm.

THE STORY BEHIND THE PRODUCT

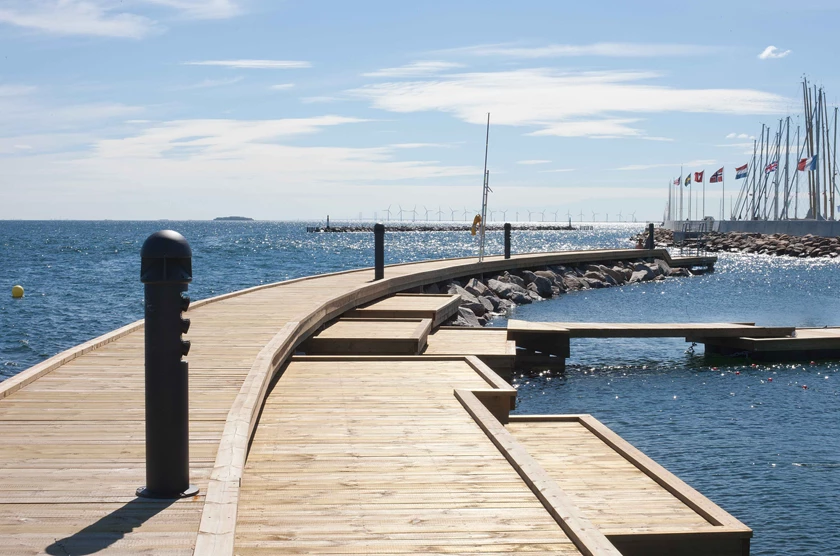

Waterfront was designed by Dan B. Hasløv in 1983 for Kaløvig harbour in Denmark. As a yachtsman, Dan B. Hasløv had often noted that there was far too little light along harbour fronts. He therefore developed a fixture head which could be mounted on top of the wooden poles commonly found in harbour environments. The fixture emits glare-free light directed downwards, making it easy for sailors to navigate. The fixture is also made from sturdy materials which can handle the harsh environment. Waterfront was later modified into a bollard.The LED version was launched in 2009.

INFORMATION

The intermediate ring solution is used when the fixture is to be mounted without post directly on a flat surface. The post and intermediate ring are delivered in the same colour as the fixture head. Detailed information about installation and looping possibilities can be found on our internet page. The fixture is ip65. The bollard pole door is ip44. Post for base plate installation is supplied without anchor bolts. Anchor bolts to be soured locally. The innovation of the led technology is constant. The specifications mentioned are based on present technology. Please contact louis poulsen for 2700k.
