Reggiani Yori Lighting System

YORI LIGHTING SYSTEM

Reggiani Yori Lighting System

YORI LIGHTING SYSTEM

Minimalism and rigour in the service of functionality, Yori is a high performance luminaire with a compact footprint.

Two simple bodies combined by a simple joint allow the optical section to be adjusted.

Reggiani Yori Lighting System

Yori is designed for the most innovative LED and metal halide lamps, and is configured for mounting on tracks, inside channels, recessed, onto surfaces and inside grooves in ceilings, thanks to the new version with telescopic boom.

Its versatility and elegant design make Yori the ideal solution for accent lighting in business, residential and exhibition spaces.

FEATURES

Reggiani Yori Lighting System

FEATURE 1

- Yori System offers high flexibility thanks its interchangeable accessories.
- All filter/lens holders have double slots so two accessories can be inserted together.

Reggiani Yori Lighting System

FEATURE 2

- Die-cast aluminium, with a wide range of finishes
- Interchangeable optical system, with Precision and Performance optics
- Built-in antiglare shield, and retracted optics for superior visual comfort

Reggiani Yori Lighting System

FEATURE 3

- Recessed (Yori Recessed Round and Square, Yori Semi-recessed)
- Track (Yori Evo Box, Yori Slot, Yori and Zoom+lightshaper)
- Modular (Yori Channel, Yori Channel Arm, Yori Edge)

INFORMATION

CONTROL OPTIONS

- On/Off
- Phase-cut
- Dimm 1-10V
- DALI

APPLICATION

- Track
- Recessed
- Modular

BRAND

Reggiani

LUMEN

215 lm - 4695 lm

USE

Interior lighting

MATERIAL

Metal

WATT

2.5 W - 37 W

IP

20

TECHNOLOGIES

- Warm Dimming
- Bluetooth

Reggiani Yori Lighting System

SIZE

Ø43mm, Ø60mm, Ø75mm, Ø95mm

KELVIN

2700 K, 3000 K, 4000 K

CRI

>80, >90, >95, >98

SDCM

<2, <3

TYPE OF LIGHT

LED

FEATURES

-For 3-circuit standard track
-Precision and Performance optics -Wide range of accessories available -CRI: > 80, > 90, >95, >98

LIGHT SOURCE

- Power LED
- Cob LED

COLLECTION

Reggiani Yori Lighting System

YORI EVO BOX - PRO

Yori Pro is an exciting update to the Yori family, our most efficient, elegant and flexible projector. Yori Pro has incredible precison and performance optics and is available in two sizes: Ø35 and Ø43mm – it goes above and beyond in creating accent lighting.

Reggiani Yori Lighting System

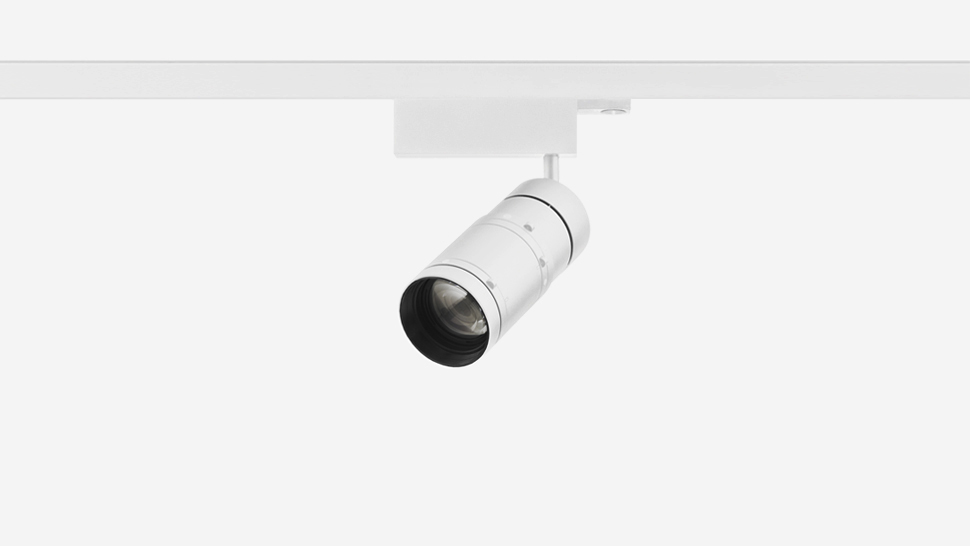

YORI EVO BOX

The Yori Box projector has been developed and advanced to create Yori Evo Box, which extends the specific features of the Yori Box range to a new, powerful luminaire with a simple, elegant design. It comes in four sizes and has an outstanding lumen output up to 4520 lm. It offers a wide range of control systems, including Dimmer on board and Bluetooth. The accessories that complete this family make it even more versatile.

Reggiani Yori Lighting System

YORI SLOT

Yori Slot was designed to meet specific needs where flexible luminaire use is taken to new heights. The projector incorporates a supplementary adjustable arm that connects the top of the luminaire with the rest of the lighting body. For concealed installation in coves and architectural details, the arm can be used to adjust the projector in opposite directions, with the visible parts of the lighting body remaining in line.

Reggiani Yori Lighting System

YORI ZOOM+LIGHTSHAPER

Yori Zoom+Lightshaper is an extraordinary advance in lighting, featuring high performance and flexibility in a single luminaire. The five lenses inside the aluminium body facilitate adjustment of the light beam (Zoom), the size of the shapes (Diaphragm) and their sharpness (Focus). It integrates perfectly with the Yori projector and offers both square and round light frames. Zoom+Lightshaper is also available as an accessory.

Reggiani Yori Lighting System

YORI RECESSED ROUND

Yori Recessed is available in the one-spot and two-spots recessed versions (with bezel or trimless); the projector body comes in two sizes and a range of wattages and light beams. The mechanical extraction and adjustment system of the optics facilitates flexible, precise adjustment that can meet the lighting requirements of different settings.

YORI RECESSED SQUARE

Yori Recessed is available in the one-spot and two-spots recessed versions (with bezel or trimless); the projector body comes in two sizes and a range of wattages and light beams. The mechanical extraction and adjustment system of the optics facilitates flexible, precise adjustment that can meet the lighting requirements of different settings.

Reggiani Yori Lighting System

YORI RECESSED SQUARE DOUBLE

Yori Recessed is available in the one-spot and two-spots recessed versions (with bezel or trimless); the projector body comes in two sizes and a range of wattages and light beams. The mechanical extraction and adjustment system of the optics facilitates flexible, precise adjustment that can meet the lighting requirements of different settings

Reggiani Yori Lighting System

YORI CHANNEL

The Yori Channel projector is built into a bespoke designed aluminium rail for surface installation or recessed trimless mounting. The highly compact mounting rail means the projector discreetly blends into its surroundings. The lighting bodies of Yori Channel incorporate the standout features of the Yori range such as retracted optics, advanced technology lenses and optics, plus a wide range of accessories.

Reggiani Yori Lighting System

YORI CHANNEL ARM

Yori Channel arm is a projector fitted with a special articulated arm for luminaire adjustment. Its features make it perfect for cove installations in confined spaces. The joint is so versatile that the projector can be adjusted to the perfect position even without protruding from the false ceiling.

Reggiani Yori Lighting System

YORI EDGE

Yori Edge is the solution developed for integration in coves, architectural details and cornices. The lighting body is fitted with a 4-point adjustable articulated arm, has a practical mechanical connector for 3-circuit track and a remote driver with adapter for 3-circuit track (On/Off and Dimm/DALI) to be positioned in the false ceiling.

The luminaire assembly is completed by a linear aluminium mounting rail to be integrated in the ceiling and smoothed, available in linear, corner and T modules plus a cover to give the cove an elegant, understated look.  The wide range of accessories means Yori Edge can be adapted to environments with different architectural features, making this luminaire flexible, high performance and virtually invisible. The projector with remote driver must be ordered separately from the aluminium mounting rail.
