Speclight IF03RMF Wall/Ceiling Lights

Thu Nov 04, 2021Ceiling Lamps, Wall LampsAluminium, SteelGrey

IF03RMF WALL/CEILING LIGHTS

IF03RMF WALL/CEILING LIGHTS

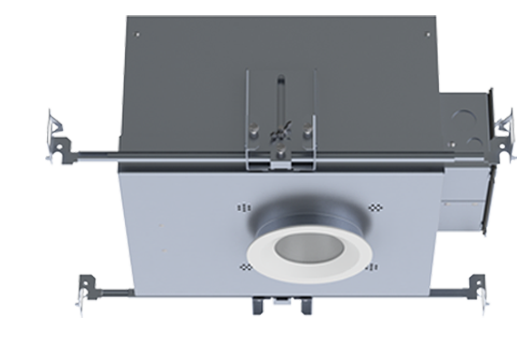

3" Dim To Warm Round Downlight - 1321Lm

Versatile shallow plenum 3" round recessed LED luminaire features downlight, adjustable accent, wall wash and pinhole downlight trim options with new construction, insulated ceiling and retrofit housings.

Two-stage optical system for smooth low glare light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets.

Expandable bar hangers with horizontal range of 14.2"-26", and vertical adjustment of 1.75" for Non-IC housing and 2.325" for IC housings. Posi-lock trim retention springs. Integral 0.625" collar, works with up to 1" ceiling. For thicker ceilings consult factory.

FEATURES

TRIM FINISH

A variety of architectural powdercoat finishes are available. Trims available with and without lens. Specify trim finish and flange finish.

ELECTRONICS

Dim to Warm offering a familiar dimming experience to traditional incandescent lamps (3000K-1600K). All options feature 3-step MacAdam Ellipse binning and 95 CRI 0-10V or phase-cut dimming to 1%, standard.

CONSTRUCTION

Housing/frame constructed of #20 ga. galvanized steel to resist corrosion. Self-flanged one piece die-cast aluminum trim is finished to specification. Passive machined aluminum heatsink.

CODE COMPLIANCE

BAA Compliant. ETL certified to meet US and Canadian standards. Suitable for dry or damp locations. Optional Wet Location. Manufactured and tested to UL standards No. 1598/8750. JA8 pending. City of Chicago Environmental
Air (CCEA), and Insulated Ceiling (IC) options available

APPLICATION

Versatile shallow plenum 3" round recessed LED luminaire features downlight, adjustable accent, wall wash and pinhole downlight trim options with new construction, insulated ceiling and retrofit housings.

SYSTEM

Two-stage optical system for smooth low glare light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets. Expandable bar hangers with horizontal range of 14.2"-26", and vertical adjustment of 1.75" for Non-IC housing and 2.325" for IC housings. Posi-lock trim retention springs. Integral 0.625" collar, works with up to 1" ceiling. For thicker ceilings consult factory.
