Wilkhahn Office Swivel Chair 28 Range
OFFICE SWIVEL CHAIR 28 RANGE
OFFICE SWIVEL CHAIR 28 RANGE
Office Swivel Chair Modus Basic/compact / 28 Range - Design: Klaus Franck, Werner Sauer And Wiege, Fritz Frenkler, Justus Kolberg
Minimal materials used. Maximum transparency. Perfect adjustment.
Following a maxim of simplicity, some 30 years ago designers Klaus Franck and Werner Sauer created the FS line which became a classic example of dynamic seating. Modus was the two designers’ translation of the principle to the aesthetics of the 21st century.
The flexible, fork-shaped backrest made of unbreakable, high-efficiency plastic is covered with an exchangeable, breathable high-tech fabric. Without any upholstery, the backrest adapts to the shape, posture and movement of the person sitting on it.
With its soft and rounded front edge, the breathable, upholstered seat allows the body to relax and prevents the pelvis from tilting. Because they are easy to exchange, the covers and upholstery guarantee the chair’s useful life is virtually unlimited.
The particularly comfortable and extremely compact automatic synchro-adjustment with torsion springs ensures the seat and backrest are lowered in perfect sync with your body. The stylish swivel arms, made of high-quality die-cast aluminium, are functional and design elements in equal measure.
It is no surprise that Modus has become an international benchmark for a new generation of office chairs. Much talked-about, but still one of a kind, it has remained in a class of its own till today: Dynamic seating at its best.
INFORMATION
BRAND
Wilkhahn
PRODUCTION
Made in Germany
PRODUCT TYPE
Office Swivel Chair Modus Basic/compact
DESIGNERS
- Klaus Franck
- Fritz Frenkler
- Justus Kolberg
- Werner Sauer and Wiege
MATERIAL
Aluminium
PROPERTIES
Certification
SEAT
Seat shell in black, viscoelastic polypropylene. Cushioning: covered polyurethane one-piece moulded foam. Replaceable cover. Side facing: black polyamide for fabric cover and embossed leather in the same colour for leather cover.
CANTILEVER CHAIRS-
Frame made of round steel tubing, bright chrome-plated, matt chrome-plated or coated, with anti-tilt stoppers as the standard version for carpeted floors; with additional glides for hard floors, with additional felt insert on request.
CONFERENCE AND VISITOR CHAIRS
Model 281/5 with a four-star seat
bearer made of die-cast aluminium, coated in the same colour to match the star base, polished or bright chrome-plated.
CHARACTERISTICS
-Sustainable -Designed around the concept of the “Human-centered Workplace”, made in Germany
USE
Interior Furniture
APPLICATION
Corporate
FUNCTION
Task chair with covered backrest and automatic synchro-adjustment: the seat and backrest tilt adapt automatically to any posture the user adopts. When leaning back, the backrest tension increases proportionately. The person sitting on the chair can adjust the tension precisely. The chair can be locked in the front position by engaging a lever. DIN 4550 compliant gas lift for precision adjustment of the seating height. Swivel-mounted conference/visitor chairs with automatic synchro-adjustment and precision adjustable height, optionally with rigid, four-star seat bearer or as a cantilever chair.
BACKRESTS
Task and Visitor Chairs
Glass-fibre-reinforced black polyamide frame. Replaceable frame cover made of black polyamide closed-weave or transparent fabric, padded when in the closed-weave version. At the front, non-transparent material can optionally be covered and padded with cut foam.
Standard height and medium height backrest with crescent shaped grip, with a fabric cover, covered with black embossed leather, if with a leather cover to colour-match the leather. High backrest with curved shoulder support, in the case of fabric covers covered with black embossed leather, with leather colours to colour-match the leather. Task chair with height-adjustable lumbar support on request.
FRAME
Task chair Five-star, die-cast aluminium base, coated, polished or bright chrome-plated. Conference/visitor chairs with four-star, die-cast aluminium base, coated, polished or bright chrome–plated. Twin wheel swivel castors with load-dependent braking, made of black polyamide compliant with DIN EN 12529 as the standard version for carpets; with grey soft polyurethane tyre for hard floors. Castors optionally electrically conductive.
Black polyamide glides as the standard version for carpeting, with polyurethane glides for hard flooring. Die-cast aluminium swing plates, coated in the same colour to match the star base, polished or bright chrome- plated. Black-coated sheet steel mechanism shell. Conference/visitor chair model 281/91 with a four-star seat bearer made of die-cast aluminium, coated in the same colour to match the star base, polished or bright chrome-plated.

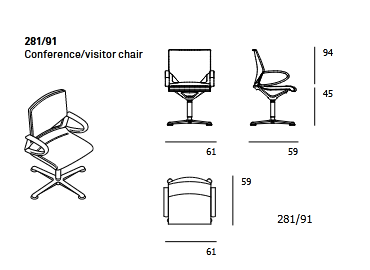

TECHNICAL DRAWINGS
MODUS MEDIUM
28 Range
Models and Dimensions.
MODUS EXECUTIVE
28 Range
Models and Dimensions.
FINISHES
FRAME SURFACES, STAR BASES AND SWIVEL ARMS
-Bright Chrome-plated -Polished Aluminium -Coated Black -In A Silver Satin Finish -Matt Chrome-plated Instead Of Polished Cantilever Chair
UPHOLSTERY MATERIAL
-54 Pitch -60 Blend -62 Bond -63 Auris -66 Lona -68 Kvadrat Remix 2 -69 Granit -74 Leather -87 Leather -91 Kvadrat Steelcut Trio 3
