LUMISTIK STREET LIGHTING COLUMNS

Luminis Lumistik Cl620, Cl640, Cl670  Street Lighting Columns

LUMISTIK CL620, CL640, CL670 STREET LIGHTING COLUMNS

INFORMATION

MOUNTING TYPE

- Wall
- Wall ADA

SIZE

- 6” diameter
- 8” diameter

BRAND

Luminis

PRODUCT FAMILY

Lumistik

CONTROLS

Nlight Enabled

MOUNTING TYPE

Column

SOURCE

LED

PRODUCTION

Made in Canada

FINISH

Five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process, and oven cured for long term finish

CERTIFICATION

Certified and Approved as per CSA C22.2 No.: 250.0 standard and ANSI/UL 1598 standard, for wet location. Rated IP65. Photometric testing performed by an independent laboratory in accordanc  with IES LM-79-08 standards at 25ºC. Lumen depreciation in accordance with IESNA LM80 standards.

MOUNTING

LumiSTIK column is designed for ease of access and installation. See page 3 for mounting details.

FEATURE

1. Heavy cast aluminum top cover with embedded heat sink.
2. Ø 6” (152mm) High impact white translucent acrylic diffuser UV stabilized.
3. LED array.
4. Ø 6” (152mm) Extruded aluminum column.

Luminis Lumistik Cl620, Cl640, Cl670  Street Lighting Columns

MATERIALS

-LumiSTIK column is made of 6061-T6 extruded aluminum alloy. All other cast parts are corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1% -LED boards are contained in a white UV stabilized high impact acrylic sealed cylinder. The assembly is designed to provide a uniform column illumination. LumiSTIK column is available in three standard acrylic lengths. Other lengths are available on request.

Luminis Lumistik Cl620, Cl640, Cl670  Street Lighting Columns

ENHANCE YOUR SPACE

Complete family of bollards, columns, pendants and wall luminaires available in various heights and diameters. An innovative solution to accent light in various directions and to emphasize multiple elements creating unique spaces.

ELECTRICAL

-Driver : Standard driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), operating temperature range of -40ºC to +55ºC/-40ºF to +131ºF, output over voltage protection, output over current protection and output short circuit protection with auto-recovery. Driver for RGBW is DMX512 / RDM compatible.
-LED : 2700K/3000K/3500K/4000K CCT with 80 CRI. Optional RGBW.
-50,000hrs L85B50 (based on IESNA TM-21 Test Method and LM-80 data).

APPLICATIONS

Ideally suited for unique site lighting applications where public space enhancement is the goal.

Luminis Lumistik Cl620, Cl640, Cl670  Street Lighting Columns

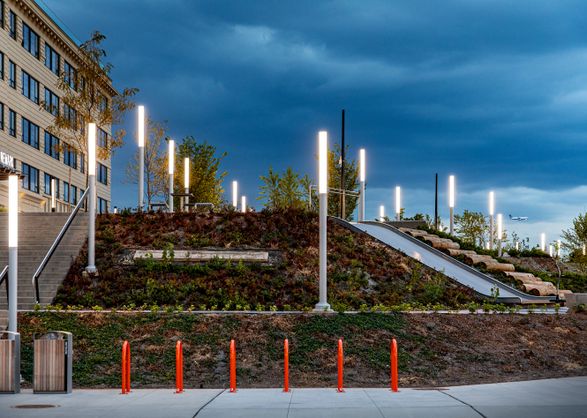

GALLERY
