RELAY RLY2 PENDANT SYSTEM
RELAY RLY2 PENDANT SYSTEM
FEATURES
ANGLES

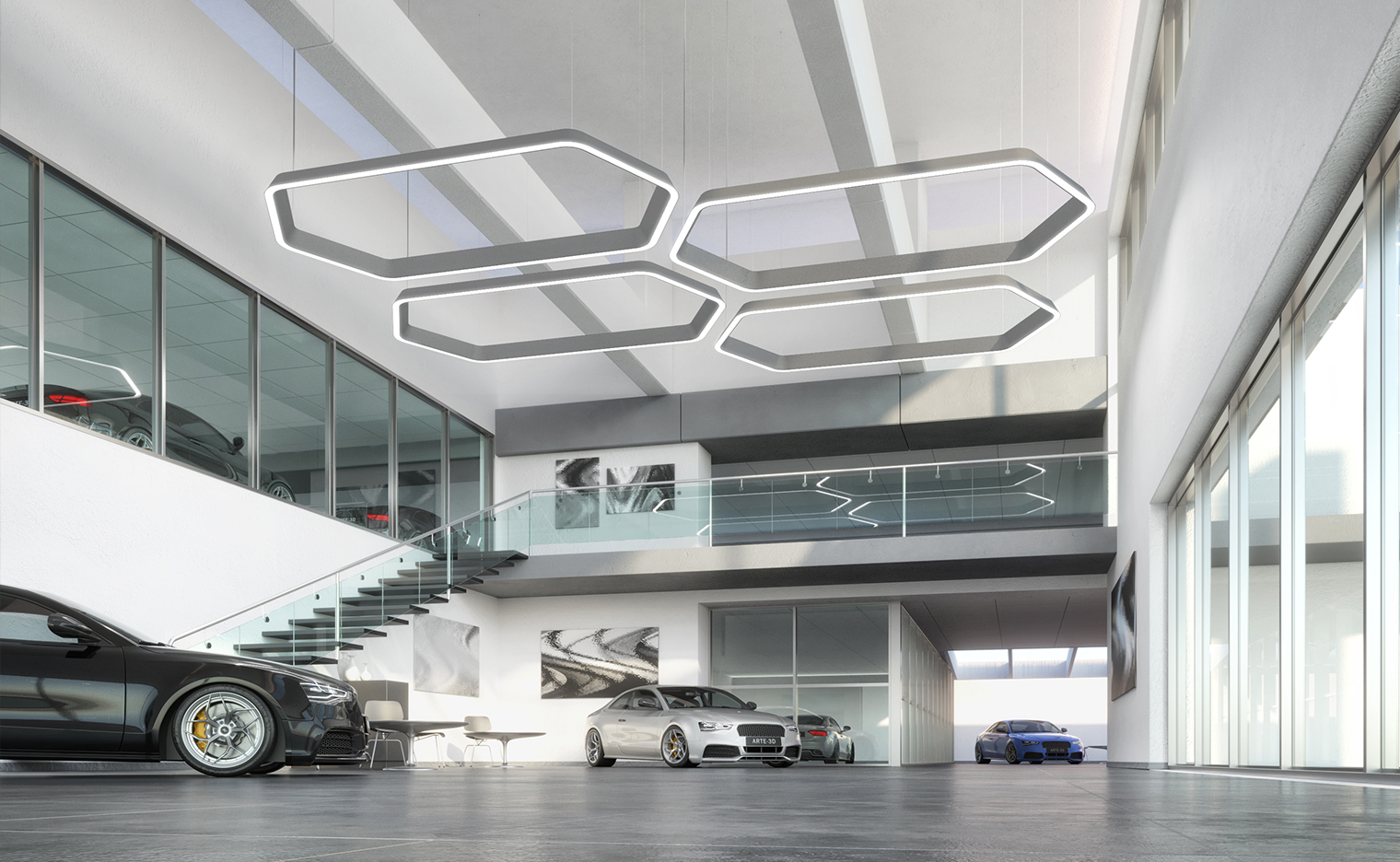

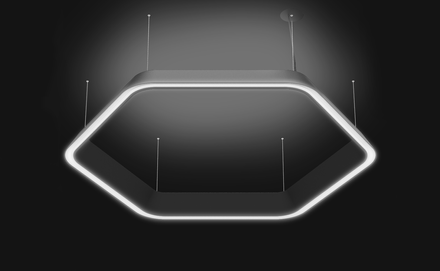

Relay is a direct/indirect pendant system with 90° and 120° angles, enabling designers to configure diverse geometric patterns with a seamlessly lit shape. Relay luminaires are designed for high ceilings such as offices, libraries, high-end retail or food markets, and upscale gyms and recreational facilities such as yoga studios.
LIGHT
High-performance TIR optics provide controled and efficient light. The lbackground-color: rgba(236, 236, 248, 1)uminaire can be specified with direct or indirect illumination, or a combination of both. Relay’s direct lighting offers reduced glare continuous illumination throughout the fixture, including corners. Indirect lighting features a batwing distribution, to highlight ceiling elements.
CONTROL
Additional flexibility is available with a tunable white option or dim to warm, with a range from 2700K to 5000K, which can be configured with nLight® wireless lighting control solutions.
PANELS
Acoustic panels may be added to the fixture in four standard and 26 premium colors to complement or accentuate an aesthetic, while absorbing ambient sound in a space. Polyester felt panels, manufactured with recycled plastic bottles (PET), are 100% recyclable.
INFORMATION
STRUCTURE
Robust, high-quality precision recycled aluminum extruded housing. Laser-cut and precision bent sheet metal components and brackets.
BRAND
A-Light
LOCATION
Interior
PRODUCT FAMILY
Relay
APPLICATION
Dry location
FINISH
Electrostatically applied powder coat finish. Standard finish options include titanium, white and black. Other colors and custom finish options available, specify RAL# or contact factory regarding custom finish requirement.
USE
Interior pendant light
SOURCE
LED
MOUNTING TYPE
Suspended
OPTICS
-Direct: The light source is reflected off a high-performance specialty film to render a smooth, powerful and controls output. The light engine design enables an uninterrupted line of light all around the profile.
-Indirect: High efficiency TIR lenses are used to provide high quality precision optics. The output option offered are Batwing wide, Batwing Extra-Wide, Asymetric in (to orient light inside the profile) and Asymetric out (to orient light outside the profile).
DISTRIBUTION
DOWNLOADS
↓ RLY2 Spec Sheet
LED DIMMING DRIVER
Factory tuned constant current electronic 0-10V control dimming driver is standard. Specification grade dimming down to 1%. Driver life of 50,000 hrs with an ambient operating temperature range of -30°C to 50°C, maximum case temperature of 75°C. Electrical specifications at maximum driver load: PF >0.9, THD <20%, >85% Efficiency. Other available drivers include Lutron Eco-system H-series (LDE1): Hi-lume™ 1% LED dimming driver with Soft On, Fade to Black; and DMX and DALI protocol drivers. Other Lutron and specialty drivers available, contact factory.
LED LIGHT SOURCE
Custom manufactured round and linear boards array uses highperformance Nichia® LED in combination with a performancedriven heat sink technology. Tested in accordance with LM-79 and LM-80; L70>60,0000hr; operated at reduced output for high efficacy and lumen maintenance. 2700k, 3000K, 3500K, and 4000K with 80+ CRI standard; other color temperatures and 90+ CRI available upon request, contact factory.
White tuning and dim to warm are also available in a 2700k-5000k color temperature range, but not in 90+ CRI. LED color variation maintained at a 3-step MacAdam ellipse (SDCM 3x). Refer to photometry for delivered lumens.
CHARACTERISTICS
Lens-free direct illumination with fully lit corners and reduced glare, high performance indirect TIR optics, suspended mounting, with 90° and 120° corner angles for shape freedome, nLight® enabled.
MOUNTING
Aircraft cable set includes one 48” standard length 1/16 stainless steel adjustable aircraft cables with secure mini grippers to field set suspension length par corners, it comes pre-installed in the fixture by the factory. 4-1/2” round canopy and cord strain relief are also included. Please refer to installation sheets for mounting weight requirements. Power cord options available for aircraft cable.
A black power cord is provided for black and titanium finish, a white power cord is provided for all other fixture finishes unless otherwise specified. All canopies are white, unless otherwise noted.
NLIGHT ® AIR WIRELESS
The integrated API smart sensor is part of each luminaire in the nLight® AIR network, which can be grouped to control multiple luminaires. The granularity of control with the digital PIR occupancy detection and daylight sensing makes a great solution for any application. Optionally you can order nLight® AIR less sensors for compatibility with an nLight Air wireless system. The rIO, rES7, rMSOD, and rCMS models are available for integration.
CONTROLS
Low-profile integral occupancy and daylight sensors are available to deliver high-performance lighting control in any space.
