Spectrum Lighting LED Downlight - Enviro Lights

SGRTA8BX LED Downlight Enviro Lights

SGRTA8BX LED DOWNLIGHT ENVIRO LIGHTS

8" A Spec Round Retrofit Adjustable - 8000Lm

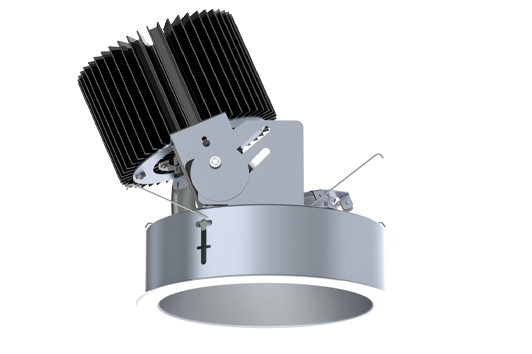

8" round open aperture deep regressed Retrofits high output LED adjustable accent for high ceiling illumination in malls, churches and commercial applications. LED module tilts 35°, rotates 360°.

Spectrum Lighting LED Downlight - Enviro Lights
Spectrum Lighting LED Downlight - Enviro Lights

Two-stage optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Tool-less driver and j-box access. Posi-lock trim retention torsion springs.

information

TRIM FINISH

A variety of architectural powdercoat and anodized finishes are available.

SHAPE

Round

APPLICATIONS

Exterior

LAMP SOURCE

LED

OPTIONS & ACCESSORIES

Integral EM Battery

USE

Accent and general illumination

TRIM TYPE

- Adjustable
- Flange

CHARACTERISTICS

-Self-flanged, wildlife-Friendly -Universal housings with interchangeable trims

CERTIFICATION

ETL Certified

TYPES OF LIGHTING

LED

DIMMING PROTOCOL

-0-10v  -Bluetooth Wireless  -DALI -DMX -ELV  -Forward-Phase -MLV

FEATURES

LED module tilts 35°, rotates 360°. Two-stage optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Tool-less driver and j-box access. Posi-lock trim
retention torsion springs.

INSTALLATION TYPE

Retrofit & Remodel

CRI

-80 CRI -90 CRI

APERTURE

8 In.

MATERIAL

Metal

ELECTRONICS

LED module features high brightness white Bridgelux® LEDs. 3-step MacAdam Ellipse binning and CRI 80 or 90. 2-step MacAdam Ellipse binning available, consult factory. 1% 0-10V dimming offered standard.

CONSTRUCTION

Housing constructed of #20 ga. galvanized steel to resist corrosion. Self-flanged one piece trim spun from 0.063" thick high purity aluminum and finished to specification.

COLORS

-Matte White -Matte black -Platinum silver

CCT

- 2700k
- 3000k
- 3500k
- 4000k

RATINGS & COMPLIANCE

-Buy American Act -LM79  -LM80 -Made in America -Non-IC -TM21  -Wet

Spectrum Lighting LED Downlight - Enviro Lights
