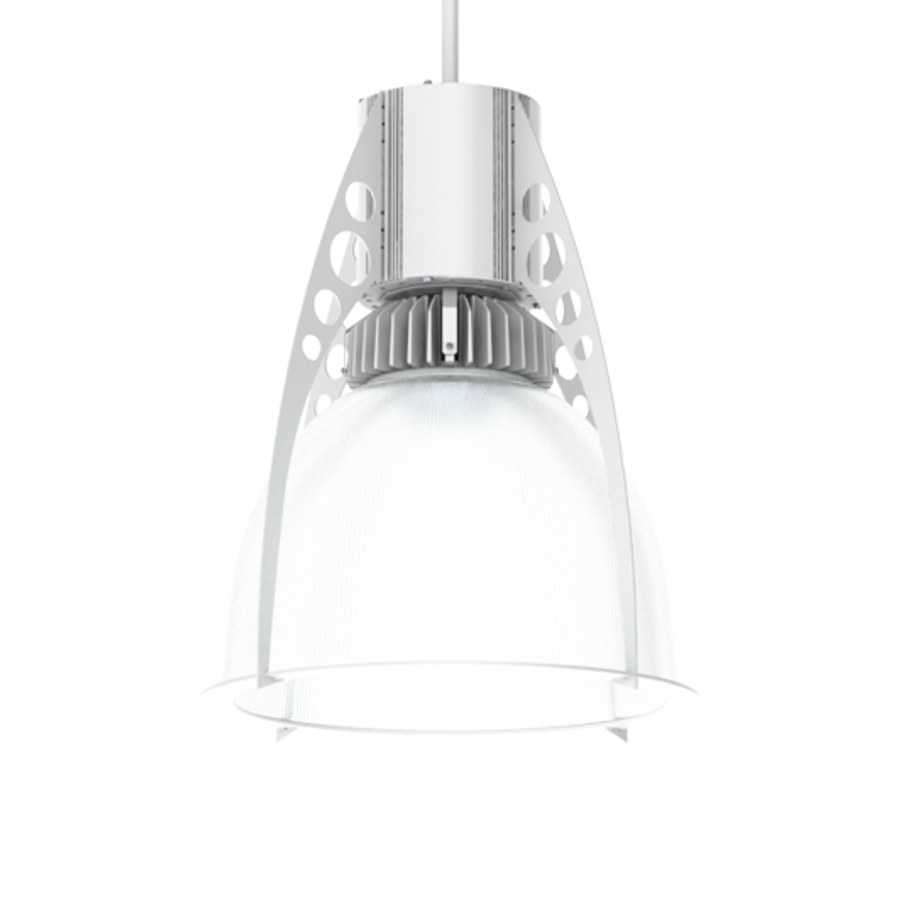

Spectrum Lighting PRAF16LX Pendant Light

PRAF16LX PENDANT Light

Spectrum Lighting PRAF16LX Pendant Light

PRAF16LX  PENDANT LIGHT

16" Prismatic - 14000Lm


16" Arc Pendant evokes industrial age designs while using the latest LED technology for excellent general illumination. Prismatic refractor provides horizontal and vertical distribution. Laser cut decorative arm.

Extruded Fixture Housing (EXT). Single-stage optical system for smooth light distribution. LED module and driver designed for ease of maintenance and replacement.Optional safety cable. Variety of mounting methods.

INFORMATIOMN

BRAND

Spectrum Lighting

PRODUCT TYPE

Pendant Light

CCT

- 2700 K
- 3000 K
- 3500 K
- 4000 K

LUMENS

- 6500 Lm
- 10000 Lm
- 13000 Lm
- 14000 Lm

SPECIFICATION LIGHT

Spectrum Lighting PRAF16LX Pendant Light
ABCDE
17.6447.0 mm11.4289.6 mm10.6269.2 mm22.0558.8 mm6.5165.1 mm

DIAMETER

16 In.

Spectrum Lighting PRAF16LX Pendant Light

RATINGS & COMPLIANCE

- Buy American Act
- Made in America

CODE COMPLIANCE

BAA compliant. ETL certified to meet US and Canadian standards. Suitable for dry or damp locations. Manufactured and tested to UL standards No. 1598/8750.

CRI

80 CRI

MATERIAL

Metal

FINISH

Multi-stage polyester powder-coat process applied on our dedicated paint lines.Variety of standard and custom finishes are available. All exposed materials are chromate pretreated to resist corrosion.

Spectrum Lighting PRAF16LX Pendant Light

FEATURES

-Spectrum’s Cylinder series provides traditional architectural style with    high performance energy efficient illumination. -Rugged design with flexible mounting, finish and LED options make these extremely versatile fixtures. -Quick change LED module with interchangeable optics for job site flexibility and fixture upgrade.

APPLICATION

16" Arc Pendant evokes industrial age designs while using the latest LED technology for excellent general illumination. Prismatic refractor provides horizontal and vertical distribution. Laser cut decorative arm

CONSTRUCTION

Extruded and machined 6063-T5 aluminum housing. Graphite gasket for optimal thermal management. Die-cast aluminum heat sink. Refractor made of cast UV stabilized acrylic. ARC pendant arms and deco ring are laser cut 5052 aluminum.

ELECTRONICS

LED system features high brightness white Nichia LEDs. 3-step MacAdam Ellipse binning. Standard CRI: 80+. Higher CRI, R9 and custom LED configurations are available; consult factory. Variety of electronic 120V/277V and dimming drivers. LED module is 2 circuit with 2 drivers for multicircuit option.

LUMENS / WATTAGE DATA

PART
NUMBER
SOURCE
LUMENS1
DELIVERED
LUMENS2
SYSTEM
WATTS
LPW
PRAF16LX65L6500558756.299
PRAF16LX100L10000838181.1103
PRAF16LX130L1300011025103.9106
PRAF16LX140L1400011872111.9106

FINISHES

STANDARD FINISHES

-Matte White -Gloss White -Platinum Silver -Matte Black -Gloss Black -Bronze

Spectrum Lighting PRAF16LX Pendant Light

TYPICAL FINISHES

-Textured White -Textured Black -Textured Silver -Oil Rubbed Bronze
-Sun Gold -Copper Metallic -Brecchia -Graphite -Charcoal -Almond -Verde Green

Spectrum Lighting PRAF16LX Pendant Light

-Blue Streak -Red Baron -Orange -Camel -Purple -Pub Green -Turquoise -Sea Foam -Pink -Aero Yellow -Evergreen

Spectrum Lighting PRAF16LX Pendant Light

-Lime Green -Light Blue -Burgundy -Anodic Black -Anodic Malachite -Anodic Bronze -Anodic Sapphire -Anodic Natural -Anodic Champagne

Spectrum Lighting PRAF16LX Pendant Light
