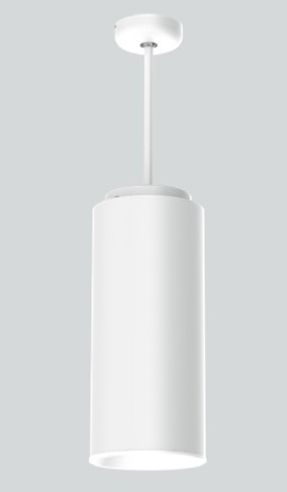

Spectrum Lighting 8" Round Direct Ceiling Mount Light

8" ROUND DIRECT CEILING MOUNT LIGHT

Spectrum Lighting 8\

 8" ROUND DIRECT CEILING MOUNT LIGHT

C0812XT, C0816XT, C0824XT

8" round x 12", 16" or 24" high 8" diameter cylinder luminaire for accent and general illumination. Spectrum’s Cylinder series provides traditional architectural style with high performance and energy efficient illumination. Rugged design with flexible mounting, finish and LED options make these extremely versatile fixtures. Quick change LED module with interchangeable optics for fixture upgrade.

INFORMATIon

DIMMING PROTOCOL

- 0-10 V
- ELV
- MLV

BRAND

Spectrum Lighting

TYPE

Ceiling Light

MATERIAL

Metal

LAMP SOURCE

LED

SHAPE

Round

APERTURE

8 In.

Spectrum Lighting 8\

DISTRIBUTION

- Medium
- Narrow
- Very Narrow
- Very Wide
- Wide

SPECIFICATION LIGHT

SERIESAB
C0812XTC0816XTC0824XT8.08.08.012.116.124.1
Spectrum Lighting 8\

CCT

- 2700 K
- 3000 K
- 3500 K
- 4000 K

LUMENS

- 2000 Lm
- 1000 Lm
- 1300 Lm
- 3000 Lm

CRI

83 CRI & 98 CRI

RATINGS & COMPLIANCE

- Buy American Act
- Made in America

APPLICATION

8" round x 12", 16" or 24" high 8" diameter cylinder luminaire for accent and general illumination.

ELECTRONICS

-LED system features Xicato LED module with proprietary phosphor technology that provides consistent stable color with CCT control of +/- 100K over life of the light engine. -Base CRI is 83 with 2-step MacAdam Ellipse binning. -High CRI is 98 with 1 x 2-step -MacAdam Ellipse binning. Variety of electronic 120V/277V and dimming drivers.

Spectrum Lighting 8\

CONSTRUCTION

-Fabricated seamless aluminum fixture housing. Silicone gasket seals optical chamber. -Specular primary optical reflectors provide high efficiency illumination. Impact resistant tempered glass lenses. -Stainless steel hardware with galvanized steel brackets to resist corrosion. -Trim formed from .063 thick high purity aluminum and finished to specification

FINISH

Multi-stage polyester powder-coat process applied on our dedicated paint lines. See
mounting and color pages for standard finishes. All exposed materials are chromate
pretreated to resist corrosion.

CODE COMPLIANCE

BAA compliant. ETL certified to meet US and Canadian standards. Suitable for dry or damp locations. Manufactured and tested to UL standards No. 1598/8750.

FEATURES

-Spectrum’s Cylinder series provides traditional architectural style with high performance and energy efficient illumination. -Rugged design with flexible mounting, finish and LED options make these extremely versatile fixtures. -Quick change LED module with interchangeable optics for fixture upgrade

LUMENS / WATTAGE DATA

PARTNUMBERSOURCELUMENS1DELIVEREDLUMENS2SYSTEM WATTS3LPW
C0812XT10L10007609.184
C0812XT13L1300102413.079
C0812XT20L2000157521.773
C0812XT30L3000236332.672

STANDARD FINISHES

-Matte White -Matte Black -Platinum Silver

Spectrum Lighting 8\
Spectrum Lighting 8\
Spectrum Lighting 8\

MOUNTING TYPES

Spectrum Lighting 8\
Spectrum Lighting 8\
AB
5.01.5
127.0 mm38.1 mm
Spectrum Lighting 8\
Spectrum Lighting 8\
AB
5.0.25
127.0 mm6.4 mm
Spectrum Lighting 8\
Spectrum Lighting 8\
SERIESAB
C0812XT
6.21.2
C0816XT6.21.1
