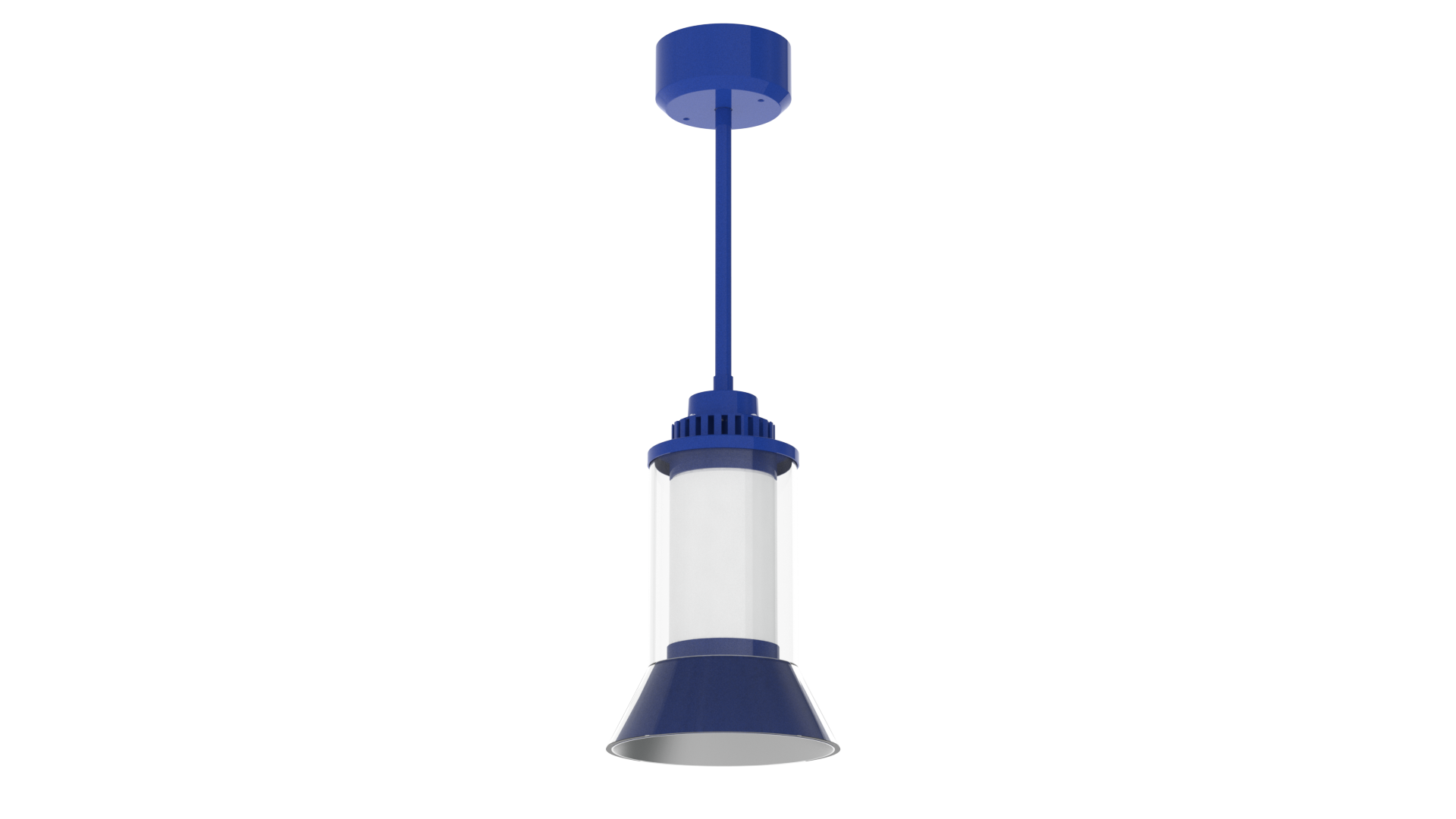

Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm

Af0812coafialedgv Gene Pendant 1500 Lm

AF0812COAFIALEDGV GENE PENDANT - 1500 LM

Gene Pendant features two layers of cast optical acrylic with conical aluminum shade to create a visually interesting area light. Speclume series fixtures offer contemporary style with functional luminaire performance. All fixtures are designed and manufactured in our factory. The Gene Pendant is one of the more complex designs with multiple layers of acrylic and aluminum. LED Driver in canopy for thermal management. A variety of mounting.

Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm

information

CHARACTERISTICS

- Led Technology
- Choice Of Color And Finishes
- Up To 1500 Lumen

RATINGS & COMPLIANCE

- Buy American Act
- Made in America

USE

Interior

COLORS

CERTIFICATION

EtL Certified

CRI

80 CRI

CCT

- 2700k
- 3000k
- 3500k
- 4000k

DIMMING PROTOCOL

- 0-10 V
- ELV
- Forward-Phase
- MLV

LUMENS

- 1500 Lm
- 2700 Lm

APPLICATIONS

Decorative Lighting

LAMP SOURCE

LED

DOWNLOADS

↓ Specsheets

COLORS

Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm
PT - Platinum Silve
Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm
BL - Blue Streak
Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm
PG - Pub Green
Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm
SN - Sun Gold

FEATURES

Speclume series fixtures offer contemporary style with functional luminaire performance. All fixtures are designed and manufactured in our factory. The Gene Pendant is one of the more complex designs with multiple layers of acrylic and aluminum. LED Driver in canopy for thermal management. A variety of mounting options are available. LED module and driver are serviceable for future replacement.

FINISH

Multi-stage polyester powder-coat process applied on our dedicated paint lines. See mounting and color pages for standard finishes.

ELECTRONICS

GV LED system features high brightness white Samsung LED’s. 3-step MacAdam Ellipse binning. Standard CRI: 80+. Higher CRI, R9 and custom LED configurations are available; consult factory. Variety of electronic 120V/277V and dimming drivers.

APPLICATION

Gene Pendant features two layers of cast optical acrylic with conical aluminum shade to create a visually interesting area light.

SIZE

Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm
288.54 mm

CONSTRUCTION

Spun aluminum machined and fabricated UV stabilized acrylic

CODE COMPLIANCE

BAA compliant. ETL certified to meet US and Canadian standards. Suitable for dry or damp locations. Manufactured and tested to UL standards No. 1598/8750.

Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm
Hang Straight / All Thread / Pendant
Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm
Cord / Cable Mount
Spectrum Lighting Af0812coafialedgv Gene Pendant - 1500 Lm
Cord Mount

CEILING MOUNT

- AF0812COAFIAGV SHOWN WITH RDC5PM
- AF0812COAFIAGV SHOWN WITH RDC5CD
- AF0812COAFIAGV SHOWN WITH RDC5CM
