Spectrum Lighting CK0407SQXT Ceiling Mount Light

CK 0407SQXT CEILING MOUNT LIGHT

Spectrum Lighting CK0407SQXT Ceiling Mount Light

CK0407SQXT CEILING MOUNT LIGHT

4" Square Pico Series - Conduit Mount

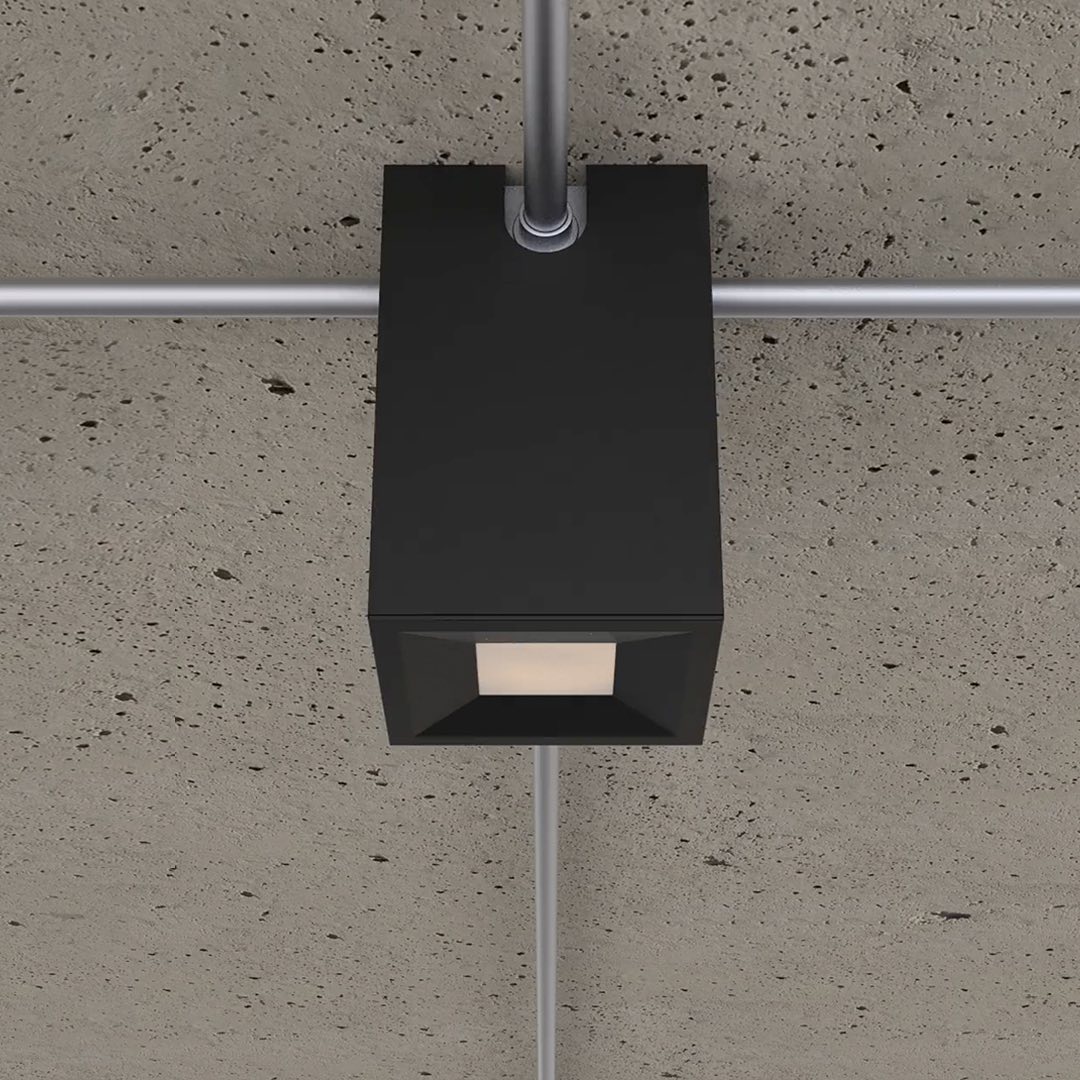

4" square x 7" high surface mount cylinder luminaire designed for general illumination in spaces with exposed conduit and 4" surface-mounted octagonal junction boxes.

Spectrum’s Cylinder series provides traditional architectural style with high performance and energy efficient illumination. Rugged design with flexible mounting, finish and LED options make these extremely versatile fixtures. Integral LED driver. Quick change LED module for job site flexibility and fixture upgrade.

INFORMATION

CRI

- 83 CRI
- 98 CRI

LUMENS

- 1000 Lm
- 1300 Lm

RATINGS & COMPLIANCE

- Buy American Act
- Made in America

BRAND

Spectrum

USE

Light fixture

LAMP SOURCE

LED

APPLICATION

Interior

COLLECTION

Lighting CK0407SQXT

ELECTRONICS

LED system features Xicato LED module with proprietary phosphor technology that provides consistent stable color with CCT control of +/- 100K over life of the light engine. Base CRI is 83 with 2-step MacAdam Ellipse binning. High CRI is 98 with 1 x 2-step MacAdam Ellipse binning. Variety of electronic 120V/277V and dimming drivers.

APERTURE

4 In.

PRODUCT TYPE

Light

SHAPE

Square

DISTRIBUTION

Very Wide

CONSTRUCTION

Fixtures are machined in our factory from 6063-H32 high purity aluminum extrusions. Specular primary optical reflectors provide high efficiency illumination. Stainless steel hardware with galvanized steel brackets to resist corrosion. Machined conduit clearance slots are 1.125" wide and are offered in a variety of patterns.

STANDARD FINISHES

-Matt White -Matt Black -Platinum Silver

Spectrum Lighting CK0407SQXT Ceiling Mount Light
Matt White
Spectrum Lighting CK0407SQXT Ceiling Mount Light
Matt Black
Spectrum Lighting CK0407SQXT Ceiling Mount Light
Platinum Silver

DIMMING PROTOCOL

-0-10 V -ELV -MLV

CCT

-2700 K -3000 K -3500 K -4000 K

CHARACTERISTICS

- Multi-stage Polyester Powder-coat Finish
- Xicato Led Module
- High Purity Aluminum
- Suitable For Dry Or Damp Locations

PRODUCTION

Made in USA

CERTIFICATION

- BAA compliant.
- ETL certified to meet US and Canadian standards, manufactured and tested to UL standards No. 1598/8750

CODE COMPLIANCE

BAA compliant. ETL certified to meet US and Canadian standards. Suitable for dry or damp locations. Manufactured and tested to UL standards No. 1598/8750.

TECHNICAL DRAWING

Spectrum Lighting CK0407SQXT Ceiling Mount Light

FINISH

Multi-stage polyester powder-coat process applied on our dedicated paint lines. See mounting and color pages for standard finishes. All exposed materials are chromate pretreated to resist corrosion. Cylinder housing and trim are same finish.

MOUNTING TYPES

Spectrum Lighting CK0407SQXT Ceiling Mount Light
CS1 (1x Conduit Feed)
Spectrum Lighting CK0407SQXT Ceiling Mount Light
CS2 (2x Conduit Feed, Straight)
Spectrum Lighting CK0407SQXT Ceiling Mount Light
CS3 (3x Conduit Feed, 90° Corner)
Spectrum Lighting CK0407SQXT Ceiling Mount Light
CS4 (4x Conduit Feed, T Pattern)
Spectrum Lighting CK0407SQXT Ceiling Mount Light
CS5 (5x Conduit Feed, X Pattern)
