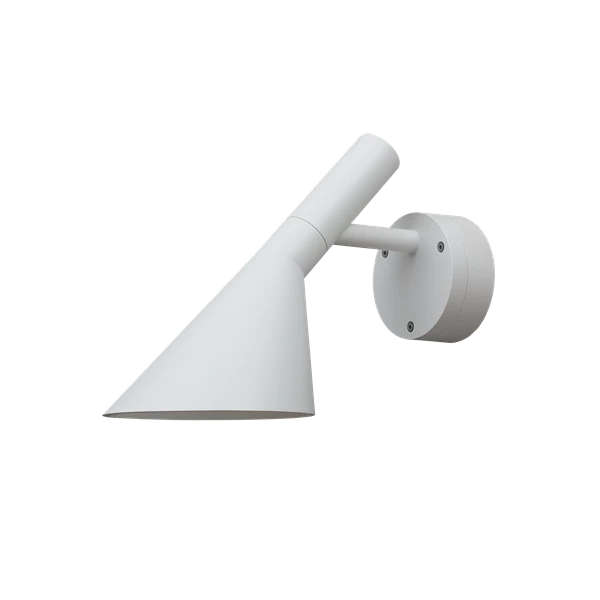

Louis Poulsen AJ 50 Wall
AJ 50 Wall LED LIGHT
AJ 50 WALL LED LIGHT
Arne Jacobsen
The fixture emits downward directed light. The shade is painted white on the inside to ensure a soft comfortable light distribution.
For LED replacement kit please do contact Louis Poulsen. The innovation of the LED technology is constant. The specifications mentioned are based on present technology.
Compatible with leading edge mains dimmers. Please note that low power consumption on some products can affect dimming properties.
DESIGNER
ARNE JACOBSEN
Arne Jacobsen was born and raised in Copenhagen. In 1927, he graduated as an architect from the Royal Danish Academy of Fine Arts in Copenhagen. After graduating, he obtained his first job at the office of the City Architect of Copenhagen launching his own office only two years later. After graduating, he obtained his first job at the office of the City Architect of Copenhagen launching his own office only two years later.
Among his more famous projects are the National Bank in Copenhagen (1971), SAS Royal Hotel & Terminal, Copenhagen (1960), and St. Catherine’s College in Oxford, UK (1963). It is said that his fear of flying inhibited him from making a full impact on the American Architectural environment.
As an architect, Arne Jacobsen had very strong decision making skills, making it possible for him to influence not only the design of the building itself, but the majority of the details. Over the years, he ventured into various fields related to his work, such as light fixtures, furniture, cutlery, door handles, sanitary fixtures, fabrics, and wallpaper patterns. "The Egg" and "The Swan" are two famous chairs designed by Jacobsen.
During Arne Jacobsen’s lifetime, he received several prestigious awards both at home and abroad. He became a professor at the Royal Danish Academy for 11 years and through that he influenced an entire generation of Danish Architects. Each eventually developed their own architectural language, built upon the same rationalistic and minimalist approach toward architecture.
INFORMATION
PRODUCT TYPE
Wall Led Light
LIGHT SOURCE
Light source LED 3000K 7.6W
ENVIRONMENTAL PRODUCT SPECIFICATION
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.
CLASS
-Ingress protection IP65. Electric shockM -Protection I w. ground. IK06.
FINISH
-White -Black or aluminium coloured with textured surface
-Powder coated.
KELVIN
3000
CRI
90
MATERIALS
- Shade : Die cast aluminium.
- Wall Bo x: Die cast aluminium.
- Arm : Die cast aluminium.
SDCM
3
LUMEN
428
LIGHT DESCRIPTION
The fixture emits downward directed light. The shade is painted white on the inside to ensure a soft comfortable light distribution.
WATT
7.6
POWER FACTOR
0.99 / P = 100 % / P = 50 %
IP CLASS
65
IK CLASS
06
SPECIFICATION NOTICE
-AJ 50 Wall has a LED light source that can be connected directly to the main power supply -All LED efficiency information are measured as system power.
BUG RATING
B0 U0 G0
EFFICACY
56
MOUNTING
-Terminal Block: 1x3x2.5mm². -Cable entries : 2x Bottom + 3x rear entries for Ø 10-14.5mm cable. Looping: Approved, max. 3x1,5mm².
CHARACTERISTICS
-100% glare light-Symmetric light distribution -Fixture illuminates itself and its surroundings
DIMENSIONS
- Width : 349 mm
- Height : 248 mm
- Length : 160 Max
- Weight : 2.0 kg
COLORS
Texture
Texture
NET WEIGHT
1.9
L80B50 (HOURS)
>50.000
LIGHT DISTRIBUTION DIAGRAMS
