Louis Poulsen Ph 3/2 Academy Pendant Light

PH 3/2 ACADEMY PENDANT LIGHT

PH 3/2 ACADEMY PENDANT LIGHT

Designed By Poul Henningsen

The three lights on the fixture are designed based on the principle of a reflective threeshade system which directs the majority of the light downwards.

Louis Poulsen Ph 3/2 Academy Pendant Light

The shades are made of mouth-blown opal three-layer glass, which is glossy on the top and sandblasted matt on the inside, giving a soft and diffused light distribution.

INFORMATION

UGR TRANSVERSAL / AXIAL

12.2/12.2

LIGHT SOURCE

3x40W 3x40W E14

IP CLASS

20

Louis Poulsen Ph 3/2 Academy Pendant Light

NET WEIGHT

6.5 kg

CLASS

II

COLOR

High lustre chrome plated

FINISH

High lustre chrome plated. White opal glass.

MOUNTING

- Suspension type : Cable 2x0,75mm².
- Canopy : Yes. Cable length: 4m.

MATERIALS

- Shades : Mouth-blown white opal glass.
- Frame : High lustre chrome plated, extruded brass.
- Suspension : High lustre chrome plated, extruded brass.

CABLE TYPE

Blk Tex

VARIANT

5741084869

SPECIFICATION NOTES

The innovation of light sources is ongoing. Consequently we only inform about the max. wattages. On www.louispoulsen.com we update a list of recommendable light sources.

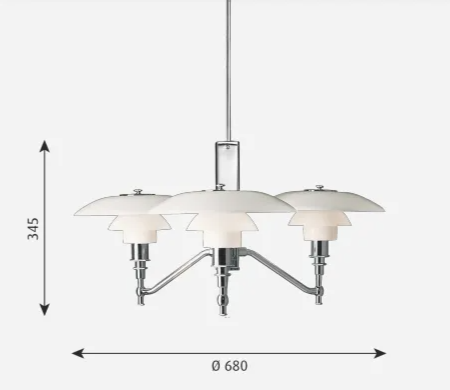

DIMENSIONS

- Width : 680 mm
- Height : 345 mm
- Length : 680 mm

Louis Poulsen Ph 3/2 Academy Pendant Light

LIGHT DISTRIBUTION DIAGRAMS

Louis Poulsen Ph 3/2 Academy Pendant Light
Polar
Louis Poulsen Ph 3/2 Academy Pendant Light
Isolux
Louis Poulsen Ph 3/2 Academy Pendant Light
Cartesian
