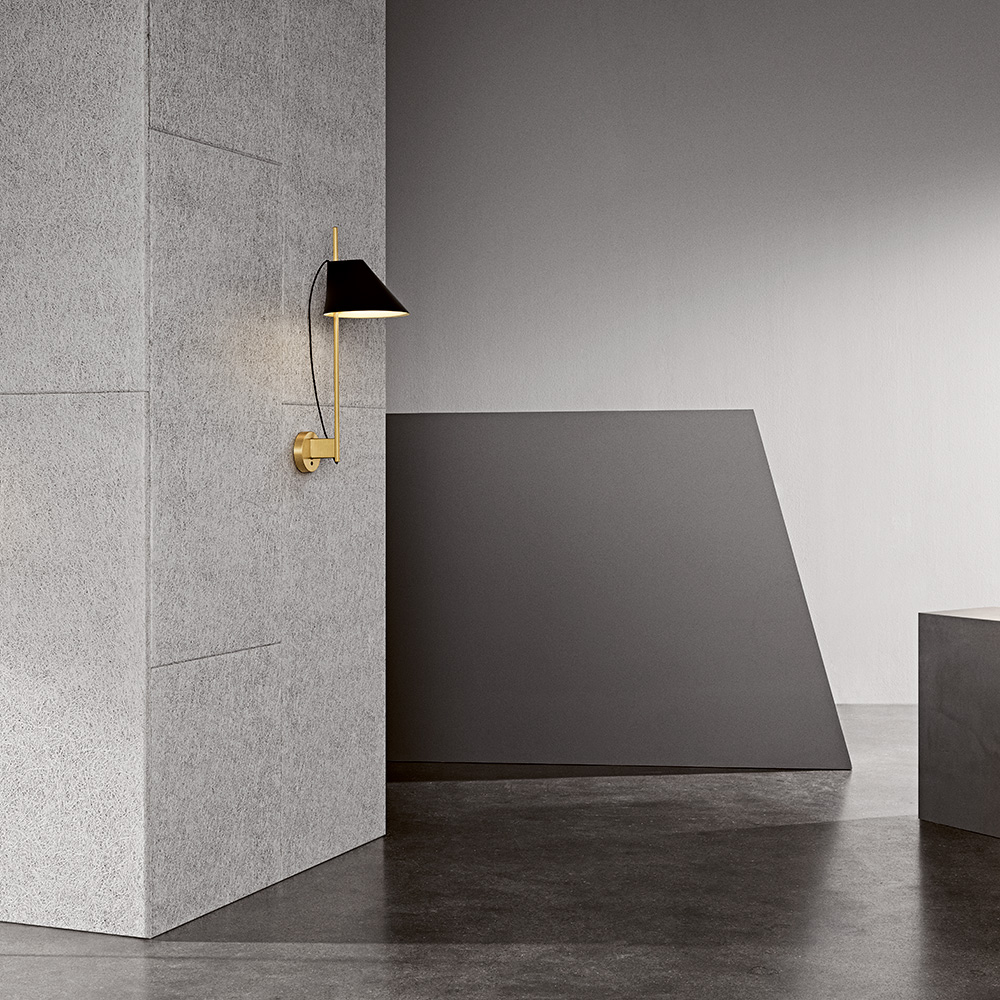

Louis Poulsen Yuh Wall Light
YUH WALL LIGHT
YUH WALL LIGHT
Designed by GamFratesi
The fixture primarily provides glare-free downward directed light. The angle of the shade can be adjusted to optimize light distribution. A slim opening in the top of the shade provides soft, ambient upward illumination.
A mechanical system provides great freedom of movement, so the light can always be set in the ideal position in the workspace, living room etc.
Build-in LED technology provides a high quality of light with stepless dimming at 15 to 100%. Timer function to automatically turn off the light after amount of time, selectable between off/4 hours/8 hours. Function to set a fixed light level each time the lamp is connected to main power. The switch and dimmer button is placed on the wall box.
DESIGNER
STINE GAM AND ENRICO FRATESI
GamFratesi’s design take their creative drive from a fusion of tradition and innovation in an experimental approach to their chosen materials and techniques.
Each with their own traditional background, Stine Gam and Enrico Fratesi draw on classic Danish furniture and craftsmanship as well as a classic Italian intellectual and conceptual approach.Understanding a tradition and addressing it actively in the workshop makes it possible to expand on it.
From this cross-cultural substrate they create design that respectfully reflects tradition while also featuring unique embedded stories, symbols and associations, often expressed through minimalism. GamFratesi was founded in 2006 by Danish architect Stine Gam and Italian architect Enrico Fratesi.They met at the Department of Architecture at the University of Ferrara in Northern Italy in 2004 and have since studied together at the Aarhus School of Architecture in Denmark. GamFratesi have a studio in Copenhagen
INFORMATION
APPLICATIONS
- Residential
- Hotel
- Cultural
- Educational
- Retail
BRAND
Louis Poulsen
COLLECTION
Yuh
PRODUCT TYPE
Wall Light
DOWNLOAD
↓ Light Source Overview
USE
Artificial lighting
WEIGHT
Max 2.2 kg
CERTIFICATION
Ingress protection IP20. Electric shock protection II w/o ground
LIGHT SOURCE
- Light source LED 2700K 10W
- Lumen: 446
CHARACTERISTICS
- Personal lamp that rotates
- Rises and drops
- Illuminating and creating ambience in the required area
FINISH
White or black. Matt wet painted. Brass versions: White or black shade. Matt wet painted. Clear lacquered, brushed brass stem and wall box.
PRODUCTION
Made in Denmark
CLASS
Ingress protection IP20. Electric shock protection II w/o ground.
MOUNTING
-Cable type: Plastic cord and Cable length: 2,5m. -Stepless dim between 15 and 100%.
-Timer function: 4 hours/8 hours.
-Light control: Switch on the wall box. -LED Driver: integrated in the wall box.
DIMENSIONS
- Width : 296 mm
- Height : 626 mm
- Length : 296 mm
COLORS
-Brass Black -Black -Brass White -White
DETAILS
A single push button located at the lamp will control the functions on/off and dimming. Turn on/off the light with light fading in/out. Stepless dim of the light to a suitable level between 15 and 100%. Timer function to automatically turn off the light after amount of time, selectable between off/4 hours/8 hours. Function to set a fixed light level each time the lamp is connected to main power.
LED driver integrated in wall box. For LED replacement kit please contact Louis Poulsen. The innovation of the LED technology is constant. The specifications mentioned are based on present technology.
THE STORY BEHIND THE PRODUCT
The Danish-Italian design duo GamFratesi designed Yuh for Louis Poulsen in 2017. Initially launched in black and white, the family was extended with editions featuring brass and marble. One of the essential features of the lamp is to be personal. The light is flexible and taking up little space. It can rotate, rise and lower, illuminating and creating ambience in the desired area.
The form of the shade is determined geometrically from the movement that the it performs on the stem. A minimalistic appearance created from a circular shape at the bottom to a linear opening at the top of the shade. The name Yuh is the phonetic form of ‘you’, the letters representing the sound made by the voice to say “you”.
