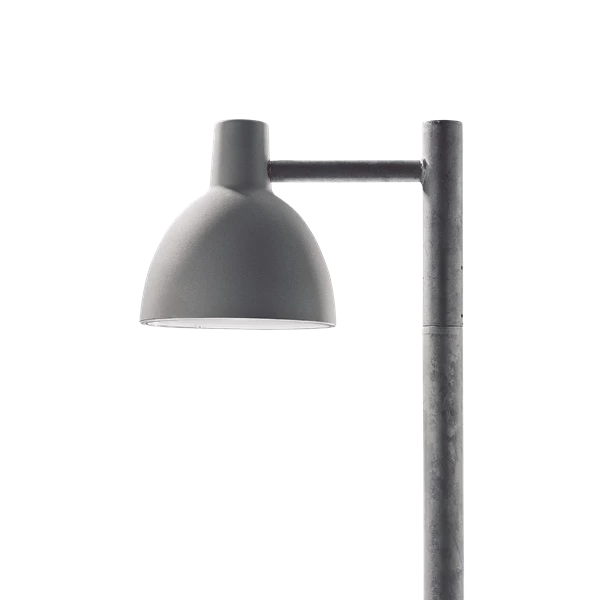

Louis Poulsen Toldbod 290 Street Light

TOLDBOD 290 STREET LIGHT

Louis Poulsen Toldbod 290 Street Light

TOLDBOD 290 STREET LIGHT

Desgined by Louis Poulsen A/S

The light is directed 100% downwards and the shade has a matt white painted interior emitting a soft, diffused, comfortable light.

Louis Poulsen Toldbod 290 Street Light

INFORMATION

MATERIAL

Fixture head: Die cast aluminium. Shield : Injection moulded clear polycarbonate. Pole top: Galvanized, steel.

BRAND

Louis Poulsen

PRODUCT TYPE

Street Light

LUMEN

- 1928
- 1988

ARM TYPE

- Painted
- Galvanized

Louis Poulsen Toldbod 290 Street Light

DIMENSIONS

- Height : 300 mm
- Width : 290 mm
- Length : 475 mm

Louis Poulsen Toldbod 290 Street Light

VARIANTS

All variants available with Zhaga socket for Smart City compatibility. Including CLO and night time dimming options. LED Upgrade Kit available for updating conventional variants to LED variants. Please contact Louis Poulsen for 2700K.

WEIGHT

10.7 kg

DESIGNER

Louis Poulsen A/S

FINISH

Aluminium coloured with textured surface or black with textured surface, powder coated.

Louis Poulsen Toldbod 290 Street Light
Black
Louis Poulsen Toldbod 290 Street Light
Aluminium

DESIGN TO SHAPE LIGHT

Louis Poulsen has always sought, not only to design lamps, but also to shape light and create an atmosphere that makes people feel good, both in- and outdoors. The shape of light creates space and our products should live harmoniously within the space they define - indirect, soft and inviting.

Louis Poulsen Toldbod 290 Street Light

SURFACE

Galvanised surfaces will oxidise and form a thin zinc-oxide layer on the surface over time. This can result in an inconsistent surface finish during oxidation. This process might have begun already during stocking/transportation. The formed zinc-oxide layer protects the galvanizing against additional corrosion.

ENVIRONMENTAL SPECIFICATION

This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.

MOUNTING

Pole dimension: Ø 48mm or Ø 60mm. Installation cable: 3,5m 2x1mm² (-DPC Cl.II), 3,5m 3x1mm² (-DPC Cl.I), 3,5m 4x1mm² (-DAC Cl.II), 3,5m 5x1mm² (-DAC Cl.I). Driver: In fixture head.

Louis Poulsen Toldbod 290 Street Light

LIGHT SOURCE

- Lumen : 1928
- Light source LED 3000K 20W

CLASS

Ingress protection IP65. Electric shock protection I w. ground, II w/o ground. IK08.

THE STORY BEHIND THE PRODUCT

Toldbod 290 Post was launched in 1982, with a design based on the PH Ellipse reflector. The fixture is very sturdy and discreet. The design is very precise, making the light suitable for a variety of architectural environments.

DETAIL

Fixture heads without pole are available for Ø 48mm or Ø 60mm poles. For fixture complete with Ø 60mm pole: choose ”for Ø 48mm pole” (pole stub); outer pole dimension is Ø 60mm. Please note that for the aluminium coloured version both the pole top, arm and the pole itself are galvanised.

LIGHT DISTRIBUTION DIAGRAMS

Louis Poulsen Toldbod 290 Street Light
Cartesian
Louis Poulsen Toldbod 290 Street Light
Isolux
Louis Poulsen Toldbod 290 Street Light
Polar
