Eurekalighting Berri-Square & Rectangle Light
BERRI-SQUARE & RECTANGLE LIGHT
BERRI-SQUARE & RECTANGLE LIGHT
Ceiling Suspended
Berri is a family of fixtures based on a combination of tubes and luminous spheres. Both unique and endless, the possible configurations can suit a wide range of functional and decorative applications.
INFORMATION
BRAND
Eurekalighting
PRODUCT TYPE
Track Light
COLOR RENDERING INDEX (CRI)
- 80 : 80+ CRI
- 90 : 90+ CRI
LOOP & GRIPPERS FINISH
- WHE : White Fine Texture
- BLKE : Black Fine Texture
- SGO : Soft Gold
POWER CORD FINISH
- WH : White Power Cord
- BLK : Black Power Cord
- CLR : Clear Power Cord
EMERGENCY BATTERY
EMB : Emergency Battery For Remote Box
CABLE
AC : Aircraft Mounting & Power Cord,Field Adjustable
LIGHT SOURCE
- LED : Regular Output
- LED.HO* : High Output
VOLTAGE
- 120V : 120 VOLT
- 277V : 277 VOLT
COLOR TEMPÉRATURE
- 27 : 2700K
- 30 : 3000K
- 35 : 3500K
- 40 : 4000K
COLLECTION
Berri
PRODUCTION
Made in Canada
COLORS
- Painted White
- Black
- Anodized Soft Gold
MOUNTING CABLE OPTION
-RC : Canopy With Aircraft Cable
-ROC : Canopy Offset To Aircraft Cable
CABLE LENGTH
- Custom Aircraft Cable Length
- 60 : 60" Aircraft Cable (Std Length)
ACCESSORY EMERGENCY BATTERY
3981EA : Electrical Box For Emb Emergency Battery
TUBE FINISH
-SGO : Soft Gold
-WHE : White Fine Texture
-BLKE : Black Fine Texture
-RAL : Please Specify Ral Code
FINISH
- White
- Black
TYPE OF LIGHTING
LED
ANGLED
Up to 60 degrees
CONTROL OPTIONS
Two LED strips are wrapped around a cylindrical heatsink for an even and powerful diffusion. Available in static and tunable white with different outputs to meet a wide variety of applications. Many control options are available.
MOUNTING OPTION
-RC3: Round Canopy / Pavillon Rond
-RC4 : Offset Slim Plate On Remote Jbox (2401a) Tunable White Screwless 1.87" Canopy (2475i)
USE
Decoration
MATERIAL
Aluminium
CONTROL OPTION
-DV : Dual 0-10v Dimming
-DP : Phase Dimming (120v Only)
-Nlight: Nlight Wired Control
-NLTAIR2 : Nlight Air Control Gen 2
INSTALLATION
Berri’s installation is very versatile and suitable for any space. Each tube can be adjusted around 360 degrees, allowing the luminaire to take many shapes and sizes. A unique loop gripper also increases modularity.Loops can be installed anywhere along the tubes, and grippers can be angled up to 60 degrees for any specific installations. Various canopy options are available. Aircraft and power cable lengths are adjustable on site.
STRUCTURE
Cylindrical aluminum tubes of various lengths, either straight or curved, are offered in three standard colours: painted white or black or anodized soft gold. Rotomolded spherical diffuser in LLDPE plastic.
DIMENSIONS

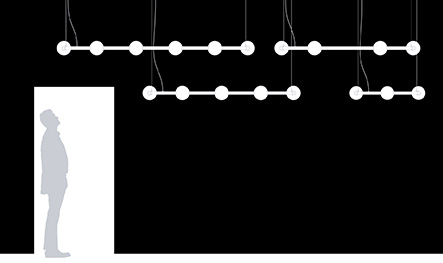

BERRI 74600-SQUARE & RECTANGLE
- Berri Rectangular 6 Heads
- Berri Square 04 Heads
- Berri Square 08 Heads
- Berri Square 12 Heads
- Berri Rectangle 10 Heads
DIMENSIONS 06
Berri Rectangular 6 Heads
DIMENSIONS R04
Berri Square 04 Heads
DIMENSIONS R08
Berri Square 08 Heads
DIMENSIONS R12
Berri Square 12 Heads
DIMENSIONS R10
Berri Rectangle 10 Heads
