Salice F70 Smove Drawer Runner
F70 SMOVE DRAWER RUNNER
F70 SMOVE DRAWER RUNNER
Full-extension
Its features and distinctive elements make F70 a complete runner, suitable to meet all needs

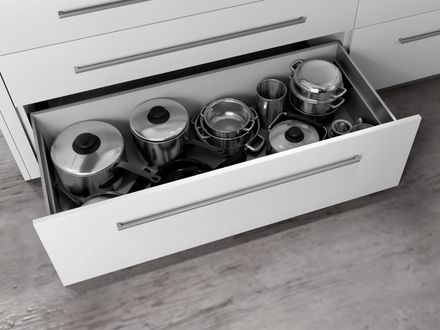

F70 is the new heavy-duty high-capacity drawer runner
All versions and lengths of F70 have an integrated rack system, which synchronizes the three sliding elements of the runner and guarantees excellent lateral stability and a perfectly silent sliding movement without the need for further components. F70 is equipped with direct and intuitive tool-free adjustment of side, depth, height and tilt of front panel.
In the Smove version, the F70 runner is equipped with a fully integrated soft close Vsystem that decelerates the closing action of the drawer
INFORMATION
BRAND
Salice
COLLECTION
F70 Smove
DRAWERS
Clip with pressed steel elements to fix the runner to the drawer
ADJUST
Tool free sideways adjustment +/- 1.5 mm, integrated into the clip
TOOL
Tool free tilt adjustment + 3 mm (optional, when the optional lever is fitted)
STROKE
SMOVE decelerated closing with 50 mm stroke
THICKNESS
Max. Drawer Side Thickness: 16 mm
FINISH
Bright Zinc-plated
EXTENSIONS
Full-extension with synchronised movement of the sliding elements to guarantee lateral stability and a perfectly silent sliding movement
RANGE
Available in the full range of lengths from 350 mm in 50 mm increments to 750 mm
DOWNLOADS
↓ Technical features
↓ Fixing clip
↓ Adjustments
↓ Accessories
↓ Drillings and fixings
COMPONENTS

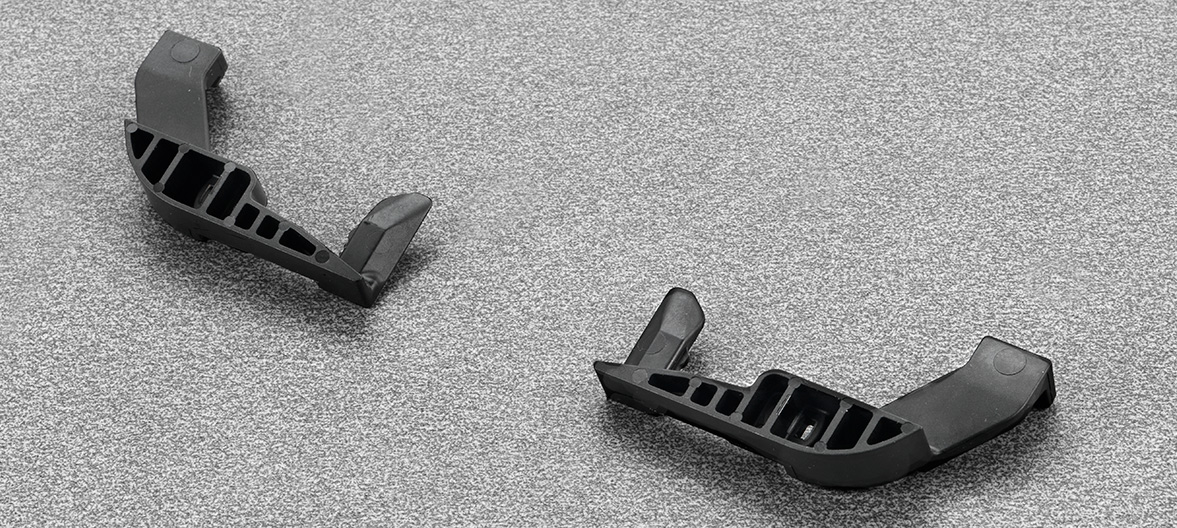

AFCGXX3B Right and left clip with integrated adjustments
- For all F70 runner versions
- Material: plastic and steel
- Integrated tool-free side and depth adjustments
- Recommended pre-drilling ø 2,5 mm
- Fixing to the bottom or to the frontal of the drawer
DIMENSIONS
- Tool free depth adjustment +/- 3 mm, integrated into the clip;
through the oval slot on the runner it is possible to obtain a further depth adjustment of +/- 4.5 mm
- Tool free height adjustment + 2.5 mm, integrated into the clip;
through the oval slot on the runner it is possible to obtain a further height adjustment of +/- 6 mm
VERSIONS
G7E6S350XXB
- Runner length: 350 mm
- Min. depth of the cabinet: 360 mm
G7E6S400XXB
- Runner length: 400 mm
- Min. depth of the cabinet: 410 mm
G7E6S450XXB
- Runner length: 450 mm
- Min. depth of the cabinet: 460 mm
G7E6S500XXB
- Runner length: 500 mm
- Min. depth of the cabinet: 510 mm
G7E6S550XXB
- Runner length: 550 mm
- Min. depth of the cabinet: 560 mm
G7E6S600XXB
- Runner length: 600 mm
- Min. depth of the cabinet: 610 mm
G7E6S650XXB
- Runner length: 650 mm
- Min. depth of the cabinet: 660 mm
G7E6S700XXB
- Runner length: 700 mm
- Min. depth of the cabinet: 710 mm
G7E6S750XXB
- Runner length: 750 mm
- Min. depth of the cabinet: 760 mm
ACCESSORIES

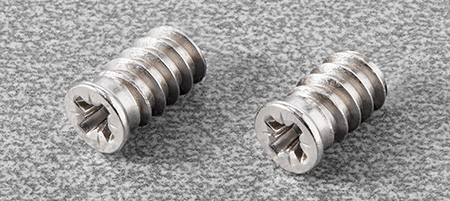

V136X114I
Euroscrews drilling ø 5 x 10 mm

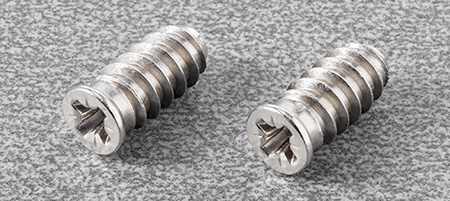

V136X154I
Euroscrews drilling ø 5 x 14 mm

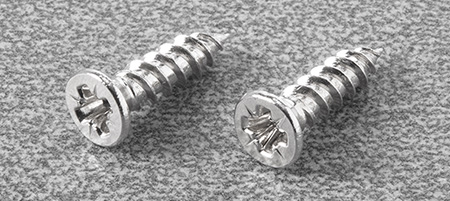

V234X164I
Wood screw ø 4 x 16 mm
AGLRXX3F
Lever for the tilt adjustment
SGD704UGXA
Drawers drilling templates
Template for the hole for the rear hook and the pre-drilling for the clips
