iGuzzini Twilight Copenhagen Urbaneco

TWILIGHT COPENHAGEN URBANECO STREET LIGHT

iGuzzini Twilight Copenhagen Urbaneco

TWILIGHT COPENHAGEN URBANECO STREET LIGHT

Circular and extremely compact design for urban lighting with low visual impact, high efficiency and intelligence.

OPTICAL EXCELLENCE

Light made to measure

Patented Opti Smart optics adapt to any required application: “made to measure” lenses modelled with free-form technology to define optimal geometries, thereby allowing maximum use of the luminous flux as and when needed.

iGuzzini Twilight Copenhagen Urbaneco
iGuzzini Twilight Copenhagen Urbaneco

A MULTITUDE OF OPTICS

Up to 14 tailor-made lighting combinations

Light modulation, with symmetrical, asymmetrical, elliptical, cycle and super comfort street optics. New distributions make it possible to light very wide streets, very narrow streets or car parks.

LIGHT MODULATION

 ST 1

Street Optic for intense vehicle traffic, urban and suburban areas.

iGuzzini Twilight Copenhagen Urbaneco

ST1.2

Street Optic for intense vehicle traffic, urban and suburban areas.

iGuzzini Twilight Copenhagen Urbaneco

ST1.5

Optic for residential streets.

iGuzzini Twilight Copenhagen Urbaneco

STCY0.5

Optic for residential streets and bicycle lanes.

iGuzzini Twilight Copenhagen Urbaneco

ST1U

Optics for residential streets and cycle paths, ideal for low heights.

iGuzzini Twilight Copenhagen Urbaneco

ST1.5U

Optics for residential streets and cycle paths, ideal for low heights.

iGuzzini Twilight Copenhagen Urbaneco

SMC

Symmetrical comfort optics for historic town centres and pedestrian areas.

iGuzzini Twilight Copenhagen Urbaneco

ELL

Elliptical optic for historic centres and pedestrian areas.

iGuzzini Twilight Copenhagen Urbaneco

STWRS

Spot optic for pendant installation for out-of-town traffic.

iGuzzini Twilight Copenhagen Urbaneco

STWRW

Optic for suspension installation for suburban vehicular traffic.

iGuzzini Twilight Copenhagen Urbaneco

A60

60°Asymmetric optic for parking areas and large open spaces.

iGuzzini Twilight Copenhagen Urbaneco

PS

Dedicated optics for car park lighting.

iGuzzini Twilight Copenhagen Urbaneco

STZR & STZI

Street optics for urban and suburban pedestrian crossings.

iGuzzini Twilight Copenhagen Urbaneco

STWT1 & STWT1.5

Street optics for heavy vehicle traffic, urban and suburban areas for wet roads.

iGuzzini Twilight Copenhagen Urbaneco

FEATURES

FROM THE APPLIANCE TO THE SMART CITY.

Modular light to meet urban needs.

From simple on/off control, which ensures a first level of urban efficiency, there comes stand-alone solutions, with automatic adjustment of the luminous flux based on the recognition of half of the night switch-on period up to management with a DALI solution, ensuring precise control of the luminaire and integration with Smart Lighting.

iGuzzini Twilight Copenhagen Urbaneco

MIDDLE OF THE NIGHT

The intelligent self-learning system included in the power supply, by following an algorithm, envisages recognition of half of the set operating period in accordance with the pre-set profile.

iGuzzini Twilight Copenhagen Urbaneco

CUSTOMIZATION OF THE ELECTRONICS

Programming can be performed using the NFC contactless system to facilitate and accelerate the activation phase.

iGuzzini Twilight Copenhagen Urbaneco

DALI BLE

The DALI power supply adjusts the luminous flux both with automatic systems and Bluetooth devices, via the BLE-DALI interface, thereby facilitating the programming and management stage on site. The WiFi bridge also makes remote management and the creation of schedulers possible.

iGuzzini Twilight Copenhagen Urbaneco

ZHAGA CONNECTION

Integration with the Zhaga connection connects the device to the urban context, hosting on top of and/or underneath other devices used for remote management or luminous flux regulation based on sensors.

iGuzzini Twilight Copenhagen Urbaneco

STAND ALONE - IDEAL IN RESIDENTIAL AREAS

Movement sensors, in the lower Zhaga connection, allow the luminous flux to be regulated up to the defined level, based on the presence of people.

iGuzzini Twilight Copenhagen Urbaneco

INTER-CONNECTED SYSTEM - IDEAL FOR URBAN & RESIDENTIAL SETTINGS

The movement sensor, in the lower Zhaga connection, adjusts the luminous flux up to the defined level, while a controller in the upper Zhaga connection communicates the information to the next poles.

iGuzzini Twilight Copenhagen Urbaneco

CLOUD CONNECTED SYSTEM - IDEAL IN SMART CITIES

By integrating a gateway into the pole or cabinet, all the data detailing the interconnected system can be sent to the Cloud for remote processing of statistics and managing the system, as well as sending an alert in the event of malfunctions.

iGuzzini Twilight Copenhagen Urbaneco

ICMS INTEGRATION - IDEAL FOR SMART CITIES

The lighting system can also be connected to the City Management System, via API (Application Programming Interface), thereby allowing all the systems to the smart city setup to be managed with a single city control system (e.g. irrigation, traffic, pollution, etc. ...)

RELIABILITY OVER TIME

Guaranteed performance even at extreme temperatures.

The production process follows eco-design values. The high quality materials and components used have been carefully researched to ensure longlasting reliability. The pretreatment and painting processes contain no chemical elements that are hazardous for the environment, and they boast the most highly advanced technology available. (IK08, IP66 Shock resistant and fully protected against dust and waves.)

iGuzzini Twilight Copenhagen Urbaneco

WEATHER PROTECTION.

Totally protected against dust and waves on open seas, IP66. Surface pre-treatment in two stages: one with fluorine-zircon coating and the other involving deposition of nano-technological polymers to increase resistance to corrosion and atmospheric agents. -Aluminium -Fluorine-zircon -Nano-technology Polymer -Primer -Liquid Paint

iGuzzini Twilight Copenhagen Urbaneco

DESIGNED TO BE SUSTAINABLE.

Efficiency and recycling

90% of a luminaire's environmental impact arises from using it: consequently, this is where the greatest potential for cost savings and environmental protection can be found.

SIMPLICITY AND SAFETY

The optical compartment and component compartment are separate, so as not to affect the performance of the LED. Twilight Copenhagen is supplied with an output cable to ensure simple installation without the need to open the product for wiring and safety.

iGuzzini Twilight Copenhagen Urbaneco

INFORMATION

USE

Urban lighting system

APPLICATION

Outdoor

GUARANTEE

5-year warranty

iGuzzini Twilight Copenhagen Urbaneco

MATERIAL

Using circular materials such as Aluminium, Wood and Paper.

EASY DISASSEMBLY

Designing easy end of life easy disassembly.

EVOLVING AND EXTENDING URBAN LIGHTING - 2200K

In addition to 2700K, 3000K and 4000K colour temperatures, Twilight Copenhagen offers a new warm white colour temperature that adapts to architectural colour schemes and restores the warmth of traditional lamps.

CHARACTERISTICS

-Compact Design -Opti Smart Lenses Technology -Up To Six Optics Available -High Performance -Sustainable System Management

iGuzzini Twilight Copenhagen Urbaneco
iGuzzini Twilight Copenhagen Urbaneco

SUSTAINABLE FORESTRY

By only selecting wood and paper from sustainable forestry.

RENEWABLE SOURCES

Using more than 52% of energy from renewable sources.

URBAN INTEGRATION

Functional versatility and aesthetic integration

The best light is the light you get just before sunset, in that magical moment called twilight. Twilight prolongs this good light in the places where it is nice to walk, in the parks and streets of our neighbourhoods, making public space the essential place of urban sociality.

DETAILS

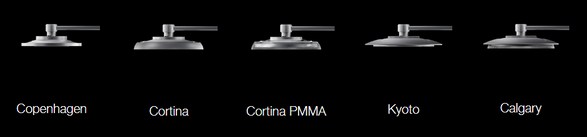

Twilight Copenhagen extends its collection with three new "hat" aesthetics with different shapes and materials. We have also extended the range of multiple optics for tailor-made urban lighting.

iGuzzini Twilight Copenhagen Urbaneco

INTELLIGENCE

Intelligence becomes urban sustainability with the Zhaga connection that transforms the street device into a node of a digital network, an active element in the smart city, optimising management and consumption.

FORMAT

-Pole-top -Span-wire

RECYCLED

Aluminium 94%

FEATURES

- Employs high-performance, long-life and reliable LEDs and drivers.
- Innovative optics that achieve very high efficiency values.
- Uniformity at large distances and therefore high system efficiency.
- Additional energy savings with the use of control systems.
- Lastly, we also optimize the remaining 10% of the environmental impact using sustainable material and process solutions without compromising product performance

STREET EFFICACY

From the optics to the system

Individual efficiency plays an important role in the context of the system. We have developed optics that meet light distribution requirements in various urban settings to optimize efficiency and ensure visual comfort.

iGuzzini Twilight Copenhagen Urbaneco

The excellent distribution capacity of OptiSmart optics is evidenced by significantly higher inter-distance values than those normally calculated in urban lighting systems. This translates directly into economic and energy sustainability.

COLORS

iGuzzini Twilight Copenhagen Urbaneco
Grey Wood
iGuzzini Twilight Copenhagen Urbaneco
Grey
iGuzzini Twilight Copenhagen Urbaneco
Deep Grey
iGuzzini Twilight Copenhagen Urbaneco
Black
iGuzzini Twilight Copenhagen Urbaneco
Rust Brown
iGuzzini Twilight Copenhagen Urbaneco
White

TYPES

DISCOVER ALL TWILIGHT

Twilight can decline aesthetically and functionally, changing technologies, performance, functions, colours, finishes, shapes and inclinations. Twilight travels the world and stops there, in the ideal city, to shine with native light.

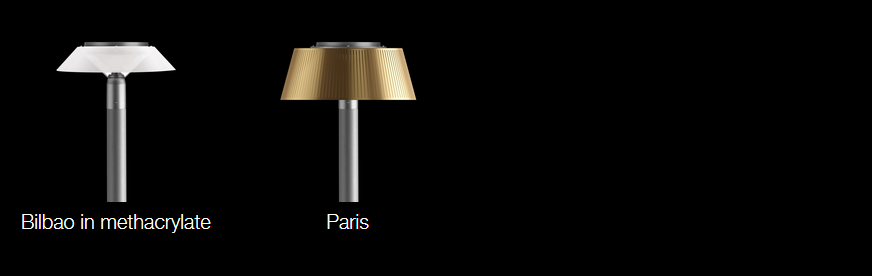

TWILIGHT COPENHAGEN POLE SYSTEMS

iGuzzini Twilight Copenhagen Urbaneco

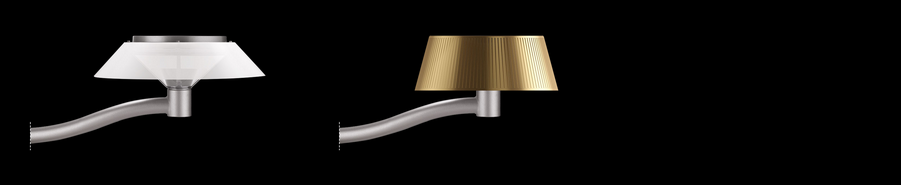

TWILIGHT COPENHAGEN SPAN-WIRE

iGuzzini Twilight Copenhagen Urbaneco

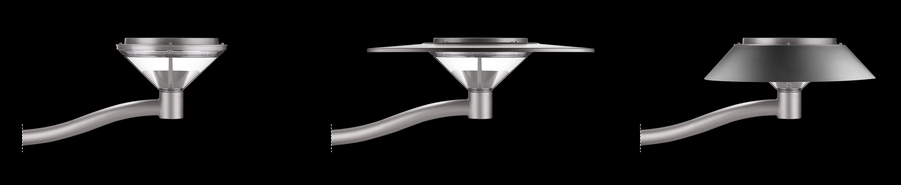

TWILIGHT COPENHAGEN WALL-MOUNTED SYSTEMS

iGuzzini Twilight Copenhagen Urbaneco

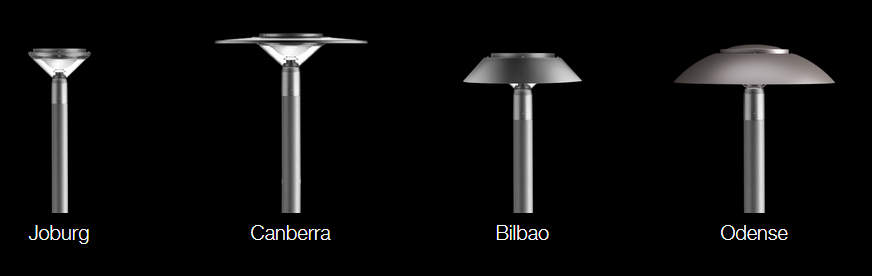

TWILIGHT POLE SYSTEMS

TWILIGHT WALL-MOUNTED SYSTEMS
