Luminis Clermont CT180-WM Street Light
CLERMONT CT180-WM STREET LIGHT
CLERMONT CT180-WM STREET LIGHT
Ceiling Surface, Pendant, Catenary, Wall Mount, Pole Mount & 4” Post Top
FEATURES
ICONIC BY DESIGN
Clermont’s soft, curved lines are clean, elegant, timeless. The classic, geometric form is shaped for design for a variety of mounting options across limitless applications.
VISUAL COMFORT OPTIC
Clermont’s optics create soft and comforting illumination. Its geometry optimizes the spread of light, acting as a reflector to evenly cast shadow-free light onto the curved interior surface.
INFORMATION
PRODUCT FAMILY
Clermont
WEIGHT
-Max. 27lbs
-Max. 12 kg
APPLICATIONS
Carrying the design aesthetic indoors, Clermont luminaires beckon everyone to come inside. Whether it’s a reception area, hotel lobby, education institution or office, Clermont has you covered.

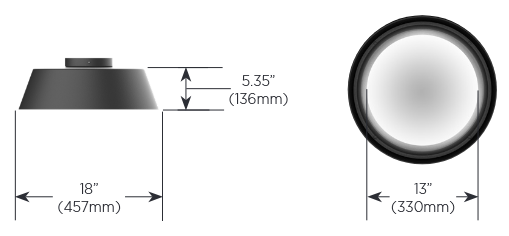

TECHNICAL DRAWING
FINISHES
Five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process, and oven cured for long term finish.
LIFE
000hrs L70B50 (based on LM-80 report for lumen maintenance)
CERTIFICATION
Certified and approved as per CSA C22.2 No.: 250.0 standard and ANSI/UL 1598 standard, for wet location. Rated IP65/IK10. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25ºC. Lumen depreciation in accordance with IESNA LM80 standards.
SOURCE
LED
LOCATION
Interior
ELECTRICAL
- Driver : Standard driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), operating temperature range of -40ºC to +55ºC -40ºF to +131ºF, output over voltage protection, output over current protection and output short circuit protection with auto-recovery. Optional 347/480V available.
- LED : Offered in 2700K, 3000K, 3500K & 4000K at 80CRI.
MATERIAL
-Clermont is made of aluminum diecast offering exceptional precision and durability. The main housing is sealed with durable gasket. -LED boards are hidden between coated polymer that diffuses and reflects the light at 96%. It is UV stabilized and antistatic, which does not attract dust. -The driver is preinstalled inside the main housing, sealed with gasket, and secured with four captive screws which makes it easy for maintenance.
MOUNTING
-Several mounting options are offered with this product: catenary, wall mount, ceiling mount, pendant, post-top and pole mount. -For SPG, STM, CK, WM mounting: The mounting plate is designed to fit on a 4” (102mm) octagonal electrical box using 3.5” (89mm) C/C mounting holes. -For PM mounting: designed to fit on 4” or 5” OD pole. -For PT mounting: designed to fit on 4” OD pole with 1/4” or 1/8” wall thickness. -For CAT3: see mounting details on page 3.
