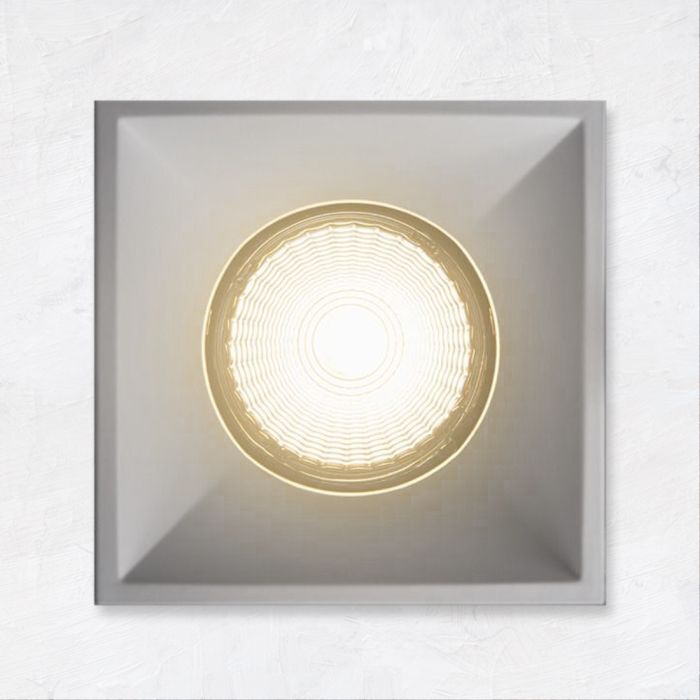

Alcon 14074-SF Illusione 4-Inch LED Square Fixed Recessed Light

ALCON 14074-SF ILLUSIONE LED LIGHT

ALCON 14074-SF ILLUSIONE 4-INCH LED SQUARE FIXED RECESSED LIGHT

The Illusione 4-Inch Architectural LED Trimless Flush Mount Recessed Light Fixture is designed for lasting durability and beauty while providing quality and energy efficient lighting for low to medium ceilings. The Illusione is an ideal solution for clear and bright lighting in retail, hospitality, commercial, and high-end residential settings.

Alcon 14074-SF Illusione 4-Inch LED Square Fixed Recessed Light

INFORMATION

SKU

14074-SF

LIGHT DIRECTION

Direct Downlight

WATTAGE

14 Watts

LEAD TIME

Built to Order : 1-2 Weeks

MANUFACTURER

Alcon Lighting

LUMEN OUTPUT

600 - 1199 Lumens

USE

Interior lighting

CRI

90+

VOLTAGE

- 120-277V
- 120V

PRODUCTION

Made In USA

MULTI-OPTIC

60° optics factory installed. 38° and 25° optics included.

FEATURES

- Emergency Backup Battery
- Wet-Location Rated

MOUNT TYPE

- Recessed Flanged
- Recessed Trimless

FINISHES

- BK Black
- BR Bronze
- BH Bhite
- SL Sliver

Alcon 14074-SF Illusione 4-Inch LED Square Fixed Recessed Light

LIFETIME

50,000 hours L70

PRODUCTION

Made In USA

REGULATIONS

- CUL
- CA Title-24
- Energy Star
- Assembled in the USA
- RoHS Compliant

TEMPERATURE

- 2700K - Warm White
- 3000K - Soft White
- 3500K - Neutral
- 4000K - Cool White
- 5000K - Day Light

BEAM SPREAD

- 25º
- 38°
- 60°

Alcon 14074-SF Illusione 4-Inch LED Square Fixed Recessed Light

HOUSING | DIMMABILITY

- IC Air-Tight | 120V (Triac/ELV)
- IC Air-Tight | Universal 120-277V (Triac/ELV/0-10V)
- Chicago Plenum | 120V (Triac/ELV)
- Chicago Plenum | Universal 120-277V (Triac/ELV/0-10V)

OPERATING TEMPERATURE

32˚F ~ 104˚F (0˚C ~ 40˚C) ambient temperature

MOUNTING

Reflector includes friction blades to mount securely in a trimless mud ring.

WARRANTY

5 years carefree for parts & components (labor not included)

TECHNICAL DRAWING

Alcon 14074-SF Illusione 4-Inch LED Square Fixed Recessed Light
Alcon 14074-SF Illusione 4-Inch LED Square Fixed Recessed Light

APPLICATIONS

Pendant Light

RETURN POLICY

- Assembled to Order.
- A 50% Restocking Fee May Apply.

CONSTRUCTION

- Heat-dissipating
- Die-cast Aluminum.

Alcon 14074-SF Illusione 4-Inch LED Square Fixed Recessed Light

DIMMING

120V Triac ELV dimming is standard. Optional 120-277V universal dimming system compatible with most 3-wire ELV, 2-wire incandescent and 5-wire 0-10V fluorescent dimmers available.
