Alcon Lighting Pavo Surface Mount Downlights
PAVO SURFACE MOUNT DOWNLIGHTs
PAVO SURFACE MOUNT DOWNLIGHTS

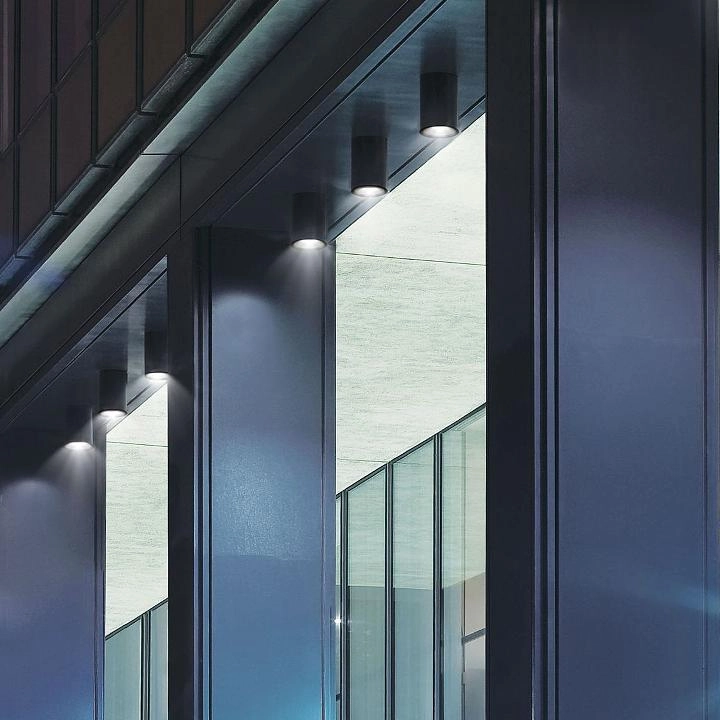

The 6" Pavo Turtle Friendly Architectural LED Surface Ceiling Mount Down Light is a versatile low glare lighting fixture that can be used indoor and outdoor in commercial or retail settings.
The Pavo LED Architectural Surface Mount Down Light is used to accent and create dramatic effects while providing a great source of lighting from above.
INFORMATION
EMERGENCY
90 minutes minimum remote test switch, plate cover, junction box included
REGULATIONS
Culus, Cetlus, Assembled In The Usa, Ip65, Lm80 Tested, Turtle Friendly
BRAND
Alcon
SKU
11224-TF-R
LENS
Round one-piece extruded aluminum with powder coat finish,clear tempered glass and silicone o-ring
MOUNTING
Includes bracket for installation directly to a 4" octagonal
electrical junction-box
MANUFACTURER
Alcon Lighting
WATTAGE
15 Watts
LONG
LED color is verified as 585nm minimum and 595nm maximum.
LISTING
Cetlus Listed, Culus, Suitable For Wet Location (Ip65). Assembled In Usa, Dark Sky Complaint, Turtle Safe
CONSTRUCTION
Tamper-resistant one-piece high-grade aluminum
extrusion, die-cast aluminum top plate.
REFLECTOR
Glare-free, one piece, heavy gauge aluminum
HEIGHT
4.75"
COLOR TEMPERATURE
590nm Amber
MOUNT TYPE
Surface
LIGHT DIRECTION
Direct Downlight
USE
- Interior
- Exterior Lighting
APPLICATIONS
- Retail
- Commercial
ROUND DIMENSIONS
- Height : 4.75"
- Depth : 5.69"
LEAD TIME
Built to order: 3-6 Weeks
RETURN POLICY
Assembled to Order. Non-Refundable.
VOLTAGE
- 120-277V
- 120V
SQUARE DIMENSIONS
- Height : 4.75"
- Depth : 5.9"
FEATURES
- Emergency Backup Battery
- Wet-Location Rated
SHAPE
- Square
- Round
COLORS
- Black
- White
SIZES
- Depth : 3.56"
- Height: 4.6"
WARRANTY
5 years carefree for parts & components (labor not included)
CERTIFICATION
Assembled In The Usa, Cetl Listed , Cul Listed, Ip65 Rated, Lm80 Tested, Suitable For Wet Locations
LOW
The product is designed for low to medium ceiling heights and delivered lumen output is sufficient to produce enough footcandles to satisfy building codes but not overpower the environment with excessive lumen output.
FINISH
- White
- Black
- Bronze
- Silver
CHARACTERISTICS
-Tamper Resistant -Dimmable, Low-glare -Emergency Battery Backup -Wet -Location Rated -High-grade Aluminum Extrusion -Die-cast Aluminum Top-plate -Lens: Round One-piece Extruded Aluminum With Powder Coat Finish -Clear Tempered Glass And Silicone O-ring
SHIELDED
The trim is deeply recessed and provides a minimum of 50° of glare cutoff. The trim reflector color is black to limit reflections. The beam spread is tightly controlled.
DIMMING
Non-Dimming Standard. Optional Universal dimming system available that works with most 3-wire ELV, 2-wire incandescent and 5-wire 0-10V fluorescent dimmers
