ALIGN PACE LIGHTS

ALIGN PACE LIGHTS

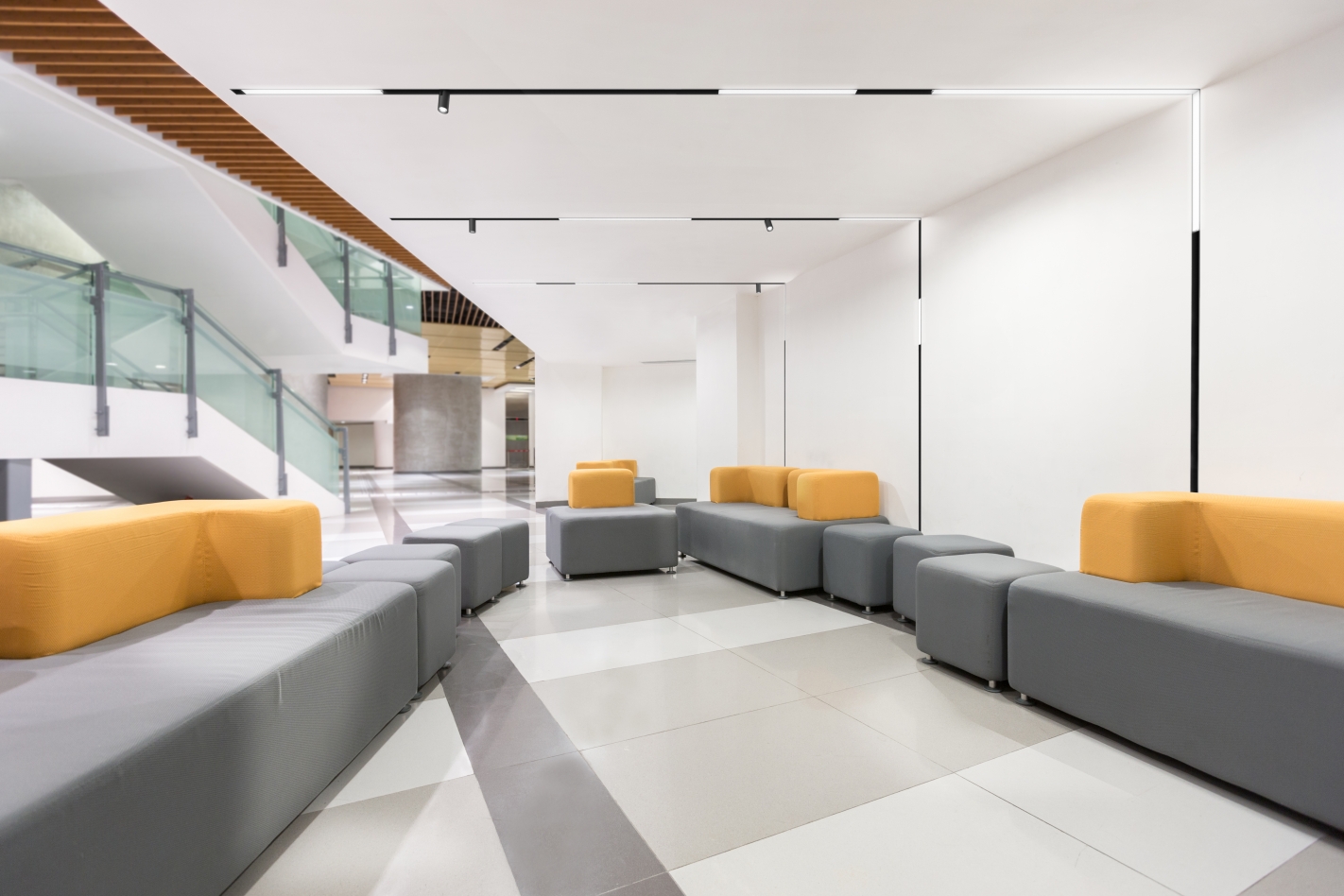

Pace is a 1 ft regressed module with 3 high performance lens options that is part of the Align, an easily specifiable and highly configurable lighting system designed to accommodate the changing needs of any space.

A-light Align Pace Lights
A-light Align Pace Lights

The magnetic modules come with multiple light and mounting options and, with tool-free installation and removal capabilities, the opportunity to create unique configurations are almost infinite.

Align comes with several control options: Choose from nLight® AIR or nLight® Wired lighting control solutions, wireless Casambi, or through standard 0-10V dimming with dual circuit.

A-light Align Pace Lights
A-light Align Pace Lights

Using nLight® AIR or nLight® Wired lighting control solutions allow the luminaires to digitally communicate with other nLight® enabled controls such as dimmers, switches, occupancy sensors, and photocontrols.Enhance any space with a simple, scalable, and connected lighting system that provides both energy savings and increased configurability.

INFORMATION

ALIGN COMES WITH SEVERAL CONTROL OPTIONS

Choose from nLight® AIR or nLight® Wired lighting control solutions, wireless Casambi, or through standard 0-10V dimming with dual circuit.

PRODUCT FAMILY

Align

APPLICATION

Dry location

FINISH

Deglossed black Polycarbonate finish

DISTRIBUTION

Symmetric

DIMENSIONS

12.4" x 1.47"

APPLICATIONS

- Corporate
- Commercial
- Institutional

OPTICS

Pace - Precise 0.5” baffled optics offer precise regressed lighting with a 22°,55° beam angle and A-light’s proprietary HE TechTM for a softer lambertian illumination.

USE

Interior lighting

CONTROLS

Nlight Enabled

MOUNTING TYPE

- Suspended
- Pattern
- Wall
- Ceiling
- Recessed

LED DRIVER

Standard 48V constant voltage universal 120-277V electronic driver provide power to DC to DC drivers that control the individual light sources Max Driver life of 50,000 hrs with ambient operating temperature range of -20°C to 70°C, maximum case temperature of 90°C. Electrical specifications at maximum driver load: PF >0.90, THD <2,0%, 92% Efficiency

LISTING

UL/CUL rated for Damp Locations. Tested in accordance with UL 1598 and certified to CEC/CSA C22.1, NEC, ANSI/NFPA 70, and NOM-001-SEDE.

LED LIGHT SOURCE

All LEDs in this system are Nichia® LED combined with a performance driven heat sink technology. Tested in accordance with LM79 and LM-80; L70>60,0000hr; operated at reduced output for high efficacy and lumen maintenance. 3000K, 3500K, and 4000K with 80+ CRI standard; other color temperatures and 90+ CRI available upon request, contact factory. LED color variation maintained at a 3-step MacAdam ellipse (SDCM 3x). LEDs are available in Standard, and High outputs. Refer to photometry for delivered lumens.

DIMMING CONTROLS

-0-10V - The DC to DC drivers in each direct modules and indirect segment provide standard 0-10V dimming. Each Direct module can be individually tuned to set max output using graded potentiometer on top of fixtures. -Wireless Casambi - Each module and indirect segment can be ordered Casambi ready. Any bluetooth enabled iOS or Android smartphone with the free Casambi app can control the dimming of one or multiple light sources wirelessly. -nLight® AIR - A simplified wireless lighting control solution that give users the ability to regulate devices on any handheld device. Using the CLARITY APP, you can pair and group devices as well as customize sensor settings. Dims system segments only. To individually dim modules, use wireless Casambi -nLight® WIRED - A collection of lighting control solutions that function wired together to adapt to a space’s lighting. With a collection of sensors and switches it is possible to adapt fixtures to any environment. Dims system segments only. To individually dim modules, use wireless Casambi
