Wilkhahn Swivel chair Modus Medium 27 range

SWIVEL CHAIR MODUS MEDIUM 27 RANGE

Wilkhahn Swivel chair Modus Medium 27 range

SWIVEL CHAIR MODUS MEDIUM 27 RANGE

27 range - Design: Klaus Franck, Werner Sauer and wiege, Fritz Frenkler, Justus Kolberg

What area says more about corporate culture than executive offices? Which is why prestige and constant values enjoy high priority in this case.

The Modus Medium range offers a wider seat and back, with the stirrup-shaped armrests to comply with executive demands: modern – but not fashionable, obvious – but not dominant, comfortable – but not over the top, high quality – but not extravagant.

And all that in first-rate ergonomic design that keeps both body and soul fit … In terms of contemporary management style, it has it all. A wide range of fabrics and leather, different frame surfaces and various types of upholstery to choose from, guarantee you can adapt the chairs to your own design requirements.

Wilkhahn Swivel chair Modus Medium 27 range
Wilkhahn Swivel chair Modus Medium 27 range

Despite all the various options, Modus Medium reflects the typical and distinctive features of the Modus family, ensuring a standardised, progressive image.

INFORMATION

BRAND

Wilkhahn

PRODUCT TYPE

Chair

DESIGNERS

- Klaus Franck
- Fritz Frenkler
- Justus Kolberg
- Werner Sauer and Wiege

CANTILEVER CHAIRS

Frame made of round steel tubing, bright chrome-plated, matt chrome-plated or coated, with anti-tilt stoppers as the standard version for carpeted floors; with additional glides for hard floors, with additional felt insert on request. The stackable version is only available as a bright chrome-plated model.

PROPERTIES

Certification

MATERIAL

Aluminium

SEAT

Seat shell in black, viscoelastic polypropylene. Cushioning: covered polyurethane one-piece moulded foam. Replaceable cover. Side facing: black polyamide for fabric cover and embossed leather in the same colour for leather cover

COUNTER STOOL

Star base from the ON 170 range, with additional height-adjustable, bright chrome-plated foot ring, with lock screw to affix it and twin wheel swivel castors with loaddependent braking.

FOUR-LEG VISITOR CHAIR

Legs made of aluminium oval tubing, bright chrome-plated, clear anodised or coated. Black polyamide glides as the standard version for carpets and in black polyurethane for hard floorings, with extra felt insert on request

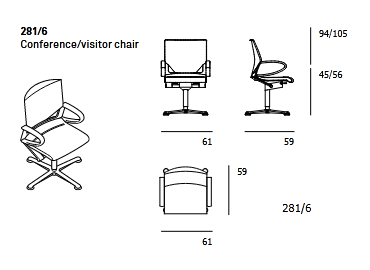

TECHNICAL DRAWINGS

27 Range

Models and Dimensions.

Wilkhahn Swivel chair Modus Medium 27 range
Wilkhahn Swivel chair Modus Medium 27 range
Wilkhahn Swivel chair Modus Medium 27 range
Wilkhahn Swivel chair Modus Medium 27 range
Wilkhahn Swivel chair Modus Medium 27 range

FUNCTION

Task chairs with backrest and automatic synchro-adjustment: the seat and backrest tilt adapt automatically to any posture the user adopts. When leaning back, the backrest tension increases proportionately. The person sitting on the chair can adjust the tension precisely. The chair can be locked in the front position by engaging a lever. DIN 4550 compliant gas lift for precision adjustment of the seating height. Conference / visitor chairs, swivel-mounted with automatic synchro-adjustment, but without front locking position, without any option to precision-adjust the height, also available in a four-leg version or as a cantilever chair, optionally stackable.

FRAME

Conference/visitor and task chairs Die-cast aluminium five-star base, coated, polished, or bright chrome-plated. Twin wheel swivel castors with load-dependent braking, made of black polyamide compliant with DIN EN 12529 as the standard version for carpets; with grey soft polyurethane tyre for hard floors. Castors optionally electrically conductive. Black polyamide glides as the standard version for carpeting, with polyurethane glides for hard flooring. Die-cast aluminium swing plates, coated in the same colour to match the star base, polished or bright chrome-plated. Blackcoated sheet steel mechanism shell.

BACKRESTS

Task and Visitor Chairs

Glass-fibre-reinforced black polyamide frame. Replaceable frame cover made of black polyamide closed-weave or transparent fabric. At the front, non-transparent material can optionally be covered and padded with cut foam.

Standard height and medium height backrest with crescent shaped grip, with a fabric cover, covered with black embossed leather, if with a leather cover to colour-match the leather. High backrest with curved shoulder support, in the case of fabric covers covered with black embossed leather, with leather colours to colour-match the leather. Backrests on task chairs 273, 274 and 275 optionally with integral, adjustable lumbar support (no possible for the version with transparent fabric).

FINISHES

FRAME SURFACES, STAR BASES AND SWIVEL ARMS

-Bright Chrome-plated -Polished Aluminium -Coated Black -In A Silver Satin Finish -Matt Chrome-plated Instead Of Polished Cantilever Chair

Wilkhahn Swivel chair Modus Medium 27 range

UPHOLSTERY MATERIAL

-54 Pitch -60 Blend -62 Bond -63 Auris -66 Lona -68 Kvadrat Remix 2 -69 Granit -74 Leather -87 Leather -91 Kvadrat Steelcut Trio 3

Wilkhahn Swivel chair Modus Medium 27 range
