LUMIQUAD LQ641 BOLLARD LIGHTS
LUMIQUAD LQ641 BOLLARD LIGHTS
Square bollards and columns offer a literally edgier look for today’s contemporary designs. Crisp, geometric lines meet industry-leading light output in Lumiquad.
Available with or without an acrylic diffuser, Lumiquad is designed to illuminate and accent exterior spaces such as pedestrian areas, commercial perimeters, parks and urban environments.
INFORMATION
BRAND
Luminis
PRODUCT TYPE
Bollard Lights
MATERIAL
Lumiquad column is made of 6061-T6 extruded aluminum alloy. All other parts are made of corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%.
LIFE
60,000hrs L70B50 (based on IESNA TM-21 Test Method and LM-80 data). Up to 70,000hrs L70B50 (calculated projection from LM-80 data).
FINISH
Five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process, and oven cured for long term finish.
PRODUCTION
Made in Canada
COLLECTION
Lumiquad
MOUNTING
Lumiquad column is designed for ease of access and installation. For overall heights of 96” (8FT) to 168” (14FT): The cast aluminum base plate is secured with a set of (4) 1/2”-13 x 18” lg. galvanized anchor bolts. For overall heights above 168” (14FT): The cast aluminum base plate is secured with a set of (4) 3/4”-10 x 18” lg. galvanized anchor bolts. Accessibility is done through a flush mount 2” x 4” (100mm x 178mm) hand hole cover plate.
SOURCE
LED
PRODUCT FAMILY
Lumiquad
DIMENSIONS
Height : 49 inch
CERTIFICATION
Certified and Approved as per CSA C22.2 No.: 250.0 standard and ANSI/UL 1598 standard, for wet location. Rated IP65. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25ºC. Lumen depreciation in accordance with IESNA LM80 standards.

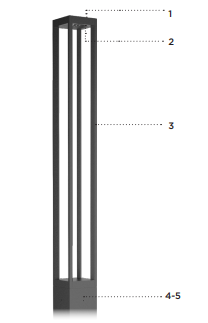

FEATURES
1- Cast aluminum top cover.
2- Optical system assembly.
3- 4x extruded aluminum struts.
4- Cast aluminum driver housing.
5- 6” (152mm) x 6” (152mm) extruded aluminum square body
USE
Exterior lighting
PRODUCT CODE
LQ641
ELECTRICAL
-Driver : Standard driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), operating temperatures of -40ºC/-40ºF to 55ºC/131ºF, output over voltage protection, output over current protection, output short circuit protection with auto-recovery.
-LED : 3000K/3500K/4000K CCT with 80 CRI. Optional true amber LED for turtle sensitive areas. Wavelengths: 585nm to 597nm.
COLORS
-WHT : Snow white
-BKT : Jet black
-BZT : Bronze MST Matte silver
-GRT : Titanium gray
-DGT : Gun metal
-CHT : Champagne
-SGT : Steel gray
-BGT : English cream
-RAL: RAL# color
LIGHT YOUR WAY
With a wide range of lumen outputs, different color temperature options and various accessories, Lumiquad enables the designer to illuminate or accent a space exactly how they want to.
-Lumen output : Ranging from 800 to 15,800 delivered lumens, Lumiquad products can be used for functional illumination purposes or as an aesthetic complement to an exterior space.
-Color temperature : Lumiquad has a standard 4000K CCT with 80CRI. 2700K, 3000K and 3500K CCT options are available for that warmer feel.
-Diffusers : Both bollards and columns in the Lumiquad family are available with or without acrylic diffusers. Choose a diffuser when requiring high illumination coverage, or select a non diffuser model for area lighting, which is dark sky friendly .
-Dress It Up : A variety of accessories are available including decorative shroud, blockout shield and glare control louvers, so light goes exactly where it’s needed.
DESCRIPTIVE INFORMATION
TYPICAL PHOTOMETRY SUMMARY DESCRIPTIVE INFORMATION-1
-LQ641-L1L50-R2
-Total Lms : 5137 Lumens
-Total Input Watts : 55.3 W
-Efficacy : 92.9 Lumens/Watt
-BUG : B2-U0-G2
-CCT/CRI : 4000K/80
-Maximum Candela : 3803 @ 55ºH/42.5ºV
TYPICAL PHOTOMETRY SUMMARY DESCRIPTIVE INFORMATION-2
-LQ641-L1L50-R5
-Total Lms : 5144 Lumens
-Total Input Watts : 69.1 W
-Efficacy : 74.4 Lumens/Watt BUG: B3-U0-G1
-CCT/CRI : 4000K/80
-Maximum Candela : 1738 @ 55ºH/47.5ºV
detaiL
BUILT TO LAST
Built to withstand demanding exterior environments Lumiquad is robust and durable. It is made with an aluminum construction and features integrated struts that act as a reinforcing cage. All models are IP65 rated with a lifetime of 60,000 hours.
TALL OR SHORT
Lumiquad is a family of 4” x 4” and 6” x 6” bollards and columns. With six bollards and seven column types, specifiers can mix and match products to suit any design challenge.

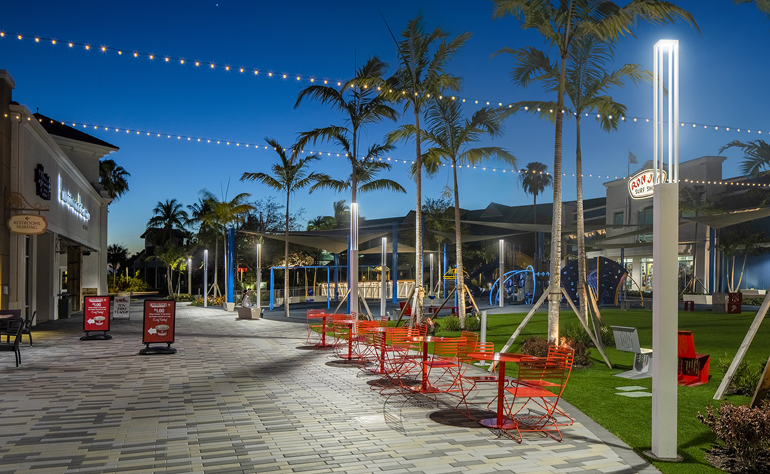

APPLICATIONS
Lumiquad is a family of 4” x 4” and 6” x 6” bollards and columns. With six bollards and seven column types, specifiers can mix and match products to suit any design challenge.
