Ketra LS0 Lightbar Slim Linear Light
LS0 LIGHTBAR SLIM LINEAR LIGHT
LS0 LIGHTBAR SLIM LINEAR LIGHT
Slim Profile, Full Power
Meet Lightbar Slim. It’s the stunning Ketra light you know and love, now in a slim, sleek, and fully integrated fixture.
FEATURES
HIGH DEF PALETTE
Covers a wide range of 16.7 million colors, including pastels, saturated colors and high CRI whites spanning from 1,400K to 10,000K.
COLOR LOCK
Maintains your desired color point at a one-step MacAdam Ellipse across all Ketra product families and over each product’s lifetime.
DYNAMIC SPECTRUM
Precisely tunes the amount of energy across the visible spectrum to produce Natural Light, Natural Dimming and Vibrancy.
TRUBEAM
TruBeam produces uniform color across any available
beam angle.
PRECISION SIZING
Designed to fit any space, Lightbar Slim can be ordered in standard lengths or custom designed in 1-inch segments— and can run up to 24 feet in length. The result? A modular system that fits wherever you need it.
SLEEK DESIGN

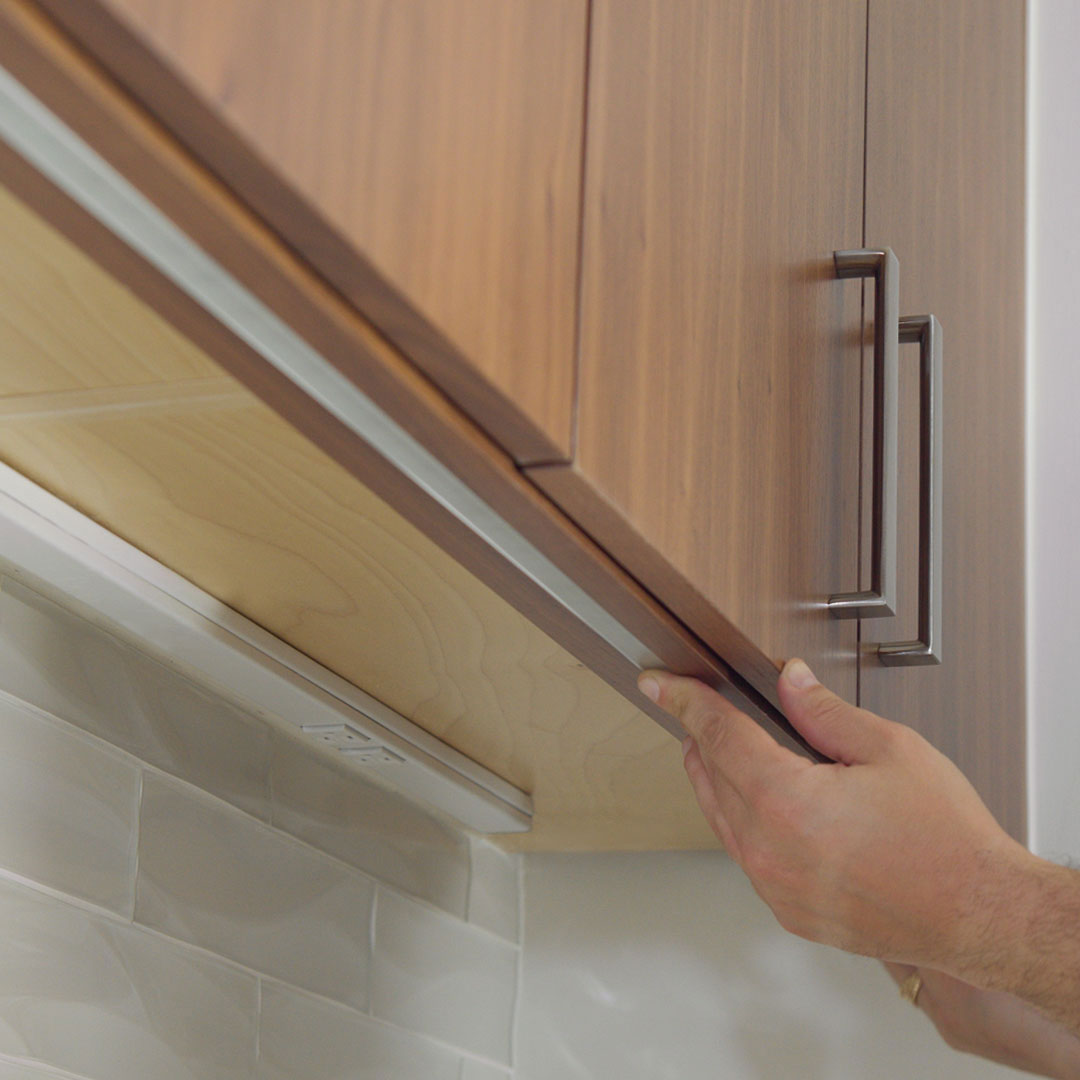

At just 0.625” wide, Lightbar Slim’s sleek design is compatible with the tiniest of spaces, from undercabinet to cove and beyond. A slim profile keeps the fixture invisible—but the quality of the light is undeniable.
INSTALL AND GO
Lightbar Slim pairs with the X96 power supply for easy installation, streamlined setup, and ultra-reliable wireless controls—so you spend less time configuring and more time creating.
INTUITIVE INTEGRATION
Lightbar Slim integrates seamlessly with Lutron’s HomeWorks system—putting convenience, customization, and control at your fingertips. Built on Clear Connect wireless, reliability is at its core.
INFORMATION
BRAND
Ketra
PRODUC TYPE
Linear Light
MOUNTING
Product shall be mounted using a screw-in bracket. The bracket shall be screwed into the mounting surface, and the luminaire will snap onto it. Bracket will not add to the overall width and height of the product.
MAX NUMBER OF SEGMENTS PER X96 POWER FEED
8 segments (Regardless Of Length)
POWER CONSUMPTION
- Uniform Lens : 5.45 W/ft
- High Output : 5.45 W/ft
- Long Run : 3.38 W/ft
USE
Interior Lighting
TYPE OF LIGHTING
LED
COLLECTION
LS0 Lightbar
APPLICATIONS
-Residential -Commercial
MAX LENGTH OF SEGMENTS PER X96 POWER FEED, REGARDLESS OF THE NUMBER OF SEGMENTS
- Uniform Lens : 15 ft (4.57 m)
- High Output : 15 ft (4.57 m)
- Long Run : 24 ft (7.32 m)
A SLEEK, MODULAR LINEAR LIGHTING SYSTEM
Suited for low-profile, linear lighting applications:
– Under cabinet and under shelf
– Media centers and bookcases
– Toe-kicks and small coves ·
Connect up to 24' of lighting in a single low-voltage feed
FINISH
MATERIAL
- Housing Material : Aluminum
- Lens Material : UL F1 outdoor rating for UV and water contact PMMA
CONNECT AS NEEDED
Order the appropriate endcap option for your installation:
– Straight end-to-end connector for linear runs
– Flexible connector for corners and angles · Field-wired jumper cables are available for bridging larger gaps.
OPTICAL PERFORMANCE
- CRI (Ra)** : >90 (R9>90) from 2,700K to 5,000K
- Lumen Maintenance2 : 50,000 hours to L70 @ 25 ̊C Ambient
- Color Point Maintenance2 : One-step MacAdam Ellipse over product lifetime
- Color Point Range : 1400K - 10000K, Pastel and Saturated colors
- Dimming Range : 0.1-100%
CHARACTERISTICS
- Slim Dimensions
- Customizable Lengths
- Integrated Controls
- Only Available In Usa
- Puerto Rico & Mexico Optical Performance
ENVIRONMENTAL
- Ambient Temperature : 0 to 40 ̊C (32 to 104 ̊F) (operating temp)
- Storage Temperature : -20 to 80 ̊C (-4 to 176 ̊F)
- Humidity : 0 - 95%, Non-condensing
- Certification : UL, cUL, RoHS, FCC Class B, Title 24 [JA8]
- Location : UL Damp Location, IP20, not for use in outdoor applications
DOWNLOADS
↓ LS0 Lightbar Slim Brochure
↓ LS0 Lightbar Slim Installation Guide
↓ LS0 Lightbar Slim High Output IES File
↓ LS0 Lightbar Slim Uniform Lens IES File
↓ LS0 Lightbar Slim Specification Sheet
↓ X96 Ketra Controller Installation Guide
↓ X96 Ketra Controller Specification Sheet
FIXTURE WEIGHT
0.22 lbs/ft (0.33 kg/m)
VOLTAGE
17-21 V
SYSTEM FLEXIBILITY
Choose the best style for your application:
| LUMINAIRE OPTIONS | LUMEN OUTPUT | DELIVERED OUTPUT | MAX. RUN LENGTH |
|---|---|---|---|
| Long Run | 200 lm/ft | 59 lm/W | 24 ft |
| Uniform Lens | 250 lm/ft | 45 lm/W | 15 ft |
| High Output | 350 lm/ft | 64 lm/W | 15 ft |
DIMENSIONS
- Segment Length : Minimum length of 10 in (0.25 m) Maximum length of 8 ft (2.44 m) Configurable lengths between max. length and min. length in 1 in (25.40 mm) increments
- Segment Width : 0.65 in (16.51 mm)
- Segment Height : 0.65 in (16.51 mm) High Output & Long Run, 1in (25.40 mm) Uniform Lens
