Quingenti Wall Absorbent

Quingenti wall ABSORBENT

Quingenti Wall Absorbent

QUINGENTI WALL  ABSORBENT

Design - Team Glimakra

Quingenti wall absorbents. The name Quingenti comes from the Latin word for 500. 500 mm is the common denominator for all variants. The relatively small panels with its beveled edge of 10 x 10 mm gives Quingenti its personality.

The fabric is nailed to the solid body with high quality and precision. With Quingenti you can give the room a lot of character and absorption surface and create unique patterns with different mounting options.

Quingenti Wall Absorbent
Quingenti Wall Absorbent

The large selection of standard fabrics provide almost unlimited opportunities to create beautiful and functional wall environments. The panels are easy to install using the panel click button connectors.

information

BODY

40 mm polyether (Oeko-Tex) glued on 8 mm MDF board (Nordic Ecolabel).

UPHOLSTERY

Upholstered with fabric nailed on the back

BRAND

Quingenti

COLLECTION

Wall

DESIGN

Team Glimakra

PRODUCTION

Made in Sweden

MATERIALS

100% recyclable materials.

Quingenti Wall Absorbent

FABRIC & PIPING

Look in Product sheet Fabric and piping.pdf for our standard fabrics,

INSTALLATION

Mounting with panel click button connectors.

OPTIONS

Installation: Alternative mounting with aluminum rails screwed to the wall.

Quingenti Wall Absorbent

CERTIFICATES

Acoustics: Measurements made in accordance with ISO 354:2003. Evaluation made according to standards for individual objects SS 25269:2013, 2015‑12‑26, and ISO 11654:1997. (Report 10171560.02, Date 2013‑01‑04, WSP Akustik)

INSTALLATION

The panels are easily mounted using panel click button connectors. 1. The panels are provided with a number of pre-drilled holes. Mount two female buttons per panel. Place the distance buttons on opposite sides. 2. Click the locator button on the female button. 3. Press the panel towards the wall to make a drillmark. Remove the locator button from the female button. 4. Mount the male button on the wall. 5. Press and click the panels on the wall one by one

DIMENSIONS

Thickness: 50 mm

-Circle -Square -Hexagon -Triangle -Rhomboid left -Rhombus -Rhomboid right

Quingenti Wall Absorbent
Quingenti Wall Absorbent
Quingenti Wall Absorbent

PANELS & PATTERNS

Quingenti has very high sound absorption and consists only of environmentally friendly materials. Six different geometries, with the common measure of 500 mm, gives endless possibilities. At least 13 standard patterns can be created depending on how the wall absorbents are rotated and combined. Panel click button connectors are used for hanging

Quingenti Wall Absorbent

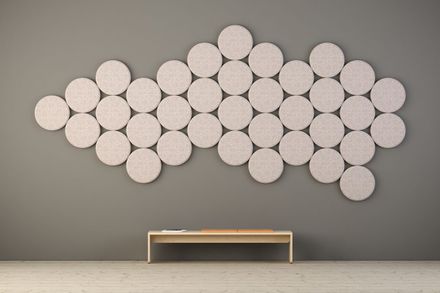

Circle
Quingenti Wall Absorbent
Triangle
Quingenti Wall Absorbent
Hexagon
Quingenti Wall Absorbent
Square
Quingenti Wall Absorbent
Rhombus
Quingenti Wall Absorbent
Rhomboid
